UNV  |  SKU: UVKIT-IP/17

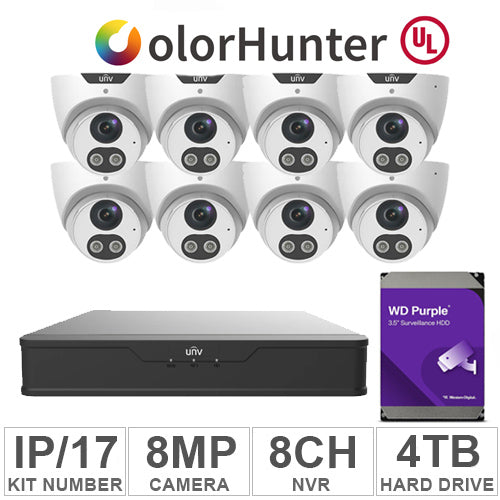

UNV KIT-IP/17 (8 Cameras IP 8MP + 1WD/4TB + 1-NVR/8CH)

MPN:

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

Log in Apply to Become a Dealer

Description
IPC3618SB-ADF28KMC-I0
  • High quality image with 8MP, 1/2.8"CMOS sensor
  • 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
  • Ultra 265, H.265, H.264, MJPEG
  • Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
  • Supports sound and light alarm linkage.When Smart intrusion prevention is triggered , the camera links sound alarm and light linkage.
  • People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
  • 120dB true WDR technology enables clear image in strong light scene
  • Support 9:16 Corridor Mode
  • Built-in Mic and Speaker
  • Smart IR, up to 30m (98ft) IR distance
  • Supports 256 G Micro SD card
  • IP67 protection

UVNVR301-8B-P8-IQ

  • Support Ultra 265/H.265/H.264 video formats
  • 4/8/16 channel input
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support HDMI and VGA simultaneous output
  • Up to 12 Megapixels resolution recording
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
WDHD4TBWDP
Capacity
4 TB
Cache Memory Installed Size
64 MB
Disk Speed (RPM)
5,400 rpm
Hard Disk Form Factor
3.5 in
Hardware Connectivity
SATA 6.0 Gb/s
Dimensions (L x W x H)
5.79" x 4" x 1.03"
Compatibility
WD Purple™ surveillance storage is built to handle up to 64 cameras per drive and is designed for 24/7, always on, high-definition surveillance security systems with more than eight bays.
Item Weight
0.99 lb
