Xantech DL85K LCD/CFL Dinky Link IR Receiver Kit
by Xantech
SKU XADL85K

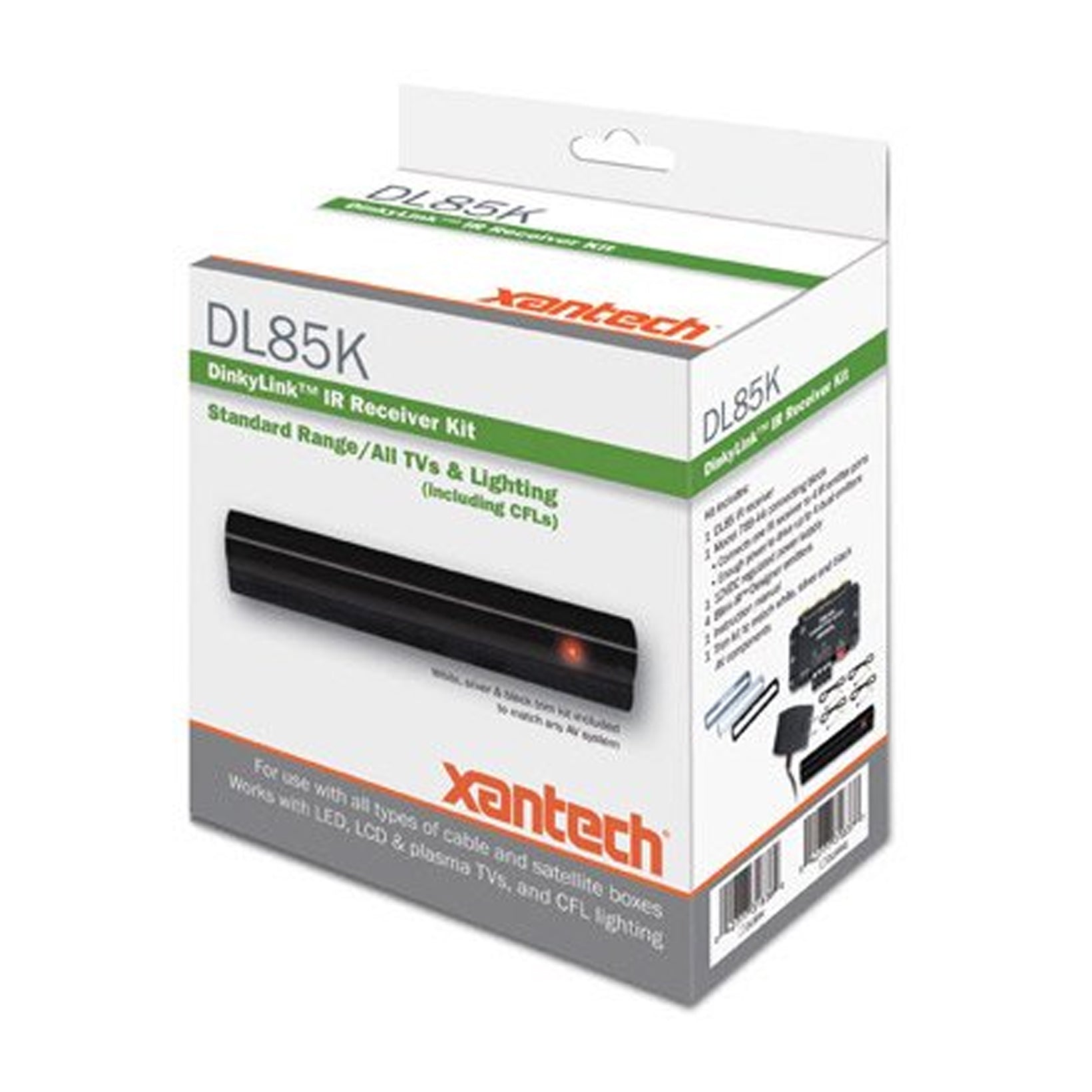

Xantech DL85K LCD/CFL Proof Dinky Link IR Receiver Kit
The DL85K has a surface-mount design and a standard range (up to 80 feet). It works with LED, LCD & plasma TV’s and CFL lighting. For use with all types of cable boxes, satellite boxes, remote controls and TVs. A white, silver & black trim kit included to match any AV system.
- Works with all types of cable boxes, satellite boxes, remotes and TVs
- Low profile—easy to hide
- Proprietary ambient noise-suppression technology for reliable operation in any lighting environment including compact fluorescents
- IR modulation frequency bandwidth: 25-60kHz
- Reception range: up to 80 ft/24 m*
- Color-coded connectors for fast, easy installation
- One DL85 IR receiver

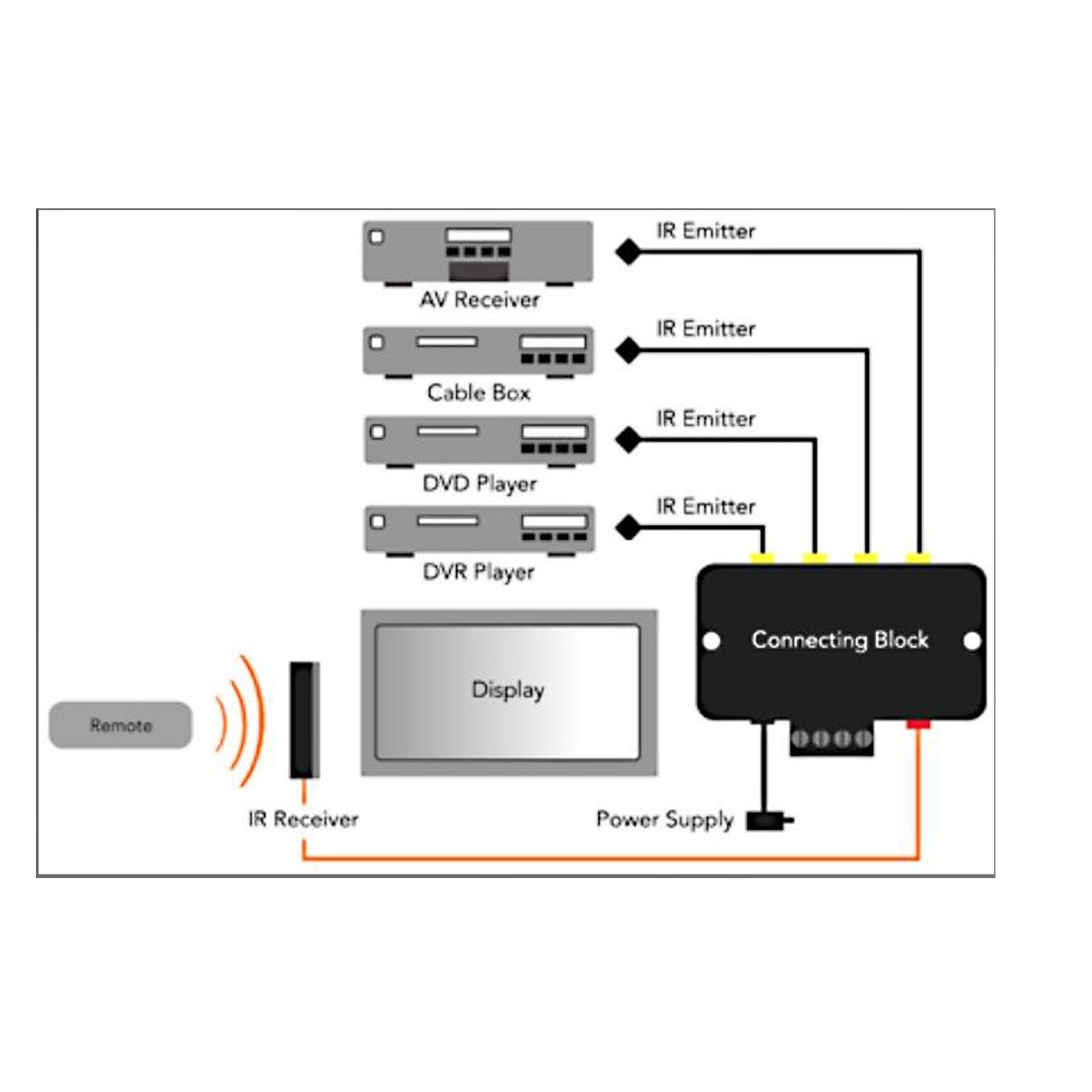

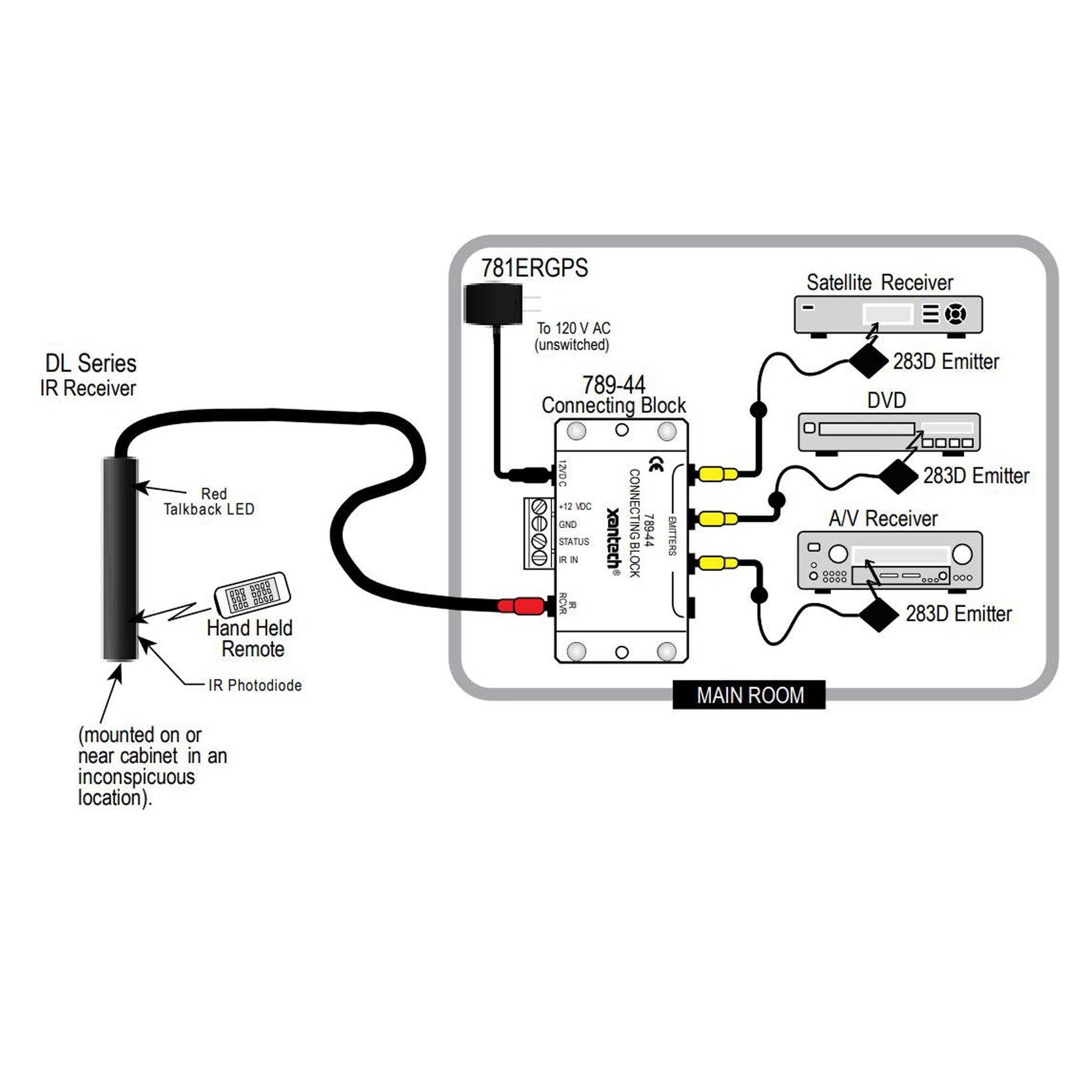

- One Model 789-44 connecting block that connects one IR receiver to 4 IR emitter ports and has enough power to drive up to 4 dual emitters
- One 12VDC regulated power supply
- 4 Blink-IR™ Designer emitters
- One Instruction manual
- One Trim kit to match white, silver and black AV components
| Weight | 0.85lb |
|---|---|
| Length | 5.7in |
| Width | 3.7in |
| Height | 6.2in |
| Infrared carrier frequency bandwidth | 30 - 60 kHz |
| Reception range | Up to 80 feet |
| Reception angle | +/- 60 degrees |
| Max. Transmission length | 1 mile using 18 gauge wire |
| Maximum current output | 100mA |
| Power requirements | +12VDC, 10mA |
