Xantech DL85K LCD/CFL Dinky Link IR Receiver Kit

by Xantech
SKU XADL85K
ID: 12961309884488




This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Xantech DL85K LCD/CFL Proof Dinky Link IR Receiver Kit

The DL85K has a surface-mount design and a standard range (up to 80 feet). It works with LED, LCD & plasma TV’s and CFL lighting. For use with all types of cable boxes, satellite boxes, remote controls and TVs. A white, silver & black trim kit included to match any AV system.

  • Works with all types of cable boxes, satellite boxes, remotes and TVs
  • Low profile—easy to hide
  • Proprietary ambient noise-suppression technology for reliable operation in any lighting environment including compact fluorescents
  • IR modulation frequency bandwidth: 25-60kHz
  • Reception range: up to 80 ft/24 m*
  • Color-coded connectors for fast, easy installation

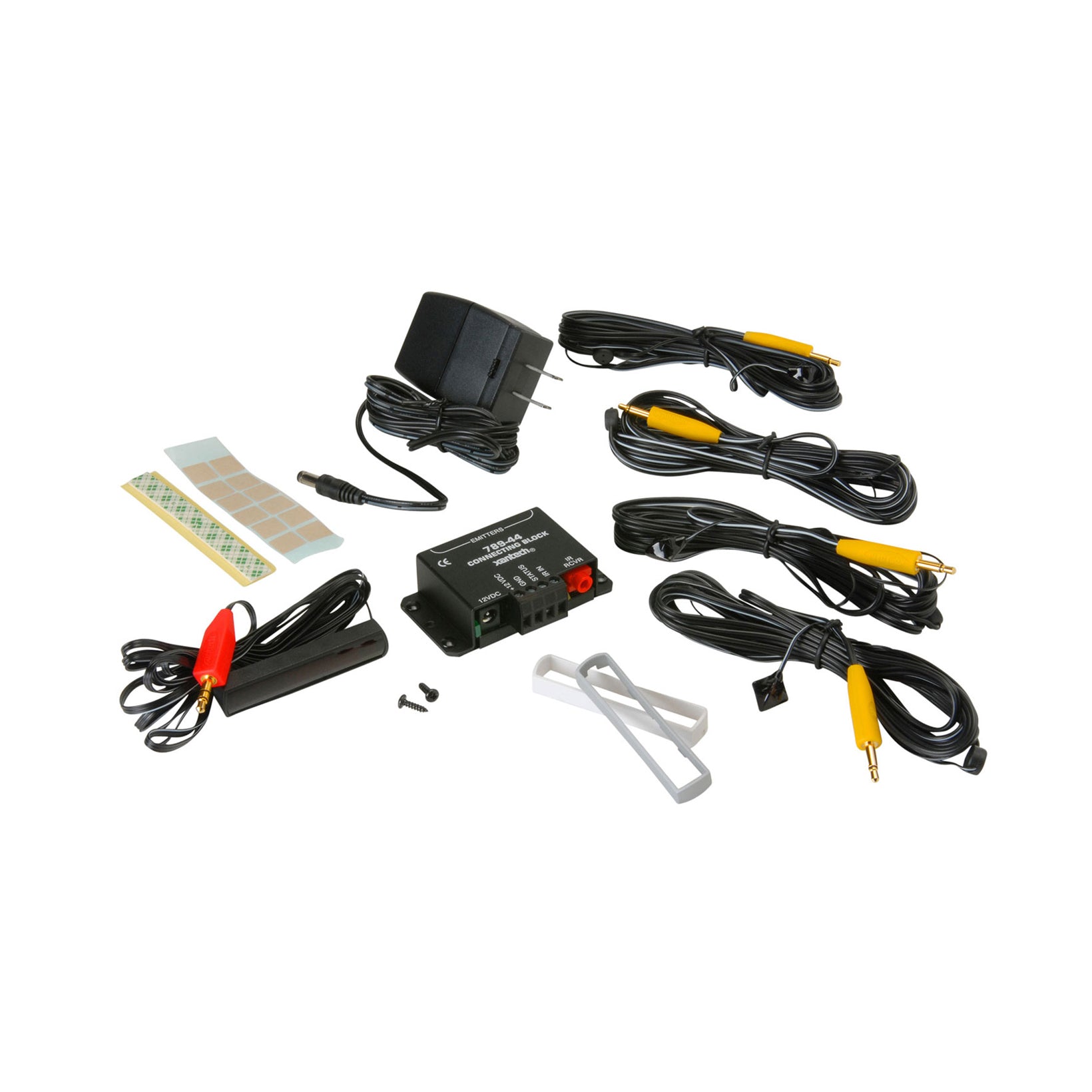

  • One DL85 IR receiver

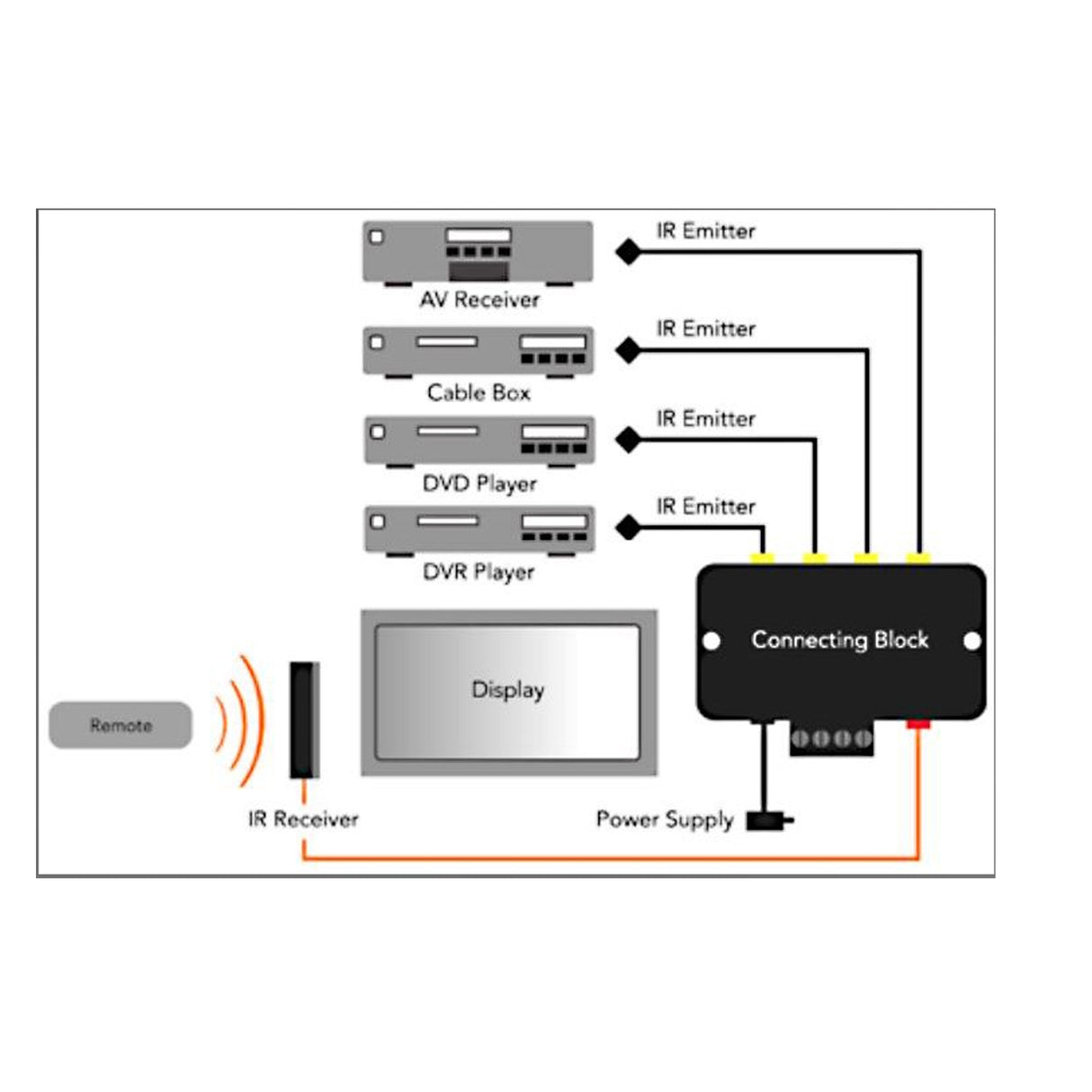

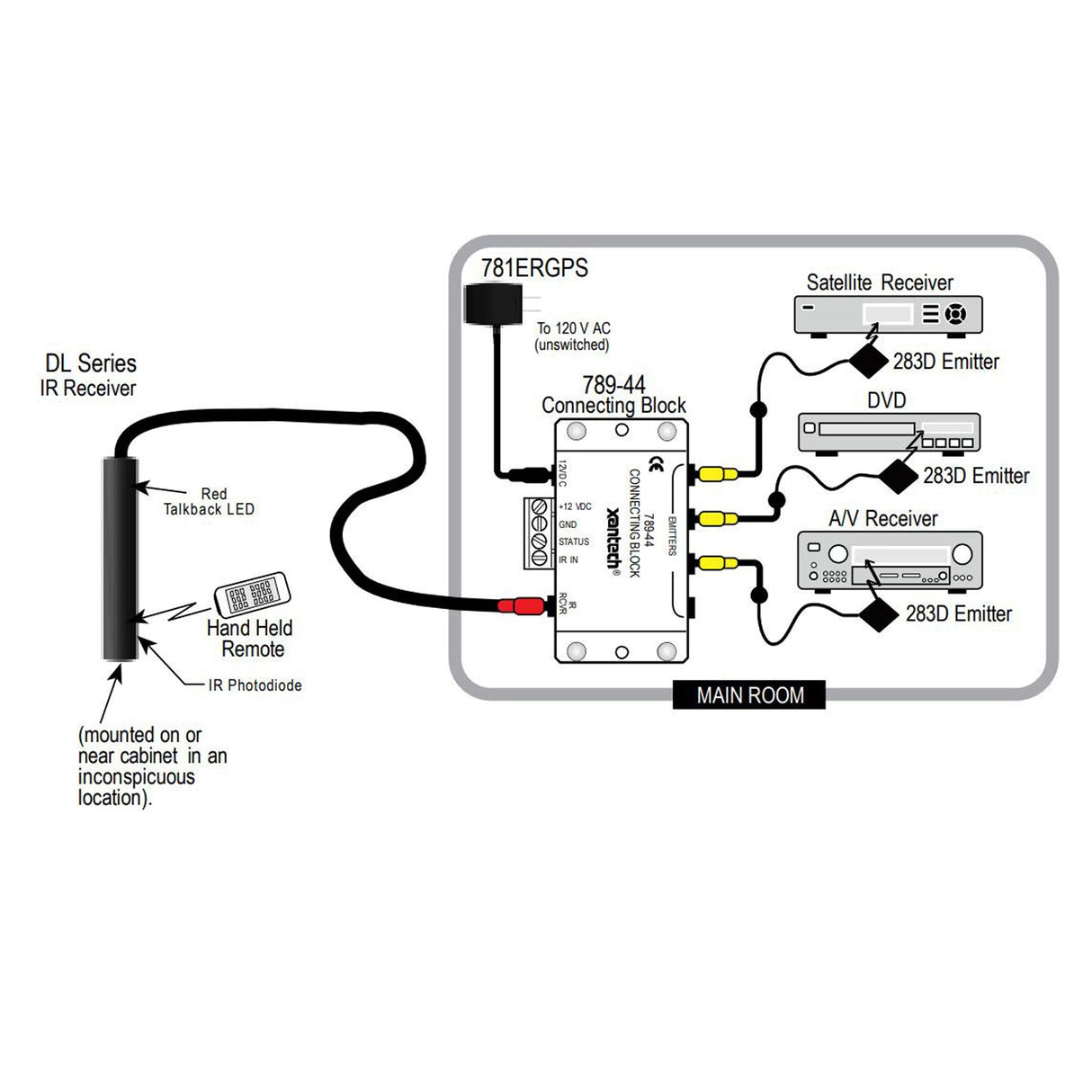

  • One Model 789-44 connecting block that connects one IR receiver to 4 IR emitter ports and has enough power to drive up to 4 dual emitters
  • One 12VDC regulated power supply
  • 4 Blink-IR™ Designer emitters
  • One Instruction manual
  • One Trim kit to match white, silver and black AV components
Weight 0.85lb
Length 5.7in
Width 3.7in
Height 6.2in
Infrared carrier frequency bandwidth 30 - 60 kHz
Reception range Up to 80 feet
Reception angle +/- 60 degrees
Max. Transmission length 1 mile using 18 gauge wire
Maximum current output 100mA
Power requirements +12VDC, 10mA
