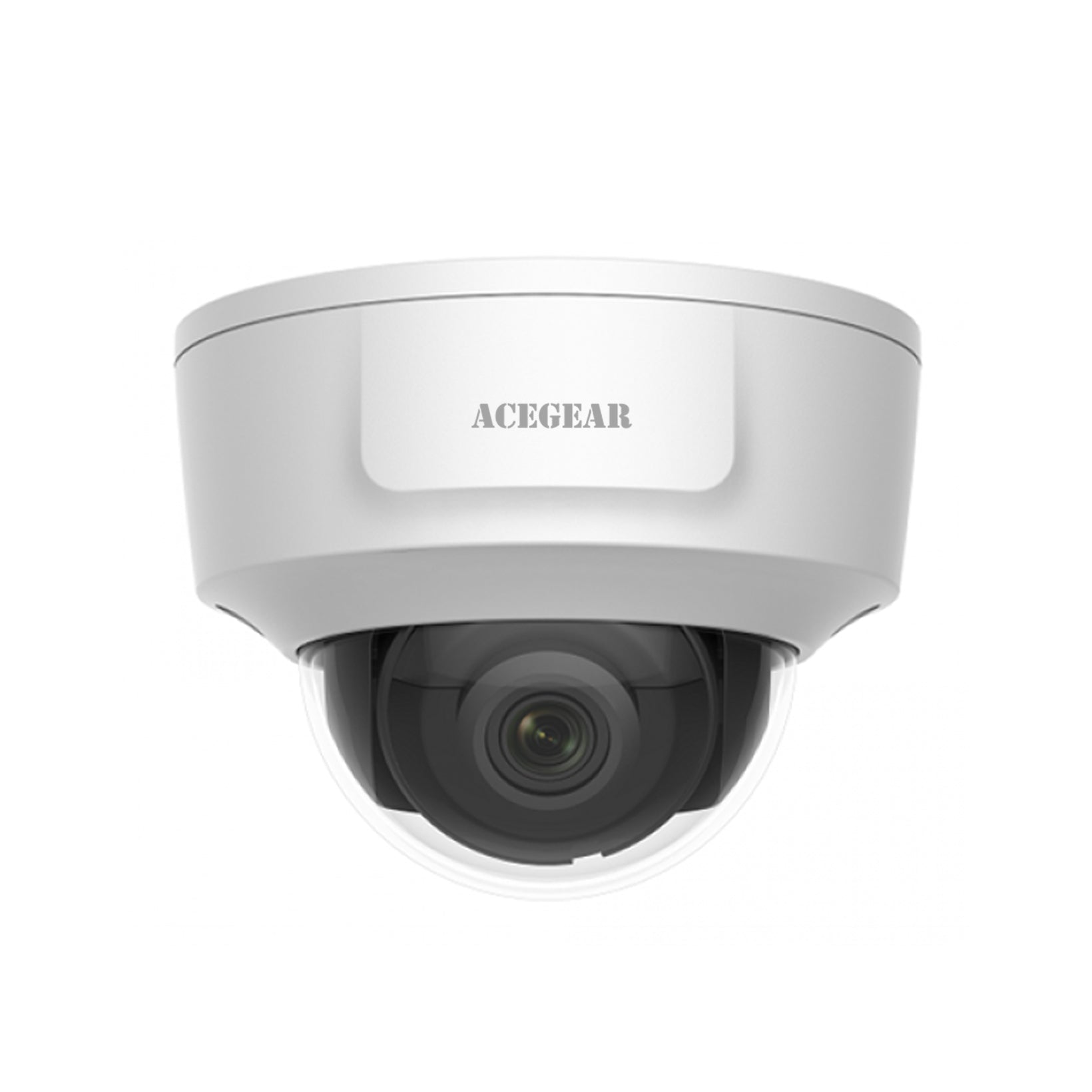

Acegear CI2202HDMI IP 2MP HDMI Output H.265 2.8mm Night Fight EXIR 100ft 48vPoE 12VDC UL Listed

by Acegear
SKU AGCI2202HDMI
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • Up to 2 MP High Resolution
  • 1920 × 1080 @30 fps
  • 2.8 mm Fixed Lens 108º view
  • Ultra-Low Light, 0.009 lux, Night Fight Technology
  • H.265+, H.265, H.264+, H.264
  • 120 dB Wide Dynamic Range
  • 3D Digital Noise Reduction
  • 4 Behavior analyses and Face Detection
  • 12 VDC & PoE (802.3af)
  • Up to 100 ft IR range
  • MicroSD card slot supports up to 128 GB
  • Inoor use ONLY
  • 3-Axis Adjustment

Acegear CI2202HDMI provides important new technology for any security application. The H.265 High Efficiency Video Coding (HEVC) assures savings in bandwidth and storage space. The Night Fight Ultra-Low Light technology allows better color picture in very low light conditions (0.009 lux), and when completely dark (0 lux) the EXIR 2.0 technology enhances night mode performance. In adition the CI2202HDMI offers 4 behavior analyses (line crossing, intrusion, unattended baggage detection, object removal detection), and exclusive Acegear Face Detection. HDMI port allows this camera to be connect to any HD monitor and on the network simultaneously

Image Sensor 1/2.8" Progressive Scan CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.009 lux @ (F1.6, AGC ON), 0 lux with IR
Shutter speed 1/3 s to 1/100,000 s
Slow shutter Support
Lens 2.8 mm, horizontal field of view: 108°
Lens Mount M12
3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day/Night IR cut filter with auto switch
Wide Dynamic Range True 120 dB
Digital noise reduction 3D DNR
Focus Fixed
Video Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
Video bit rate 32Kbps - 16Mbps
Audio Compression G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3
Max. Image Resolution 1920 X 1080
Main Stream 60fps (1920 × 1080, 1280 × 720)
Sub Stream 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement BLC/3D DNR/HLC
Image Settings Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Region of Interest (ROI) Support 1 fixed region for main stream and sub stream separately
Day/Night Switch Day / Night / Auto / Schedule
Network Storage microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
Third Party Compatibility ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Communication Interface 1 RJ45 10M / 100M Ethernet interface
Video Output 1 HDMI™, type D, female plug (-M)
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Behavior Analysis: Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections: Scene change detection
Recognition: Trigger function using face detection
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: 12 VDC ± 25%, 0.6A, max. 7 W
PoE(802.3af, 36 – 57V, class 3), 8.5 W
Indoor Use only
IR Range: Up to 100 ft.
Warranty: 36 mo. with proof of purchase *exclusion apply (see warranty terms for details).

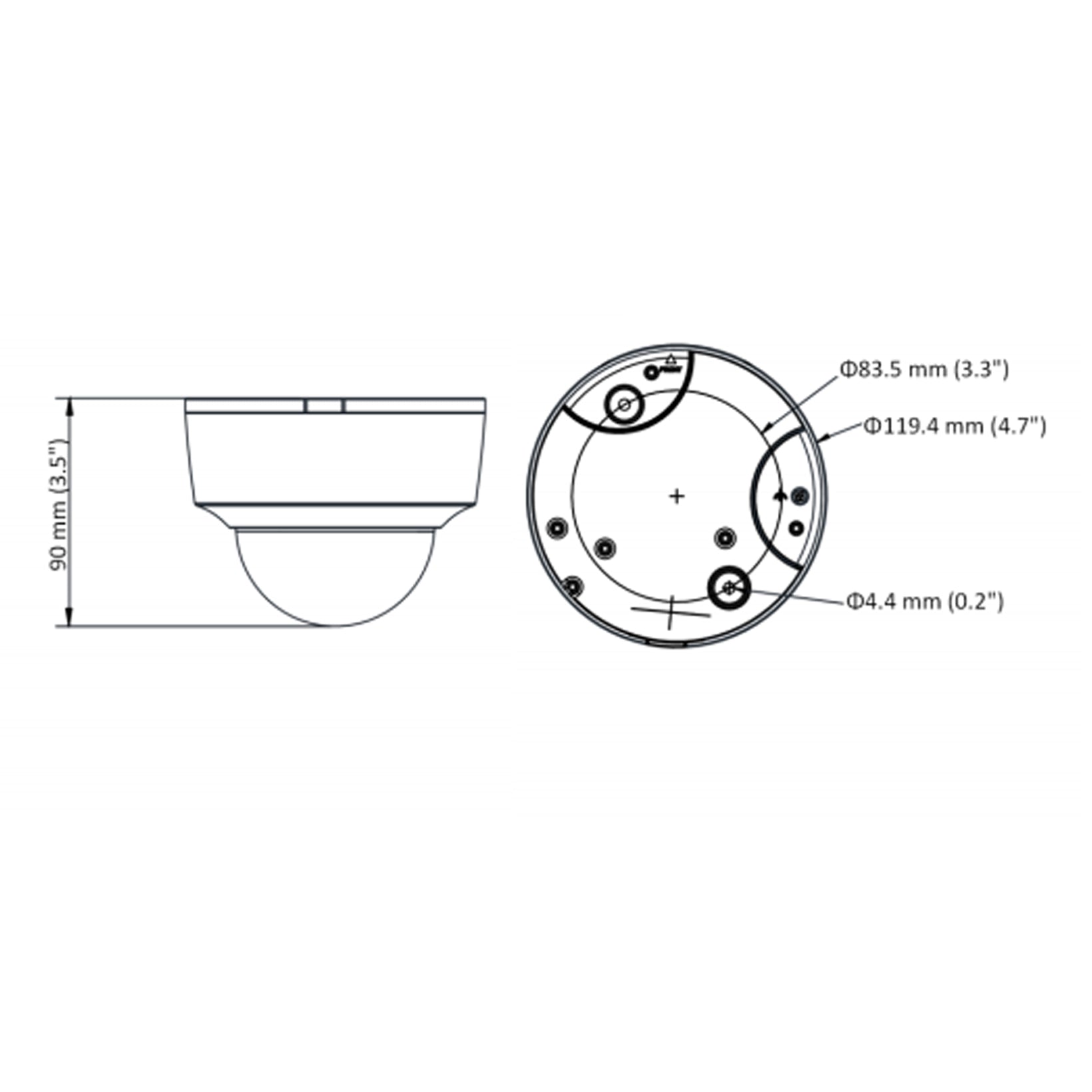

Dimensions: Camera: Φ 4.7″ × 3.5″ (119 × 90 mm)
Weight: 1.1 lb. (520 g)
