Acegear DVRT4K16K4 UHD 4K (16CH) TVI /AHD/CVI + 16CH IP Video 32 Total Dual LAN H.265 HDMI/VGA/CVBS UL Listed

by Acegear
SKU AGDVRT4K16K4
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

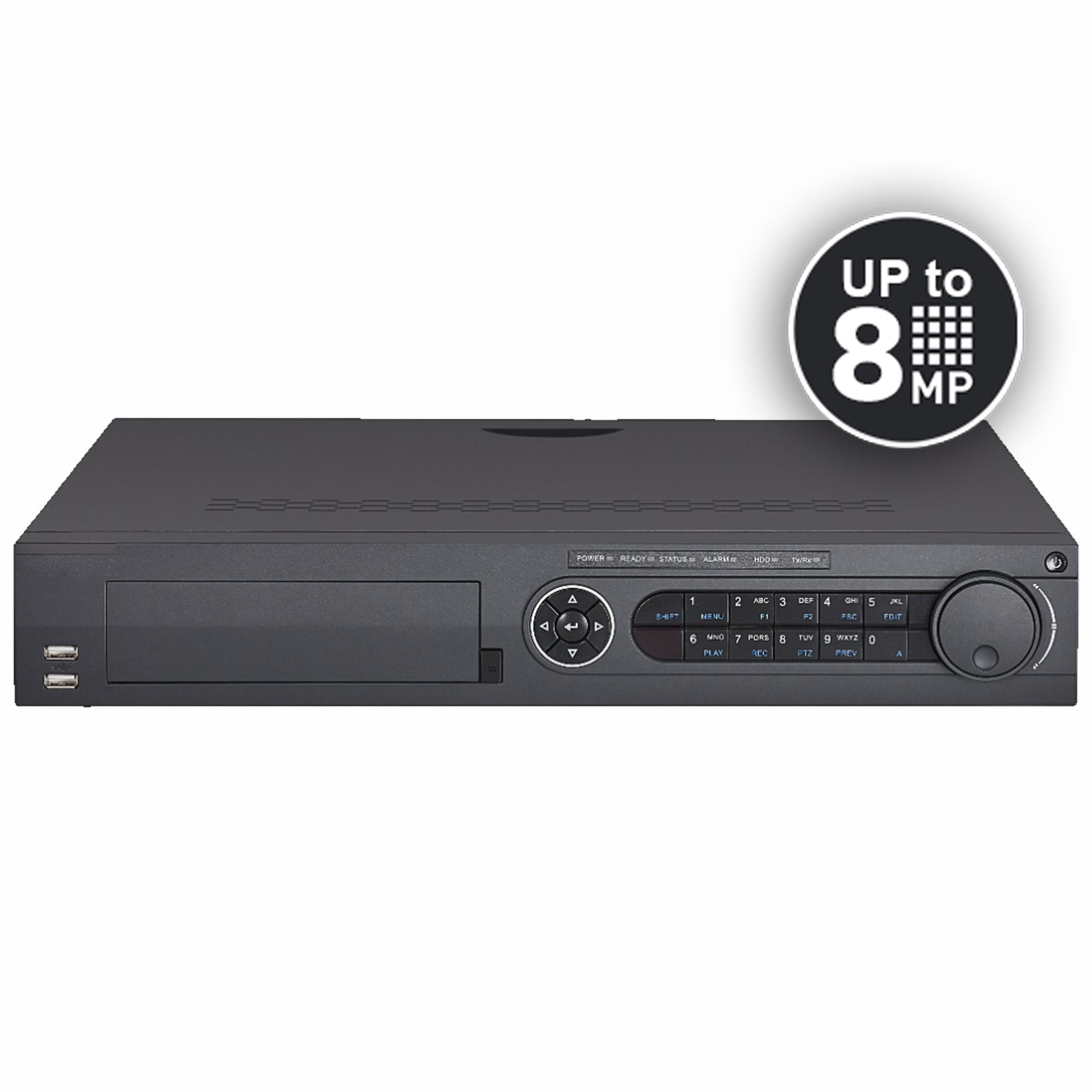

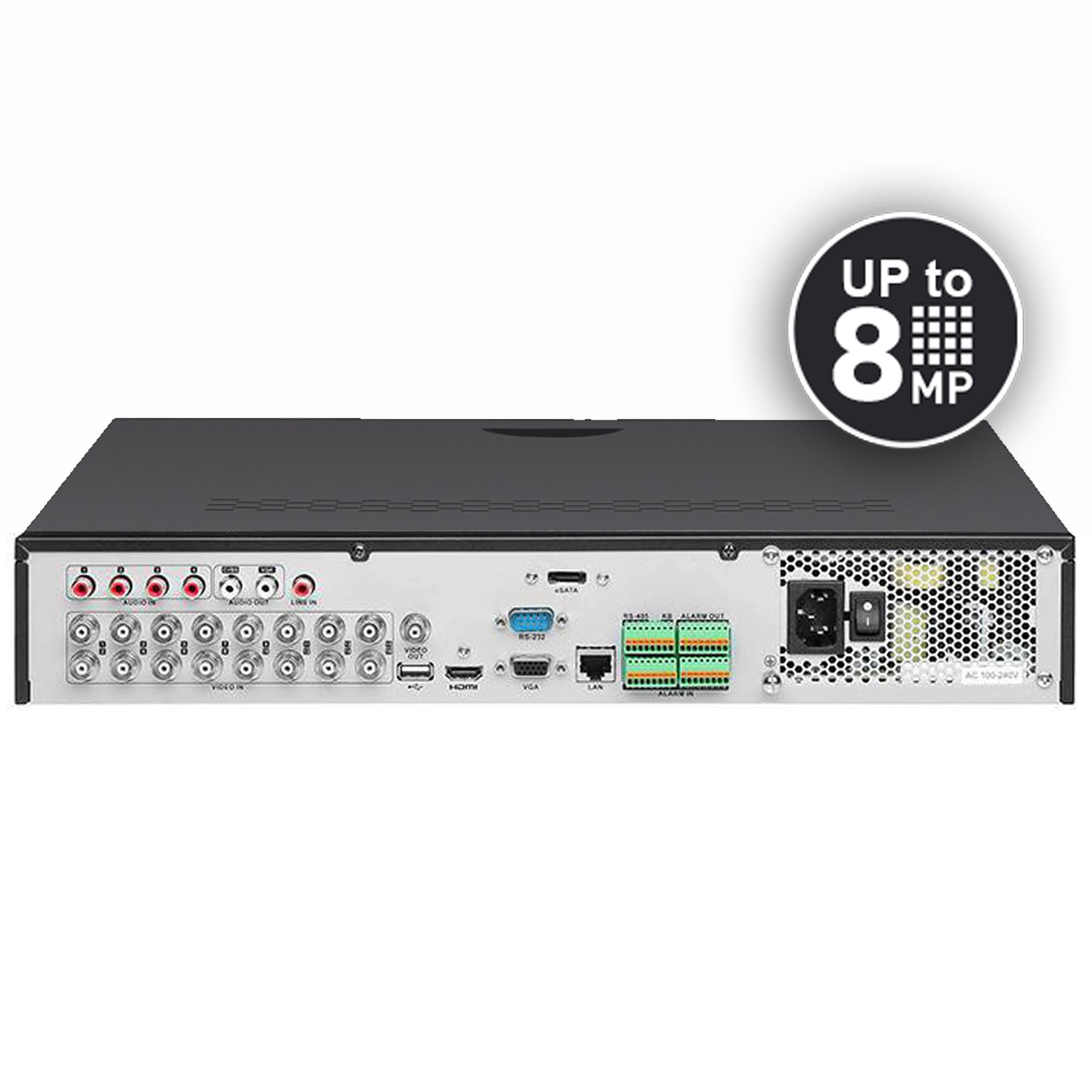

Acegear AGDVRT4K16K4

  • Up to UHD 4K 8MP recording resolution
  • 16-ch 8 MP (4K) IP cameras input
  • Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
  • 16-ch synchronous playback
  • H.265+/H.265/H.264+/H.264 Main Stream encoding
  • Support POS triggered recording and POS information overlay
  • Supports third-party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
  • Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
  • HDMI output at up to 4K (3840 x 2160) resolution
  • Ace-Connect & DDNS (Dynamic Domain Name System) for easy network management

The Acegear AGDVRT4K16K4 DVR is capable to record analog HD cameras up to 8MP in resolution using very low storage thanks to the new compression H.265+. Besides the 16 analog cameras the DVR supports the connection of an extra 16 IP cameras up to 8MP (4K) in resolution. The system can be remote access using mobile app available for Android and Apple iOS devices, Acegear also offers a free video management software available for Windows and MacOS.

Video compression H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Analog video input 8CH BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD input 5 MP, 4 MP, 1080p 25 , 1080p 30 , 720p 25 , 720p 30
HDCVI input 4 MP, 1080p 25 , 1080p 30 , 720p 25 , 720p 30
CVBS input PAL / NTSC
IP video input 16-ch (up to 32-ch), up to 8MP resolution, supports H.265+/H.265/H.264+/H.264 IP cameras
Audio compression G.711u
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
CVBS 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 x 576, NTSC: 704 x 480
HDMI 2 Output 1-ch,4K(3840 × 2160)/30Hz,2K(2560 × 1440)/60Hz,1920×1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz
HDMI/VGA output 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Encoding resolution 8 MP / 5 MP / 4 MP / 3 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF
Frame rate Main stream: 8MP @ 12fps / 5MP @ 20fps / 3MP @ 18fps / 4MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF @ 25fps (P) / 30fps (N) Sub-stream: WD1 / 4CIF @ 12fps; CIF @ 25fps (P) / 30fps (N)
Video bit rate 32 Kbps to 16384 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 kbps
Dual stream Support
Stream type Video, video & audio
Synchronous playback 16CH
Incoming bandwidth 64Mbps
Remote connections 64
Network protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
SATA 4 SATA interface
Capacity Up to 10 TB capacity for each disk
Network interface 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB interface 2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel
Serial interface RS-232, RS-485 (full-duplex), Keyboard
Alarm in/out 16/4
Power supply 100 to 240 VAC
Consumption (without HDD) ≤ 45 W
Working temperature 14 °F to 131 °F (-10 °C to 55 °C)
Working humidity 10% to 90%
Dimensions (WxDxH) 17.5" x 15.46" x 2.9" (445 x 390 x 70 mm)
Warranty 12 mo. with proof of purchase *exclusion apply (see warranty terms for details).
Weight (without HDD) ≤ 6 kg (13.2 lb)
