Acegear PBCP121820AUL CCTV Power Supply Box 18 Cameras (1.12 Amp/Channel) 12V 20.0Amp

by Acegear
SKU AGPBCP121820AUL
ID: 12963610067016




This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

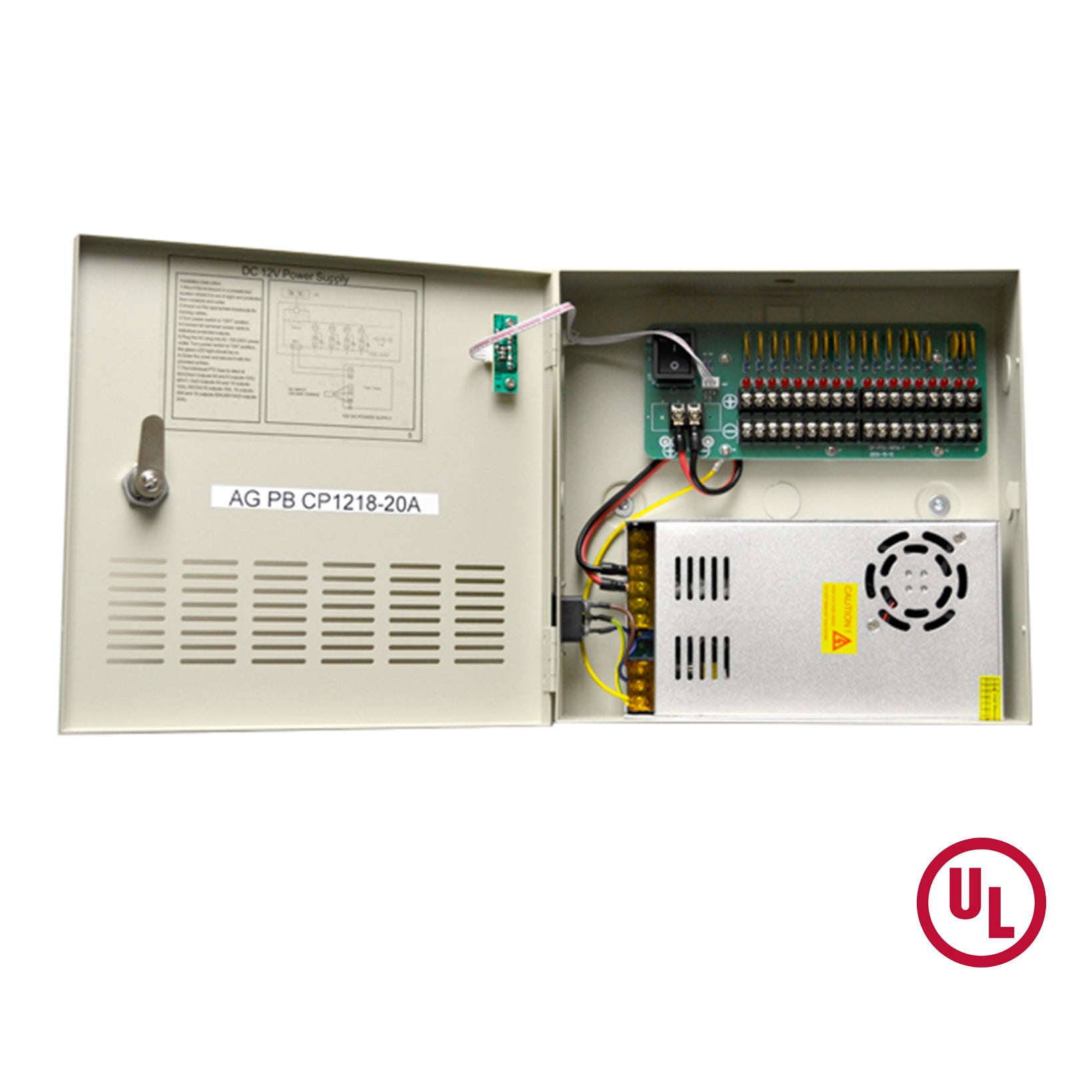

CCTV Power Supply Box 18 Cameras AC 100-240V to DC 12V 20A 18ch DC power adapter box for CCTV security

Powering multiple cameras could not be easier! CCTV Camera Power Box has PTC fuse protection for Circuit Short, High Voltage, and Over Current. Consolidate all cameras power to one central location.

  • General Protection: Individual PTC(Positive Temperature Coefficient) Fuse and LED indicator on each output, when problem occurs, only affect the individual output, other outputs still working
  • Short Circuit Protection: When short circuit occurs, Individual PTC Fuse will cut off the circuit and when breakdown removed, PTC fuse will automatically be restoring circuit
  • High voltage protection: When high voltage occurs, the surge protection will be hit through to protect the connected device
  • Over Current protection: When over current occurs, the power supply will automatically switch to self-protection status, when it is removed, then it will return to normal state
  • Application: CCTV Camera, PTZ, IR Illuminators, Video Process,Access Control, etc
  • Thermal Cutoffs Protection (TCO): each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working.
Input Voltage Range AC 100-240V
Output Channel 18 Channel
Output Voltage 12V AC
Output Current 20 Ampere
