Acegear PBCP120910AUL CCTV Power Supply Box 9 Cameras (1.12 Amp/Channel) 12V 10.0Amp

by Acegear
SKU AGPBCP120910AUL
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

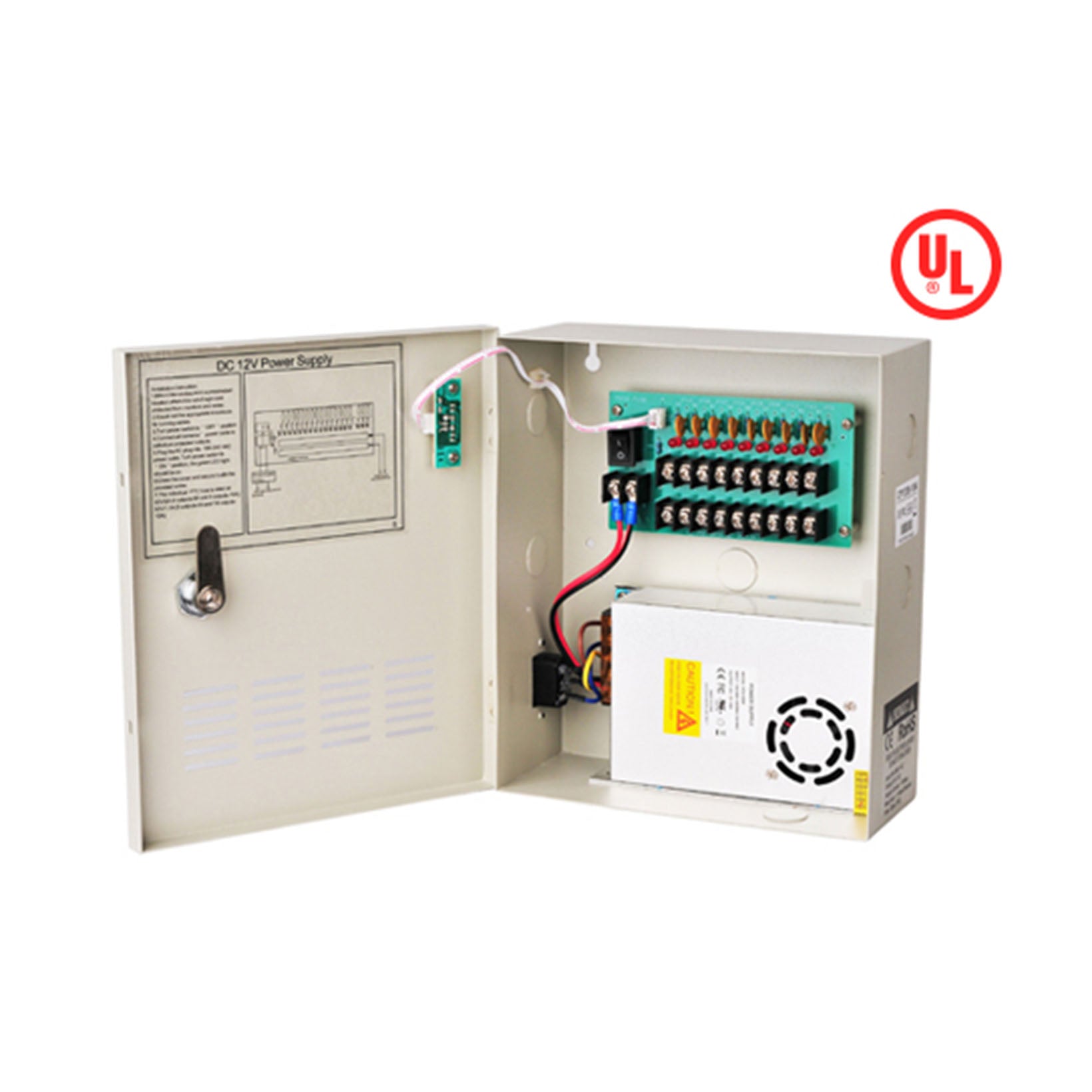

CCTV Power Supply Box 9 Cameras (1.12 Amp/Channel) 12V 10.0Amp

Powering multiple cameras could not be easier! CCTV Camera Power Box has PTC fuse protection for Circuit Short, High Voltage, and Over Current. Consolidate all cameras power to one central location.

  • General Protection: Individual PTC(Positive Temperature Coefficient) Fuse and LED indicator on each output, when problem occurs, only affect the individual output, other outputs still working
  • Short Circuit Protection: When short circuit occurs, Individual PTC Fuse will cut off the circuit and when breakdown removed, PTC fuse will automatically be restoring circuit
  • High voltage protection: When high voltage occurs, the surge protection will be hit through to protect the connected device
  • Over Current protection: When over current occurs, the power supply will automatically switch to self-protection status, when it is removed, then it will return to normal state
  • Application: CCTV Camera, PTZ, IR Illuminators, Video Process,Access Control, etc
  • Battery Backup: Use 12V Lead-acid battery
Input Voltage Range AC 90V-264V
Input Frequency Range 50Hz-60Hz
Output Voltage Range DC 12V+/-5%
Output Current 5 Ampere
Output Power 60 Watt
Output Ripple & Noise ≤70MV
Output Efficiency ≥83.2%
Output Channel 9 Channel
Output Fuse Type PTC or Glass Tube
Output Fuse Rating 1.1A
Environment Operatiing Amb.Temp -30℃~45℃ 20%~90%RH
Envionment Storage Temp -40℃~85℃ 10%~95%RH
Battery Available DC12V,7AH lead-acid Battery
Transmission Distance 100M
