Acegear CI2402A-NF, 2 Cameras 4MP Dual-channel 2.8mm Fixed Lens, Night Figther, Microphone,130dB True WDR

by Acegear
SKU AGCI2402A-NF
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

• High quality image with 2*2MP resolution, 1/2.8"CMOS sensor

• Single IP with dual channels

• 2MP (1920*1080)@30/25fps; 720P (1280*720) @30/25fps

• Ultra 265, H.264,H.265, MJPEG

• Both channels support intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection

• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and motor vehicle and non-motor vehicle

• Intelligent People Flow Counting and Crowd Density Monitoring (Only Channel 1)

• 130dB true WDR technology enables clear image in strong light scene

• Built-in two Mics

• Supports 256 GB Micro SD card

• DC12V or PoE(IEEE 802.3af) power supply

• IP67 protection and IK10 vandal resistant

• 3-Axis

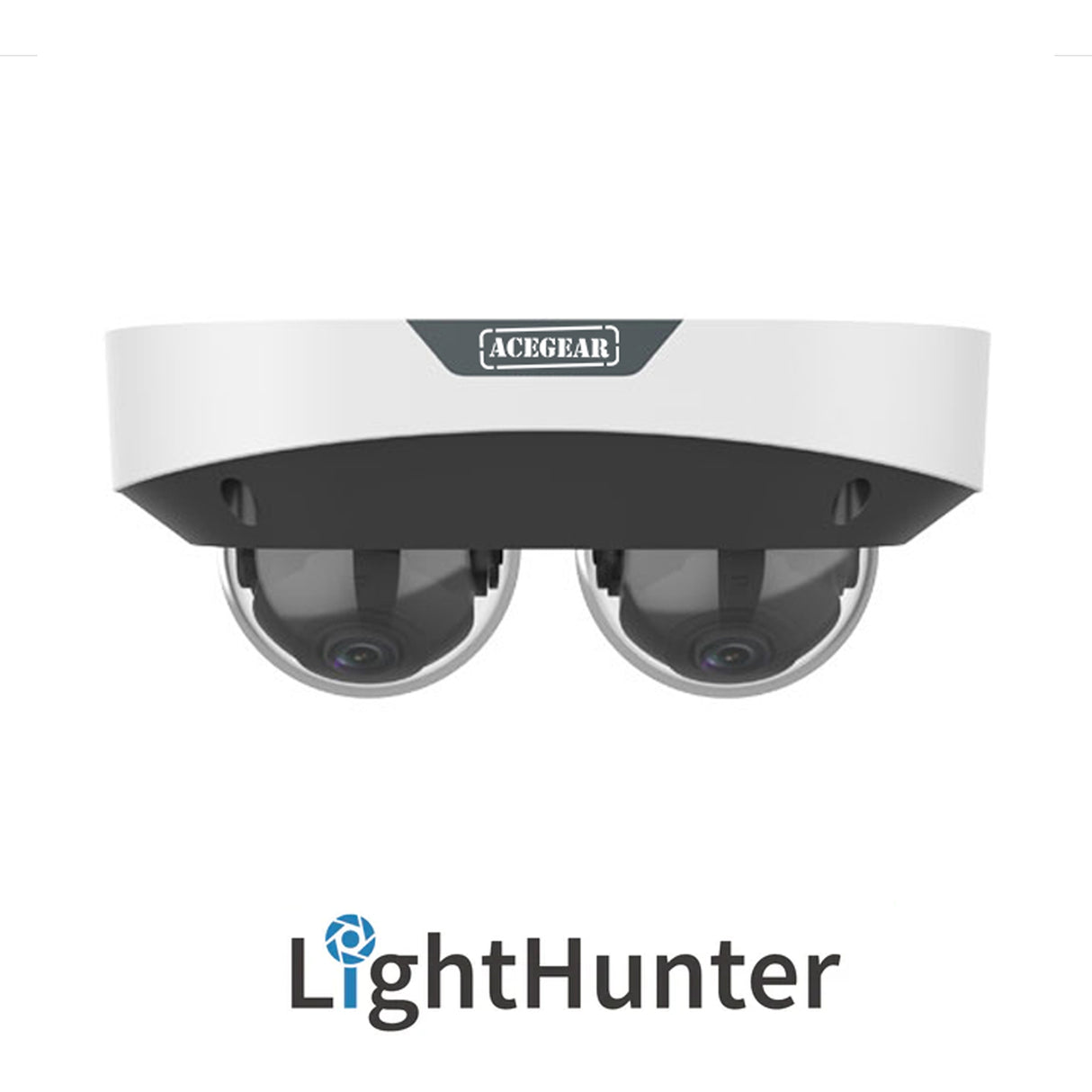

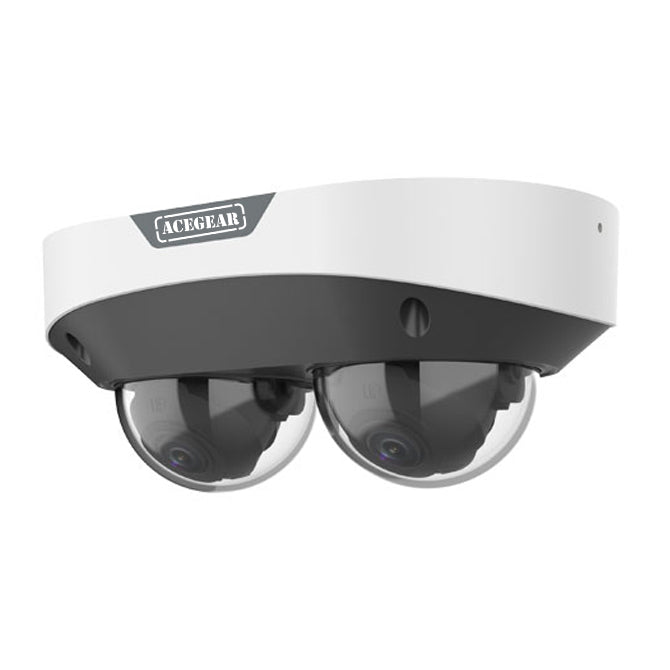

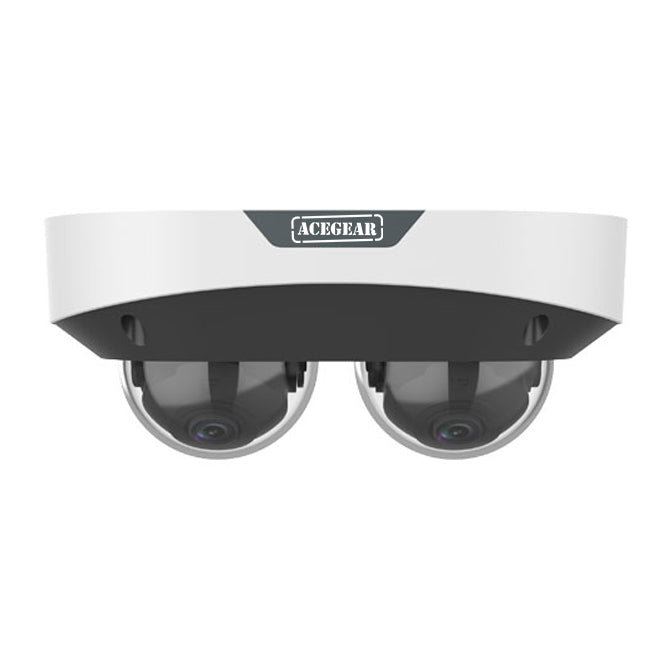

The Acegear CI2402A-NF  is a Non-Splicing Dual Lens IP Dome Camera. What is a Non-Splicing Camera? We are glad you asked. With this Dual Channel Dome, the two lenses are completely independant. That means that you can rotate and aim each camera to completely different views.

In addition, both images are acheived using just one Category Cable. Therefore, you can cover a lot of area, or split the view to cover something like converging hallways. This new Prime Series Dual IP Dome Camera is packed full with the Intelligent Features to really step up your surveillance game!

Camera
Sensor 1/2.8", 2.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour:0.003 (F1.6, AGC ON)
0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 0° ~ 180° Tilt: 0° ~ 66° Rotate: 0° ~ 346°
WDR 130dB
S/N >52dB
Lens
Lens type 2.8mm@F1.6 4.0mm@F1.6
Iris Fixed
Field of View (H) 100.2° 86.88°
Field of View (V) 54.5° 44.39°
Field of View (O) 104.9° 91.76°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 43.4m(142.5ft) 17.4m(57ft) 8.7(28.5ft) 4.3m(14.3ft)
4.0 62.1m(203.6ft) 24.8m(81.5ft) 12.4m(40.7ft) 6.2m(20.4ft)
Illuminator
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Triple streams
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/ Flip Vertical/ Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Intelligent
Smart intrusion prevention Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical Analysis People counting, support people flow counting and crowd density monitoring(Only Channel 1)
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function Watermark, IP address filtering, Tampering alarm, Access policy, ARP protection, RTSP authentication, User authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way audio Support
Suppression Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4,IPv6, IGMP, ICMP ,ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
Compatible Integration ONVIF (Profile S, Profile T, Profile G), API,SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 1/1
Serial Port N/A
Built-in Mic Built-in two Mics
Built-in Speaker N/A
WIFI N/A
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certifications
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
Safety CE-LVD (EN 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection IP67 (IEC 60529)
IK10 (IEC 62262)
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8.2w
Power Interface Ø 5.5mm coaxial power plug
Dimensions 176×104×72mm (6.9" × 4.1" ×2.8")
Weight 0.62kg(1.37lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Reset Button Support
