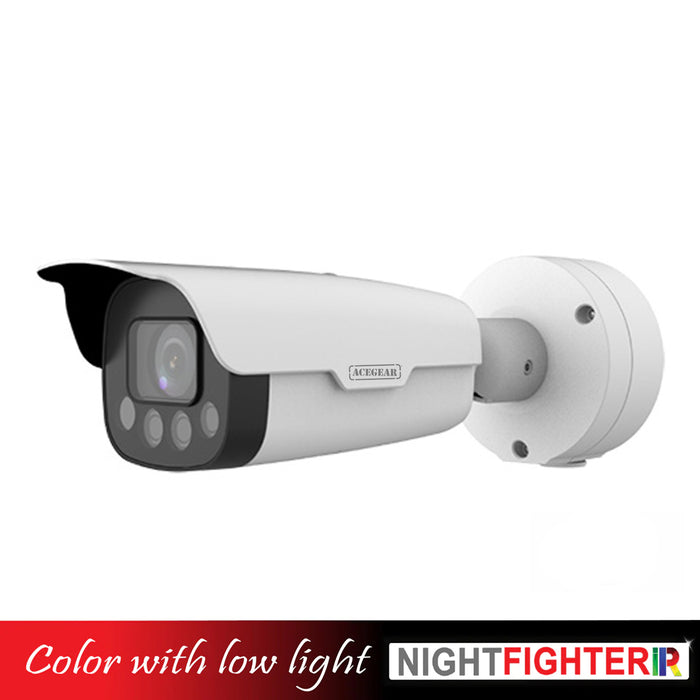

Acegear CI3200-LPR-NF, IP 2MP 4.7-47mm Motorized Lens, Night Fighter 120dB True WDR

by Acegear
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • High quality image with 1/2.8” 2MP CMOS
  • 2MP industrial-grade sensor delivers 1920 x 1080 images
  • 4 LED illumination beads provide up to 50m illumination.
  • Starlight optical sensor and integrated illuminator for vehicle
    capture and recognition in low-light environments
  • Motorized zoom lens enables flexible focal length adjustment and
    easy installation.
  • Automatic gain control, white balance, and WDR for various light
  • Support PoE power supply
  • 3-axis mounting bracket for various installation scenarios.

Acegear AGCI3200-LPR-NF Built-in vehicle&license plate recognition algorithm can recognize standard license plates of multiple countries. Supports allowlist and blocklist configuration. Supports vehicle access control when connected to a barrier. Supports Micro SD cards of up to 128GB. Supports Automatic Network Replenishment (ANR), the camera can automatically store video to its SD card in case of network disconnection. Supports audio acquisition and intercom. Custom OSD allows various vehicle information to be overlaid on the video image.

Shutter Auto/Manual, range: 1/25 to 1/100000 s
Minimum Illumination 0.001lux (F1.6)
Focal Length 4.7 to 47mm, motorized zoom
Image collection format 1080P@25 (default), 1080P@30, 1080P@50, 1080P@60
Resolution Main stream: 1080P (default), 720P, D1
Sub stream: 720P (default), D1, 2CIF, CIF
Third stream: D1 (default), 2CIF, CIF
Frame Rate 60, 50, 30, 25 (default), 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1
Illumination Built-in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control
Application scenario Vehicle speed ≤30km/h
Supports simultaneous application to entry/exit scenes
Vehicle detection mode Video (default) or inductive loop
License plate number recognition Supports recognition of license plates with numbers and letters by default
List configuration Supports allowlist and blocklist configuration, each list allows 20,000 items
Supports import, export, add, and delete operations
Barrier opening policy Open barrier only for the recognized vehicles
Open barrier for all vehicles
Open barrier only for vehicles on the allowlist
Open barrier for vehicles not on the blocklist
Configurable Boolean output ID
Boolean output 1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A
Boolean input 2 inputs, supports level/Boolean, with max level up to DC 5V
Smart IR Supported
Edge Storage Supports ANR with a Micro SD card, up to 128GB
Network 10/100M Base-TX Ethernet
Audio 1 × audio input, 1 × audio output
Power DC 12V±25%, PoE (IEEE 802.3af) / Power consumption: Max 20.0W
Dimensions (L × W × H) 386mm x 126mm x 130mm
Weight 2kg
Material Metal + plastic
Working Environment -40℃ to 60℃, ≤90% RH
Ingress Protection IP67, IK10
Reset Button N/A
