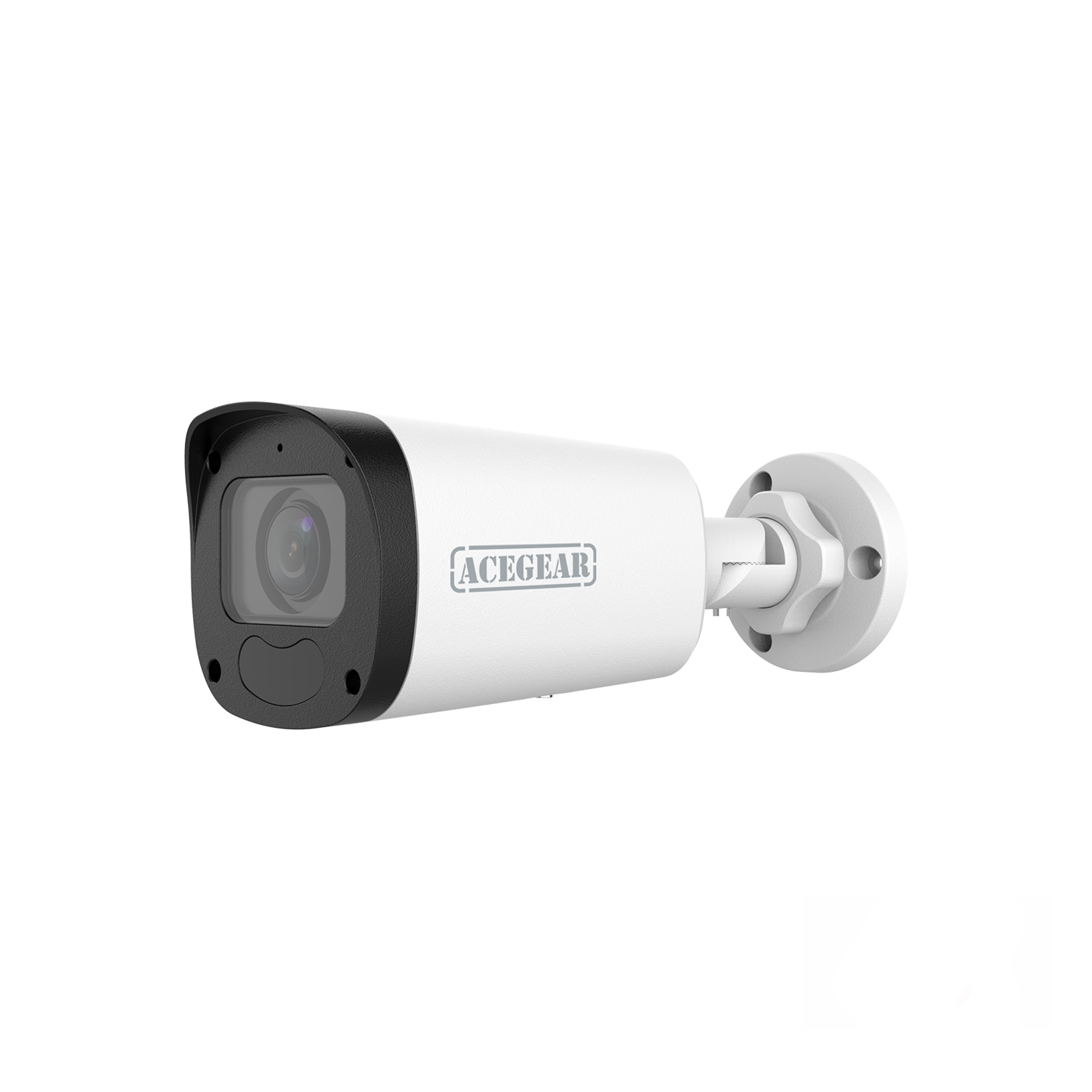

Acegear CI3298MLA IP 2MP 2.8-12mm Motorized Lens, Microphone, 120dB True WDR, UL Listed.(Promo Code PNOGKFQM)
• High quality image with 2MP, 1/2.8"CMOS sensor
• 2MP (1920*1080)
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 50m (164ft) IR distance
• Supports 128 GB Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
Acegear CI3298MLA provides important new technology for any security application. The Night Fight Ultra-Low Light technology allows better color picture in very low light conditions (0.005 lux), and when completely dark (0 lux) the EXIR 2.0 technology enhances night mode performance. The Motorized Lens 2.8-12mm option is optimized for capturing a wide horizontal to closed field of view. 120 dB True WDR (Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions.
Sensor | 1/2.7", 2.0 megapixel, progressive scan, CMOS |
---|---|
Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens |
Shutter | Auto/Manual, 1 ~ 1/100000s |
Minimum Illumination | Colour: 0.005Lux (F1.6, AGC ON) 0Lux with IR on |
Day/Night | IR-cut filter with auto switch (ICR) |
Digital noise reduction | 2D/3D DNR |
IR Range | Up to 50m (164ft) IR range |
IR On/Off Control | Auto/Manual |
WDR | 120dB |
Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
Video Bit Rate | 128 Kbps~6144 kbps |
9:16 Corridor Mode | Supported |
OSD | Up to 4 OSDs |
Privacy Mask | Up to 4 areas |
ROI | Up to 8 areas |
Motion Detection | Up to 4 areas |
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
Digital Noise Reduction | 2D/3D DNR |
Smart IR | Supported |
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
Dewarping | N/A |
HLC | Supported |
BLC | Supported |
Video Compression | H.265, H.264, MJPEG |
Audio Compression | G.711 |
Suppression | Supported |
Edge Storage | Micro SD, up to 128GB |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL, SNMP |
Network | 10/100M Base-TX Ethernet |
Built-in Mic | Supported |
Power | DC 12V±25%, PoE (IEEE 802.3af) |
Dimensions (L × W × H) | 206 × 74 × 74mm (8.1” × 2.9” × 2.9”) |
Net Weight | 0.54kg (1.19lb) |
Material | metal |
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Ingress Protection | IP67 |
Reset Button | Supported |
