by Acegear
SKU AGCI4266.15XWB
- Up to 2 MP High Resolution
- 1920 x 1080 @30 fps
- 15X Optical Zoom, 16X Digital
- Ultra Low Light, Color @ 0.005 lux, Night Fight Technology
- H.265+, H.265, H.264+, H.264
- WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
- 12 VDC & PoE (802.3at, class4)
- Up to 300 ft IR range
- MicroSD card slot supports up to 128 GB
- Mountig Backet Included

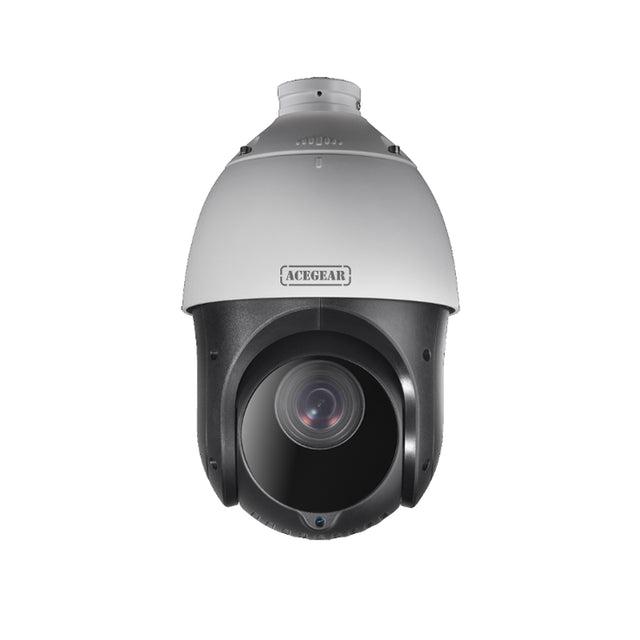

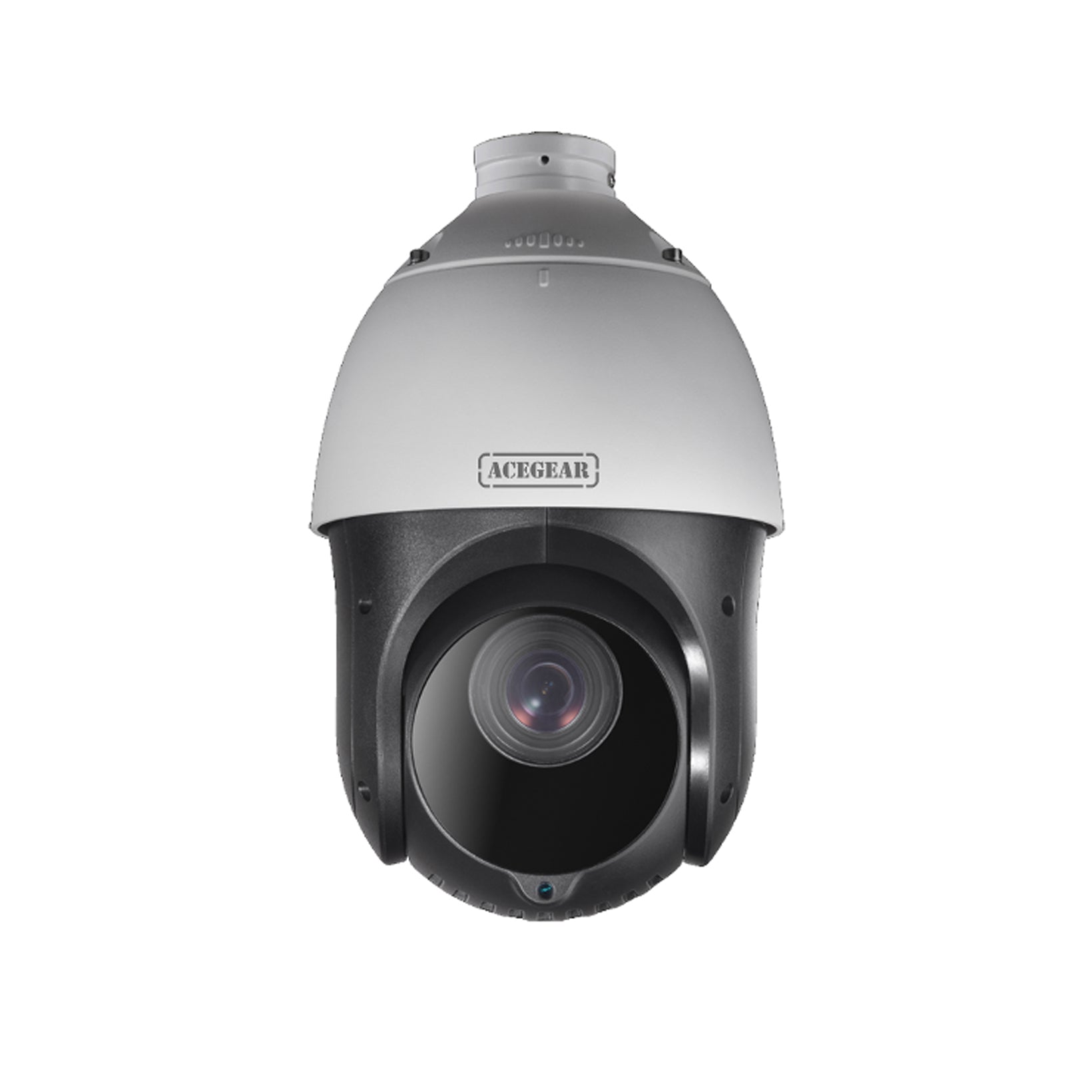

Acegear AGCI4266.15XHPOE The Gold Label 2MP PTZ is a very compact PTZ with a whopping 300ft. (100m) IR and 15x zoom. Due to its compact design, this PTZ is applicable in areas where a traditional PTZ is too large. It is also possible to set presets and patrols in this PTZ. The PTZ only needs 0.005Lux to give a color image! In addition, the PTZ has 120dB true WDR so that backlighting for this PTZ is no problem at all.
Image Sensor
1/2.8" Progressive Scan CMOS
Signal System
PAL/NTSC
Min. Illumination
Color: 0.005 lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 lux with IR
Shutter speed
1/1 s to 1/30,000 s
White Balance
Auto/Manual/ATW (Auto-tracking White Balance) / Indoor / Outdoor / Fluorescent Lamp / Sodium Lamp
Focus mode
Auto, semi-automatic, manual
Privacy Mask
24 programmable privacy masks
Lens
5 mm to 75 mm, 15× optical zoom
Zoom speed
Approx. 3.6 s (optical lens, wide-tele)
Field of View
Horizontal field of view: 53.8° to 4° (Wide-Tele)
Vertical field of view: 31.9° to 2.3° (Wide-Tele)
Diagonal field of view: 60.4° to 4.6° (Wide-Tele)
Day/Night
IR cut filter with auto switch
Wide Dynamic Range
True 120 dB (not supported by full frame rate
Digital noise reduction
3D DNR
Digital zoom
16X
Pan range
360° endeless
Pan speed
Configurable, from 0.1°/s to 80°/s, preset speed: 80°/s
Tilt range
From -15° to 90° (auto flip)
Tilt speed
Configurable, from 0.1°/s to 80°/s, preset speed: 80°/s
Proportional zoom
Support
Presets
300
Patrol scan
8 patrols, up to 32 presets for each patrol
Pattern scan
4 pattern scans, record time over 10 minutes for each scan
Power-off memory
Support
Park action
Preset / Pattern scan / Patrol scan / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan
3D positioning
Support
PTZ position display
Support
Preset freezing
Support
Schedule task
Preset / Pattern scan / Patrol scan / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan / Dome reboot / Dome adjust / Aux output
Video Compression
Main stream: H.265+ / H.265 / H.264+ / H.264
Sub-stream: H.265 / H.264 / MJPEG
Third stream: H.265 / H.264 / MJPEG
Video bit rate
32Kbps - 16Mbps
Triple Streams
Main stream, sub stream and custom
Max. Image Resolution
1920 X 1080
Main Stream
30fps (1920 × 1080, 1280 × 960, 1280 × 720)
60fps (1280 × 960, 1280 × 720)
Sub Stream
30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream
30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Image Enhancement
HLC / BLC / 3D DNR / Defog / EIS / Regional Exposure / Regional Focus
Image Settings
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Region of Interest (ROI)
Support 4 fixed region for main stream, sub stream, third stream separately
Day/Night Switch
Day/Night/Auto/Schedule
Network Storage
Built-in memory card slot, support microSD / SDHC / SDXC card (256G), local storage and NAS (NFS,SMB / CIFS), ANR
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
Third Party Compatibility
ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
API
Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
Simultaneous live view
Up to 20 clients
User/Host
Up to 32 users, 3 levels: administrator, operator and user
Security
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Communication Interface
1 RJ45 10M / 100M Ethernet interface, PoE+ (802.3 at, class4)
On-board storage
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Basic Event
Motion Detection, Video Tampering Detection, Exception
Smart Event
Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting, Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
Smart Record
ANR (Automatic Network Replenishment), Dual-VCA
ROI
Main stream, sub-stream and third stream respectively support four fixed areas
Object Removal:
Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections:
Scene change detection
Recognition:
Trigger function using face detection
Operating Conditions
-30 °C ~ 65 °C (-22 °F ~ 149 °F)
Humidity 90% or less (non-condensing)
Power Supply
12 VDC ± 25%, PoE+ (802.3af Class4)
Power Consumption
12 VDC, PoE(802.3af, 36 – 57V, class 3), 18 W (Max. 7W for IR)
Protection Level
IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
IR Range
Up to 300 ft. (100 m.)
Warranty
12 mo. with proof of purchase *exclusion apply (see warranty terms for details).
Material
ADC 12, PC+10 % GF
Dimensions
Camera: Φ 6.48" x 11.42" (Φ164.5 × 290 mm)
Weight
4.41 lb. (2000 g.)
