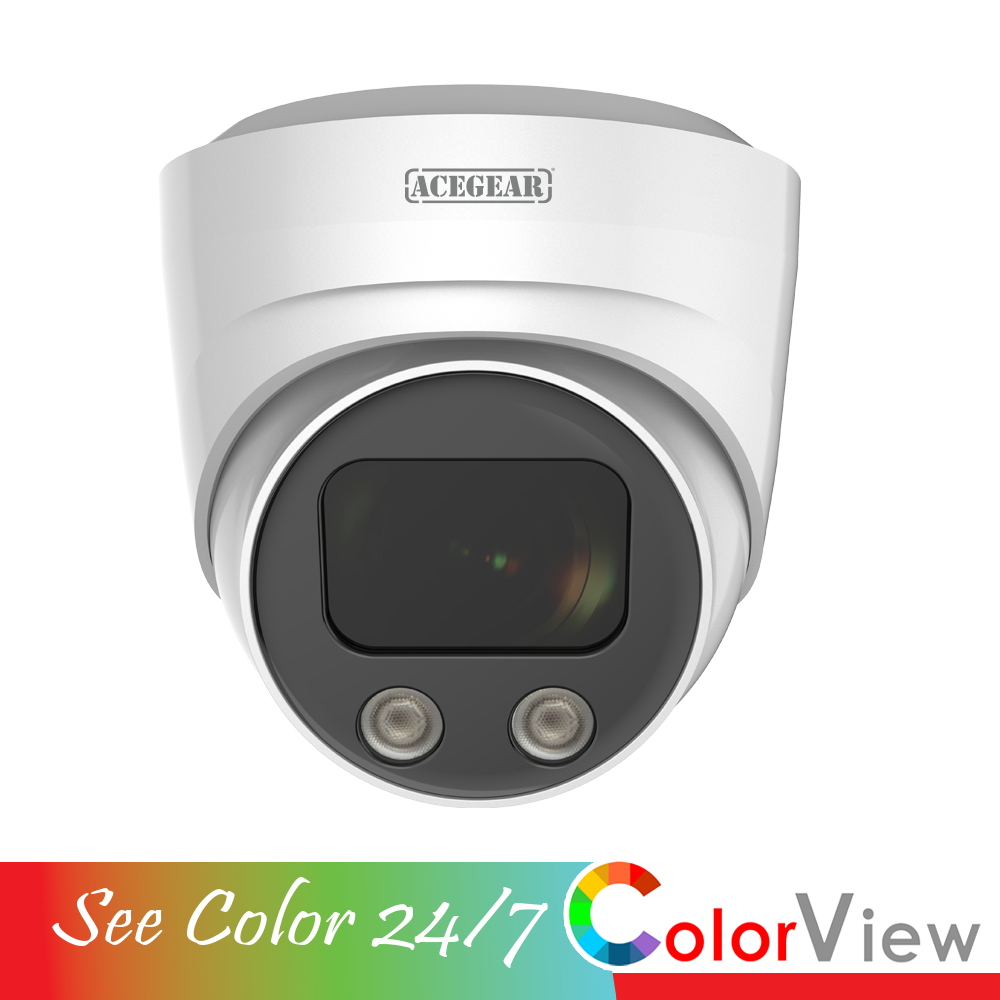

Acegear CT1886ML-CV (4K) Turret, TVI 2.7~13.5mm Motorized Lens, Color View 82ft. WDR.
by Acegear
SKU AGCT1886ML-CV
- Resolution: 4K / 8MP 3840 x 2160
- Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS sensor
- Lens: 2.7~13.5mm Motorized
- Functions: 3DNR, WDR, DEFOG
- Menu: OSD
- Light distance: Up to 82ft (30m)
- Multiprotocol Output: TVI
- Protection: IP67
- Warranty: 1 Year
Acegear CT1886ML-CV ColorView Outdoor Motorized Lens 2.7-13.5mm Turret Camera features an ƒ/1.0 lens aperture for maximum light gathering capability to provide full color imaging in extremely dark settings.
The camera also contains a powerful auxiliary white light source to enhance colors and illuminate the scene when it approaches total darkness or on a defined schedule.
The Motorized Lens 2.7-13.5mm option is optimized for capturing a wide horizontal to closed field of view. 120 dB True WDR (Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions.
| Video Output Mode |
AHD: 8M@15fps, 5M@20fps/12.5fps, 4M/2M@30fps/25fps; |
|---|---|
| Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS sensor |
| Image Resolution | 8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080 |
| TV System | PAL/NTSC |
| Electronic Shutter | Auto |
| Scanning System | Progressive Scan |
| Focus Length | 2.7-13.5mm Motor Zoom |
| Focus Control | Auto |
| Lens Type | Auto |
| IR Cut Filter | YES |
| Infrared LED | No,Support Warm light LED 4545U×2 |
| Light Distance | up to 30m |
| IR Status | AGC Auto Control |
| Day/Night | Color |
| OSD Menu | YES |
| WDR | YES |
| UTC | YES |
| Noise Reduction | 3DNR |
| White Balance | AUTO / MANUAL |
| Gain Control | AUTO |
| Housing | IP67 |
| Bracket | NO |
| Operation Temperature | -10℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%,550mA |
| Dimension | ￠109 x 93(H) mm |
| Weight | 800g |
