Acegear | SKU:
AGCT2502IR

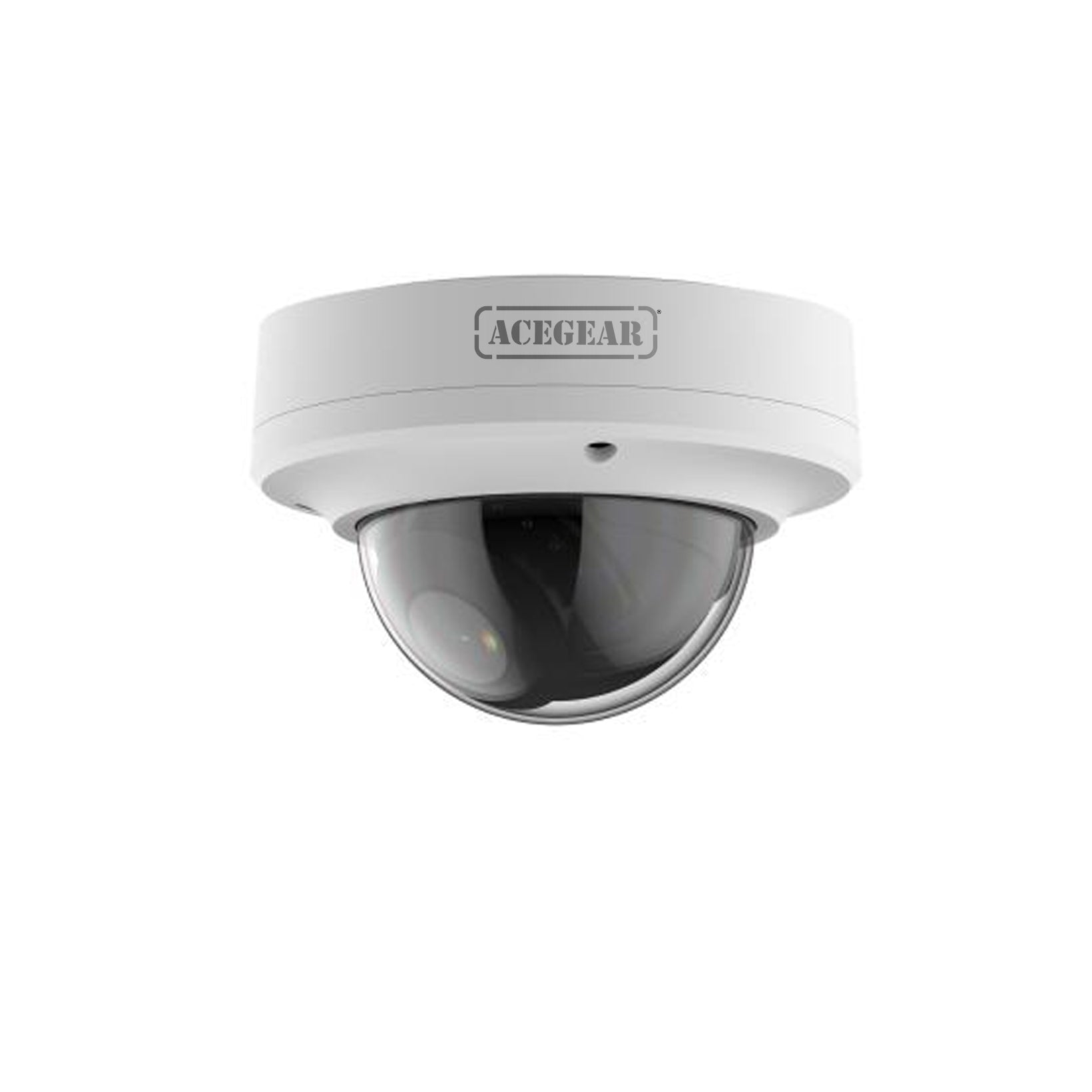

Acegear CT2502IR (5MP)TVI, Vandal Proof, 2.8mm Lens,IR 50ft
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Acegear CT2502IR (5MP)TVI, Vandal Proof, 2.8mm Lens,IR 50ft is backordered and will ship as soon as it is back in stock.
Description
Description
- 1/3"CMOS Sensor;
- Minimum Illumination：0.03 lux, Infrared Distance：15M；
- Support OSD Menu;
- Support DWDR;
- Housing: Metal,IP67,IK10
Specifications
|
Camera
|
||
|
Image Sensor
|
1/3" CMOS Sensor
|
|
|
Image Resolution
|
5M:2592*1944 4M:2560*1440 2M:1920*1080
|
|
|
TV System
|
PAL/NTSC
|
|
|
Electronic Shutter
|
Auto
|
|
|
Minimun Illumination
|
Color : 0.03 lux@F2.0, AGC ON; B/W : 0 lux with IR
|
|
|
Scanning System
|
Progressive Scan
|
|
|
Lens
|
||
|
Focus Length
|
3.6mm
|
|
|
Focus Control
|
Fixed
|
|
|
Lens Type
|
Fixed
|
|
|
Night Vision
|
||
|
IR Cut Filter
|
YES
|
|
|
Infrared LED
|
14µ x 12PCS
|
|
|
Infrared Distance
|
15M
|
|
|
IR Status
|
AGC Auto Control
|
|
|
Camera Features
|
||
|
Starlight
|
N/A
|
|
|
Day/Night
|
YES
|
|
|
OSD Menu
|
YES
|
|
|
WDR
|
DWDR
|
|
|
UTC
|
YES
|
|
|
Noise Reduction
|
DNR
|
|
|
Coaxial Audio
|
YES(only TVI )
|
|
|
White Balance
|
AUTO / MANUAL
|
|
|
Gain Control
|
AUTO
|
|
|
General
|
||
|
Housing
|
Metal, IP67,IK10
|
|
|
Bracket
|
NO
|
|
|
Operation Temperature
|
-10℃ ~ +60℃ RH95% Max
|
|
|
Storage Temperature
|
-20℃ ~ +60℃ RH95% Max
|
|
|
Power Source
|
DC12V±10%, 450mA
|
|
|
Dimension
|
￠98 x 72(H) mm
|
|
|
Weight
|
400g
|
|
