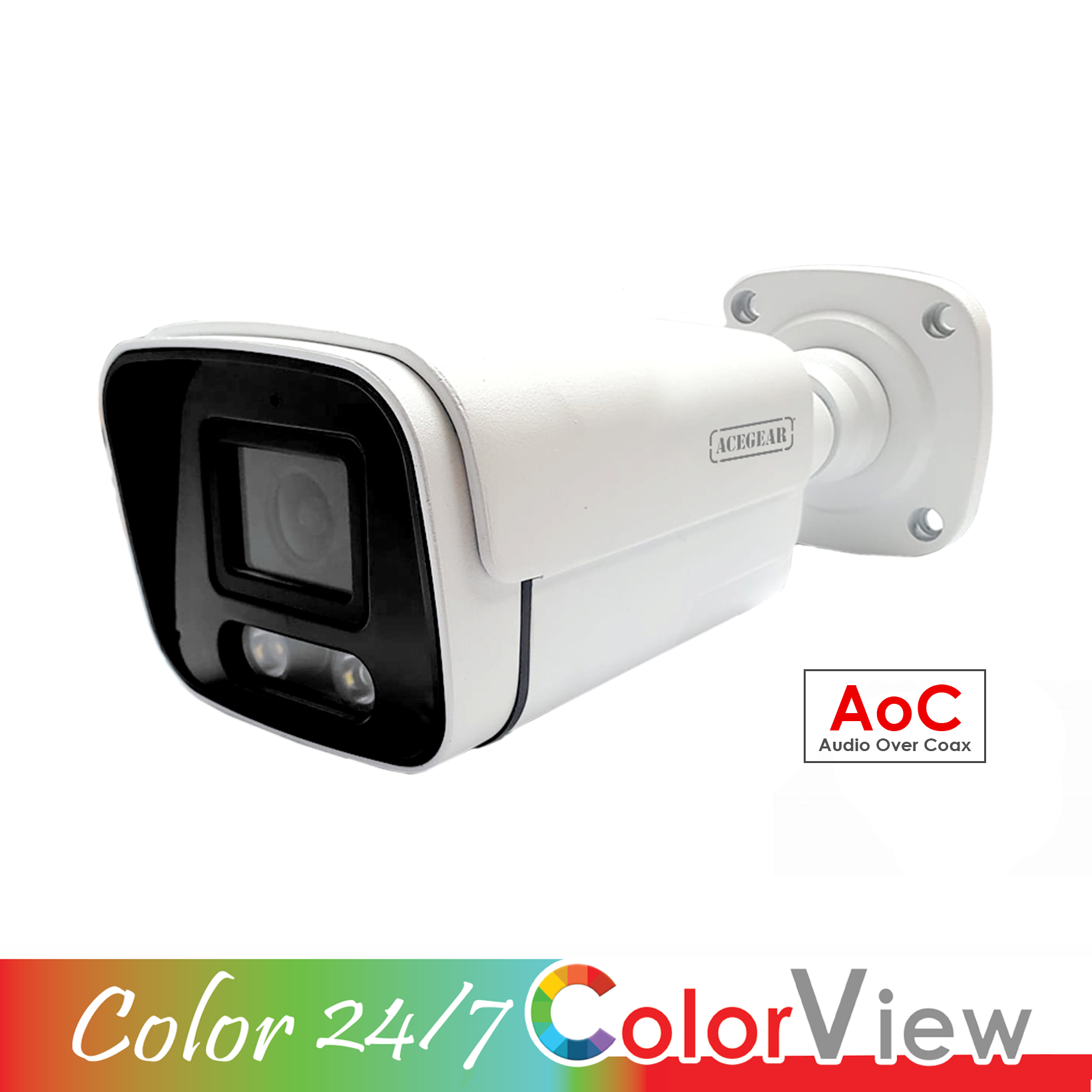

Acegear CT3207CV-AOC (2MP) Bullet, TVI/AHD/CVI/CVBS/ 2.8mm Fixed Lens, Color View 50ft. WDR, AOC.

by Acegear
SKU AGCT3207CV-AOC
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • Resolution: 2 MP High Resolution
  • Sensor: 1/2.9" 2.0 Megapixel CMOS
  • Lens: 2.8mm Fixed
  • Functions: WDR, 3DNR, Defog
  • IR: Smart IR
  • Menu: OSD
  • Light Distance: Up to 25m (82ft)
  • Audio: Audio over coax
  • Multiprotocol Output: HD Switchable TVI / AHD / CVI / CVBS (analog 960H)
  • Protection: IP66
  • Warranty: 3 Years

Acegear CT3207CV-AOC ColorView Outdoor Fixed Bullet Camera features an ƒ/1.0 lens aperture for maximum light gathering capability to provide full color imaging in extremely dark settings.

The camera also contains a powerful auxiliary white light source to enhance colors and illuminate the scene when it approaches total darkness or on a defined schedule. The 2.8 mm fixed lens option is optimized for capturing a wide horizontal field of view.

120 dB True WDR (Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions.

Image Sensor 1/2.9" 2.0 Megapixel CMOS
Signal System PAL/NTSC
Effective Pixels 1920 x 1080
HD Video Output 1 analog HD output
Lens 2.8mm 104° angle of view
Focus mode Fixed
Lens mount M16
Adjustment 3-axis Pan 0° ~ 360°, Tilt 0° ~ 180°, Rotation 0° ~ 360°
Day/Night Color
Video frame rate 1080p @ 25 fps / 1080p @ 30 fps ( PAL / NTSC)
S/N Ratio > 50dB
Operating Conditions -20 °C ~ 70 °C (-4 °F ~ 158 °F)
Humidity 90% or less (non-condensing)
Power Supply 12VDC ± 15%
Power Consumption Max. 4W
Protection Level IP66
Audio TVI
IR Range Up to 50 ft. (15 m.)
Warranty 36 mo. with proof of purchase *exclusion apply (see warranty terms for details).
Dimensions 181.08 mm × 70.17 mm × 58.79 mm
Building Material

Enclosure Metal

Main body Metal

Weight 0.75 lb. (340 g.)
