Acegear  |  SKU: AGCTPIR4MPAOC

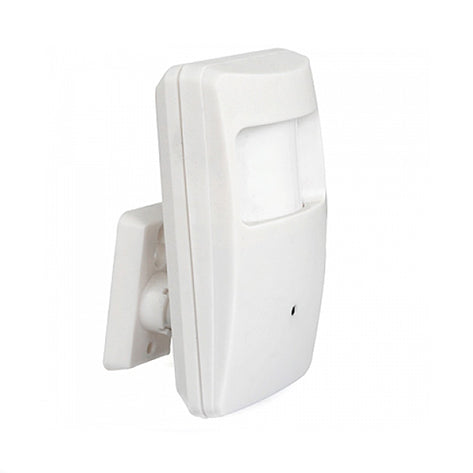

Acegear CTPIR4MPAOC, Spy Camera Pinhole 4MP (Motion Detector STYLE) with (AUDIO OVER COAX)

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

Log in Apply to Become a Dealer

Description
  • Sensor: 1/2.9" 4 MP High Performance CMOS
  • Resolution: 4MP 2560*1440 HD Video output
  • Lens: 3.7MM Pinhole lens
  • Functions: 3D DNR
  • Menu: OSD
  • Multiprotocol Output: TVI/AHD/CVI/CVBS
  • Audio: Audio Over Coax (AOC)
  • Protection: Indoor use
  • Warranty: 3 Years
Features

Acegear CTPIR4MPAOC is a 4MP HD-Color Spy Camera in a PIR motion detector housing with Built-in Audio. The 3.7mm fixed pinhole lens provides a wide angle of view that is ideal for most applications. The best choice for hidden spy surveillance in high definition with audio.

Specifications
Image Sensor 4 MP progressive scan CMOS
Max. Image Resolution 2560 (H) — 1440 (V)
Min. Illumination Color: 0.02 lux @ (f/1.4, AGC on)
Day/Night Auto(ICR)/Color/ White Black
Slow shutter 1/25s~1/45,000s
Lens 3.7 mm, HD PinHole Lens
Aperture Æ’/1.4
Focus Fixed
Image Mode STD/High Saturation
AGC Yes
White Balance Auto/Manual
BLC (Backlight Compensation) Yes
Functions Brightness, sharpness, 3D DNR, mirror
Video Output Switchable TVI/AHD/CVI/CVBS
Audio AOC @ TVI mode
Operating Conditions -20℃～+70℃, Less than 95%RH (No condensation）
Power Supply DC12V±10﹪
Material Main body: Plastic, mounting base: plastic
Communication Up-the-Coax
Dimensions H 4.33" x 2.40" (H 110 mm x W 61 mm)
