Acegear DVR4K16SAT2, 16-Channels, (4K 1CH - 4CH), With 16 BNC Plus 8 IP, Long Transmission Over Coax, Audio over Coax, 2 SATA

by Acegear
SKU AGDVR4K16SAT2
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
  • Support audio over coaxial cable
  • 16-channel BNC input
  • Up to (4K 1CH - 4CH) resolution for recording
  • Support 1-ch HDMI output at up to 4K, 1-ch VGA output at up to 1920*1080
  • Long transmission distance over coaxial cable

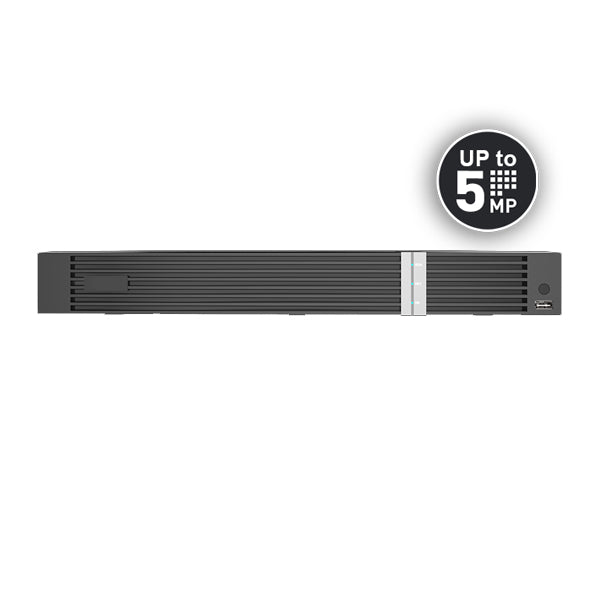

The AGDVR4K16SAT2 16 Channel DVR, is a professional Digital Video Recorder with 16 BNC Inputs plus 8 IP Channels for a total of 24 Channel Operation. Advanced features include Long Range Video Transmission and multiple format support.

Accept HD BNC Cameras up to 8MP Resolution and can support TVI, AHD, CVI, CVBS and IP Formats, therefore the DVR is adaptable to multiple applications.

The DVR has (2) SATA Bay with 6TB capacity so it will provide plenty of storage for you.

Analog Video Input 16CH BNC interface (1.0 Vp-p, 75 Ω)
HDTVI Input

8MP@15fps (Ch1-Ch4)
5MP@20fps
4MP@30fps
3MP@20fps (Ch1-Ch4)
1080P@30fps
720P@60fps

AHD Input 8MP@15fps (Ch1-Ch4)
5MP@20fps
4MP@30fps
3MP@30fps (Ch1-Ch4)
1080P@30fps
720P@60fps
HDCVI Input 8MP@15fps (Ch1-Ch4)
4MP@30fps
1080P@30fps
720P@60fps
CVBS Input Support
IP Video Input 8-ch (only IP up to 24ch), each channel up to 4K
Audio Compression G.711u
Audio Input/Two Way Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
HDMI/VGA Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Encoding Resolution 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF
Recording Frame Rate

Main stream:
8MP Lite@8fps (Ch1-Ch4)
5MP Lite@12fps
4MP Lite@15fps
3MP@15fps (Ch1-Ch4)
2MP@15fps
720P@30fps
Sub stream:
D1@30fps(Max)

Audio Output 1-ch, RCA (Linear, 1 KΩ)
Audio Bit Rate 64 kbps
Dual Stream Support
Stream Type Video, video & audio
Synchronous Playback 16CH
Incoming Bandwidth 56Mbps
Remote Connections 128
SATA 2 SATA interface
Capacity Up to 6 TB capacity for each HDD
Network Interface 1, RJ45 10M/100M self-adaptive Ethernet interface
USB Interface Rear panel:1 x USB3.0, Front panel:1xUSB2.0
Power Supply 12VDC
Consumption (Without HDD) ≤ 12 W
Working Temperature -10°C ~ + 55°C ( +14°F ~ +131°F )
Working Humidity 10% to 90%
Dimensions (WxDxH) 380mm ×318mm× 53.5mm (14.96" × 12.51"×2.1")
Warranty 12 mo. with proof of purchase *exclusion apply (see warranty terms for details).
Weight (Without HDD) ≤2.0 Kg (4.4lb)
