Acegear EXTPOE POE Extender (Each)

by Acegear
SKU AGEXTPOE
ID: 12963607216200




This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

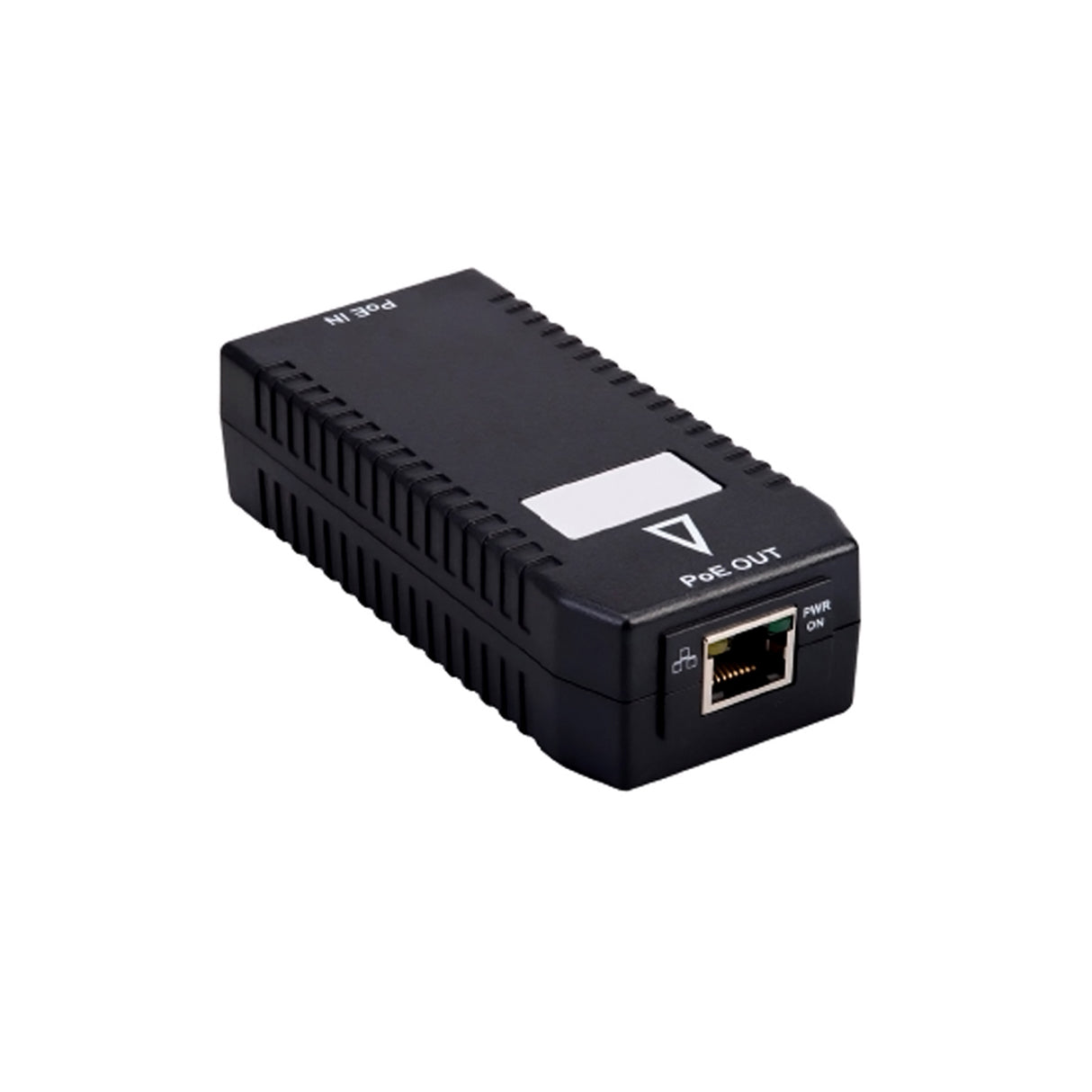

PoE Extender 15.4W IEEE 802.3af ,Ethernet signals to 200ft

PoE extender can extend power and ethernet signals to 200ft over UTP cable to connect PD devices compatible with IEEE802.3 af/at (such as IP camera) and supply power to PD devices compatible with IEEE802.3af/at. This POE extender is widely used in video surveillance and office net cabling system.

  • Provide two ports : one PoE input and one PoE output
  • Bandwidth: 10/100Mbps
  • Input Voltage: 48-57V
  • Complies withIEEE802.3 10BASE-T,IEEE802.3u 100BASE-TX/100BASE-FX,IEEE802.3az,IEEE802.3af
  • Easy to install and operate on walls or on the desktops.
  • Support overheating and short circuit protection as well as over-voltage and over-load protection.
  • Ports: 1-CH
  • Transmission Rate: 10/100Mbps
  • Function: POE Communication Mode:
  • Full-Duplex & Half-Duplex Certification: CE RoHS FCC
  • Switch Capacity:100mbps Brand Name:Folksafe Model Number: FS-PSE1001-E10
  • Place of Origin: Guangdong, China (Mainland) Port: Port
  • Transmission Media: Cat5e/6
  • standard UTP cable Output Wattage:15.4w(max)
  • Bandwidth: 10/100Mbps
  • Standard: IEEE802.3 10BASE-T,IEEE802.3u 100BASE-TX/100BASE-FX,IEEE802.3az
  • Status Indicator: PoE Indicator, Link/ActIndicator
  • Dimensions (L*W*H): 83.0*51.5*24.0mm Weight:88.6g Working Temperature: -10℃~55℃
  • Size: 2.6 x 0.9 x 3.66 in
  • Weight: 0.50 Lbs
