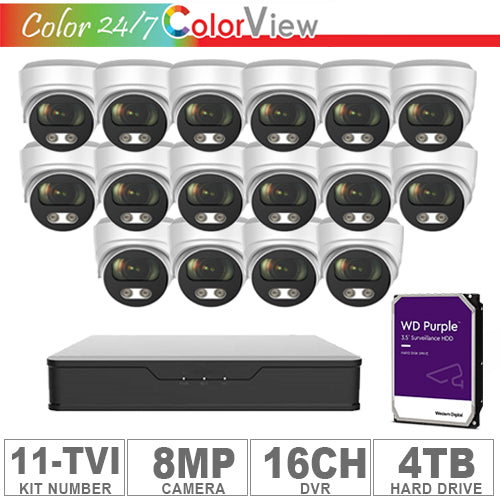

Acegear KIT-11-TVI (16 Cameras TVI 8MP + 1-WD/4-TB + 1-DVR/16-CH)

by Acegear
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • Video Input: 8 channel BNC input +4 IP channel up to 8MP/4K
  • Resolution: Up to 8MP
  • Video Output: 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
  • Support: TVI, AHD, CVI, CVBS, IP cameras with adaptive access
  • Hard Drive: 2 SATA Bays Up to 6TB each
  • Audio: 1ch output, 1ch two way input , Over Coax
  • App: Guard Viewer App
  • Warranty: 1 Year
  • Sensor: High quality image with 8MP, 1/2.7"CMOS sensor
  • Resolution: 8MP /4K
  • Lens: 2.8mm Fixed
  • Functions: 3D DNR , WDR, 9:16 Corridor Mode
  • IR Range: Smart IR, up to 30m (98ft) IR distance
  • Menu: OSD
  • Audio: Built-in Mic and Speaker
  • Micro SD:  Supports 256GB Micro SD card
  • Power: Support PoE power supply or DC 12V±25%
  • Protection: IP67
  • Warranty: 3 Years
Capacity 4 TB
Cache Memory Installed Size 64 MB
Disk Speed (RPM) 5,400 rpm
Hard Disk Form Factor 3.5 in
Hardware Connectivity SATA 6.0 Gb/s
Dimensions (L x W x H) 5.79" x 4" x 1.03"
Compatibility WD Purple™ surveillance storage is built to handle up to 64 cameras per drive and is designed for 24/7, always on, high-definition surveillance security systems with more than eight bays.
Item Weight 0.99 lb
