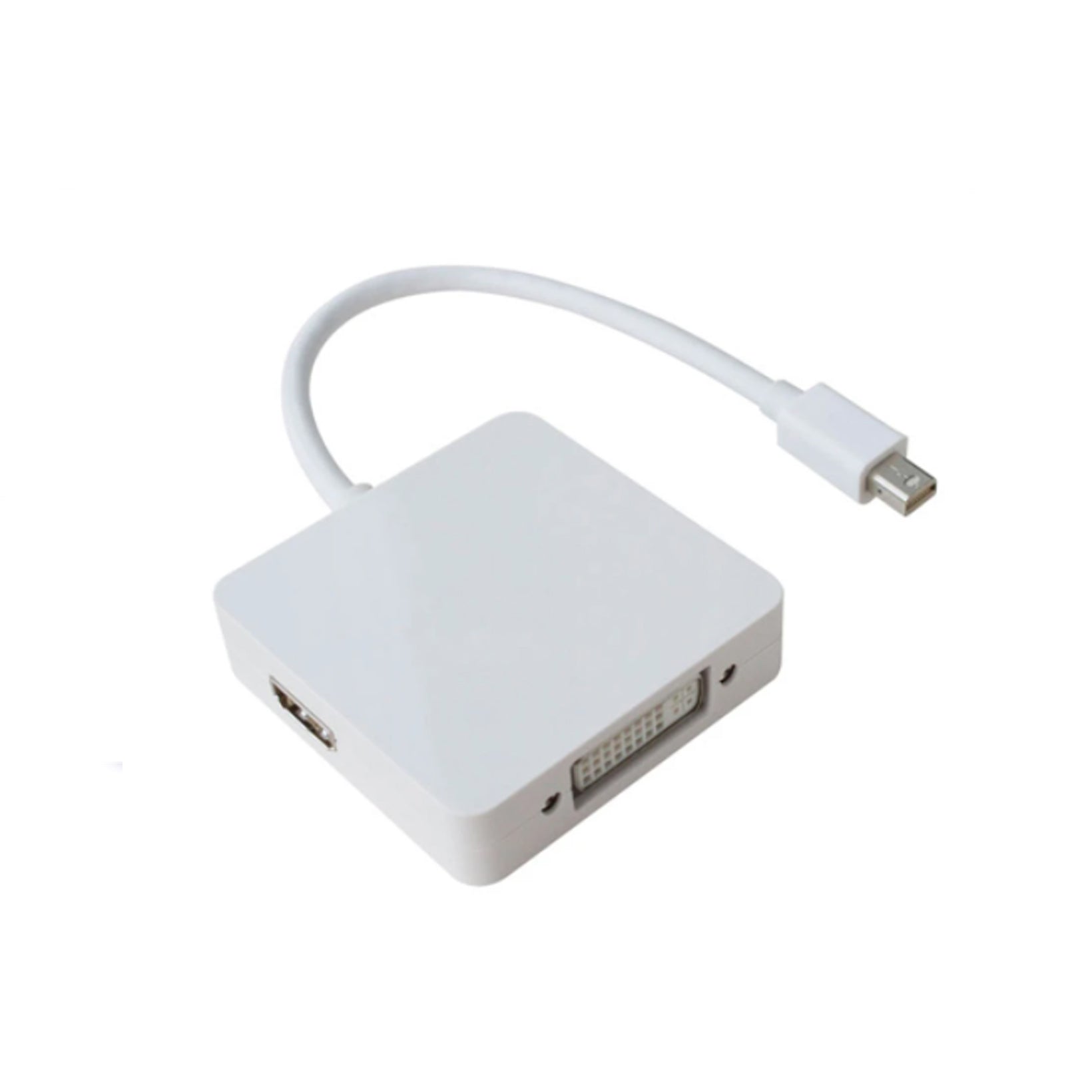

Acegear MDP3IN1 3in-1 Mini DisplayPort (Thunderbolt) Male to HDMI/DisplayPort/DVI Female Adapter

by Acegear
SKU AGMDP3IN1
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

3 in-1 Mini DisplayPort (Thunderbolt) Male to HDMI/DisplayPort/DVI Female Adapter.

* Input Interface: Mini DisplayPort Male 20pin

* Output Interface: HDMI Female 19Pin, DVI Female (24+5), and DisplayPort 20Pin

  1. MINI DISPLAYPORT MALE TO DVI (24+5) FEMALE

* Supports Signal Transmission From DisplayPort to DVI
* DVI Resolution: 1920 x 1080P
* DVI 225mHZ / 2.25Gbps Per Channel / 6.75Gbps All Channels
* Supports One-way, Single-channel, Four-wire Connections

  1. MINI DISPLAYPORT MALE TO HDMI FEMALE

    * Supports Mini DisplayPort 1.1a Input and HDMI1.3b Output
    * Supports HDMI Highest Video Resolution 1080p
    * Supports HDMI 225MHz / 2.25Gbps Per Channel (6.75Gbps All Channels) Bandwidth
    * Supports HDMI 12bit Per Channel (36bit All Channels) Deep Color
    * Supports Uncompressed Audio Such as LPCM

III. MINI DISPLAYPORT MALE TO DISPLAYPORT FEMALE

* Displayport Resolution: 1920 x 1200
* Input Video Signal:5 Volts p-p (TTL)
* HDMI/DVI Maximum Single Link Range: 1920 x 1080P @ 60Hz
* DisplayPort Maximum Single Link Range: 1920 x 1200 @ 60Hz
* HDMI/DVI Video Amplifier Bandwidth: 2.25Gbps / 225MHz
* DisplayPort Video Amplifier Bandwidth: 2.7Gbps / 270MHz

* HDMI/DVI Resolution:480i, 480p, 576i, 576p, 720p, 1080i, 1080p
* HDMI/DVI Resolution:1280*1024, 1360*768, 1920*1080, 1920*1200
* Operating Temperature: 0 to +70
* Operating Humidity: 10% to 85 % RH (Non Condensing )
* Adapter Size: 2.25" x 2.25" x 0.5"
* Attached Cable Length: 6-Inches

Hardware Requirement

* MacBook Pro
* MacBook Air
* MacBook
* Mac Mini
* Mac Pro
* iMac
