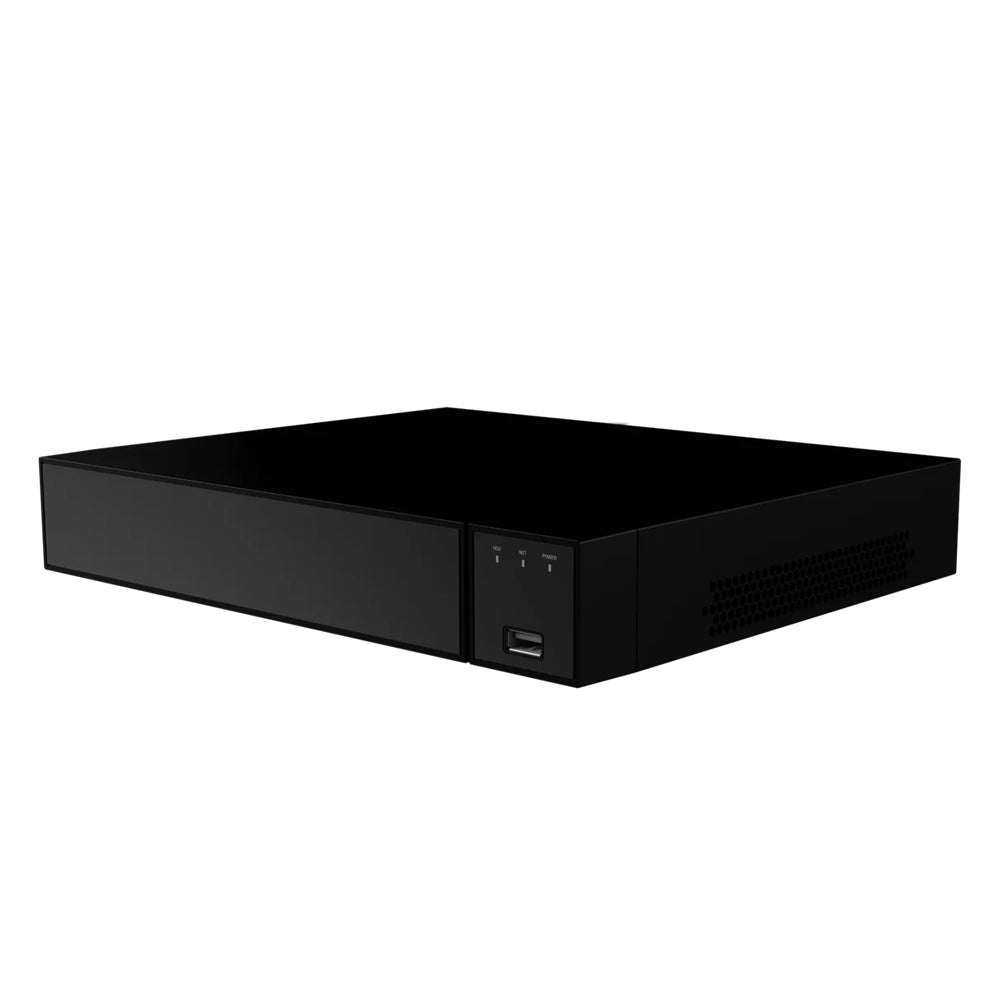

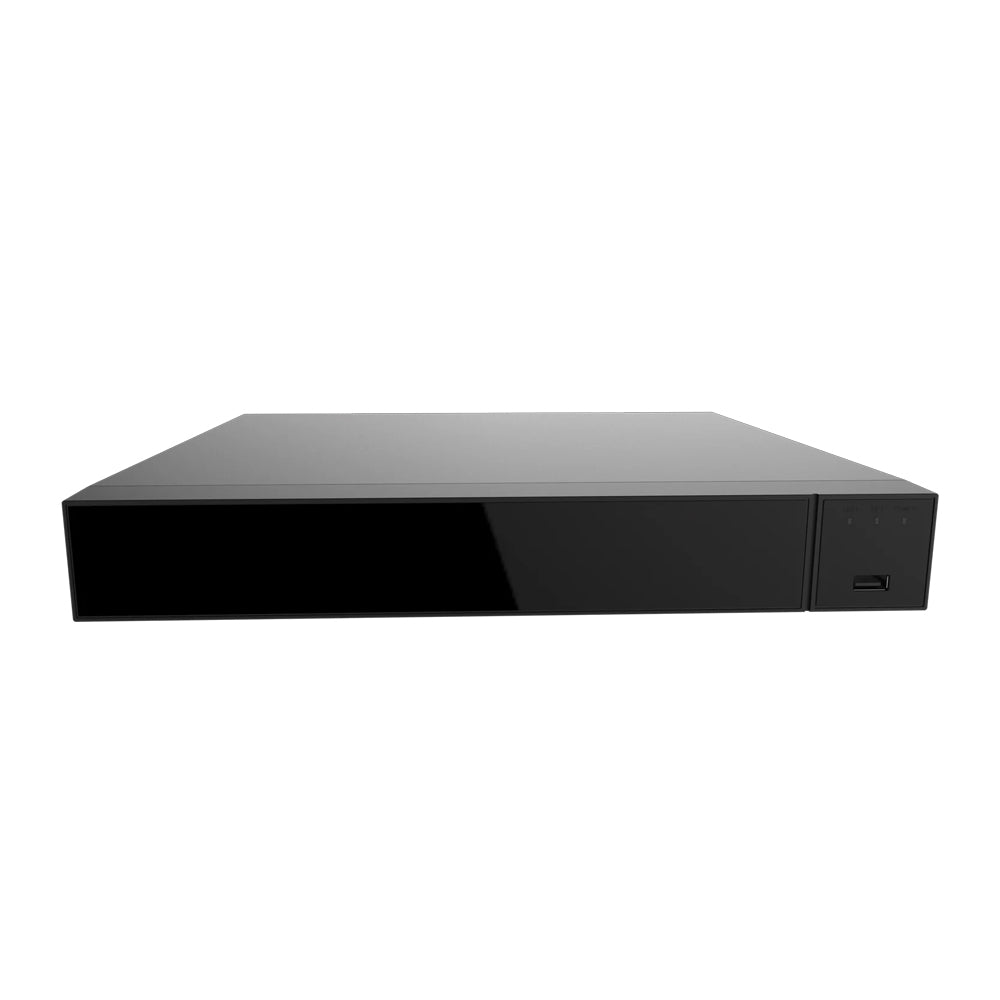

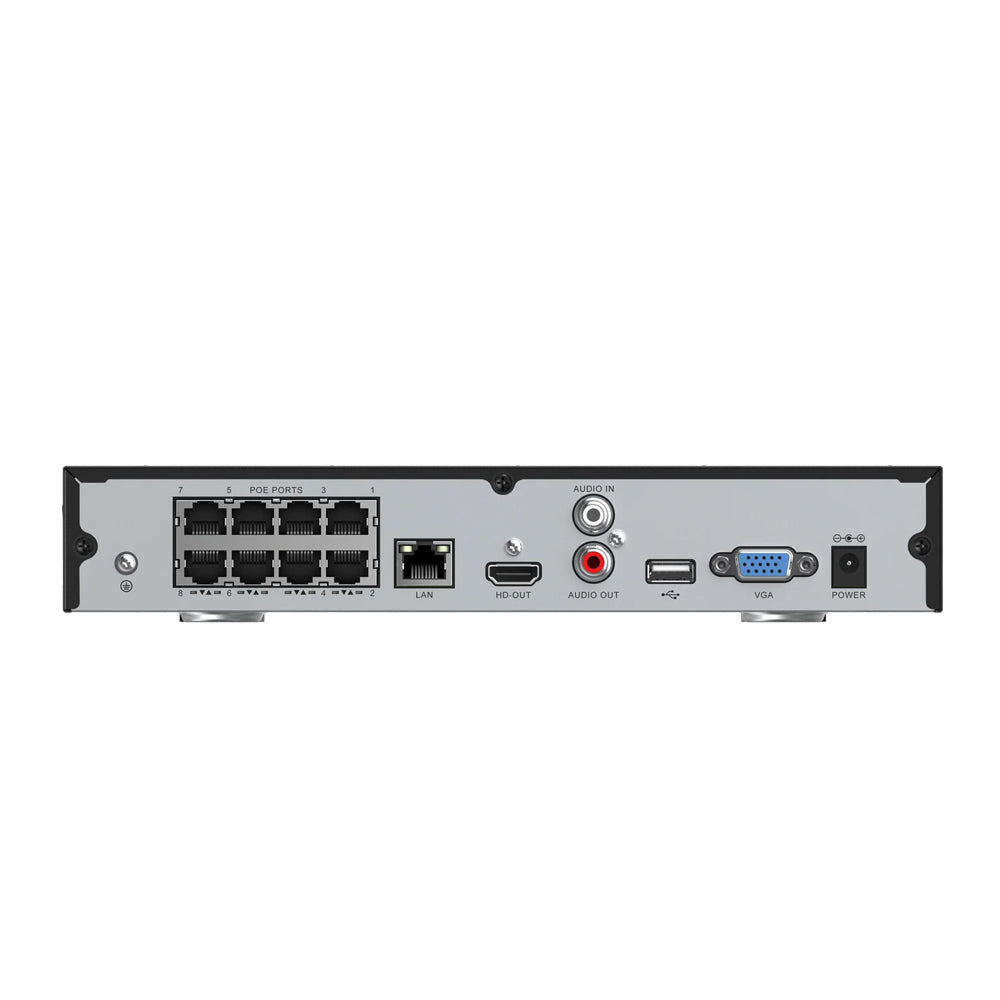

Acegear NR-K116H-P8, NVR (16CH) 1-SATA Interface, 8 PoE, 4K AI Lite

System

Main Processor

Quad Cortex A53

Operating System

Embedded LINUX

Video

Input

32CH(12MP/8MP/6MP/5MP/4MP/3MP/1080p/1280×1024/960p/720p/D1/CIF)

Output

1*HD,1*VGA

Audio

Input

1 Port RCA, support 32CH IPC audio input

Output

1 Port RCA(Linear, 1kΩ), HD output

Audio Bit Rate

64kbps

Audio Compression standard

G711U, G711A, AAC, MP2L2

Intercom

support (two-way)

Alarm

Sensor Input

4CH

Output

1CH

Motion Detection

32Channel, MD Zones: 396 (22 × 18)

Trigger Events

Recording, Email, FTP, Snapshot and Screen Tips, Pop-up Window, Buzzer, Notify Surveillance Center, Alarm Output

Display

HD Output1

4K(3840*2160)/2K(2560*1440)/1920*1080/1280*1024/1280*720/1024*768

HD Output2

N/A

VGA

Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Display Split

36CH/25CH/17CH/16CH/13CH/10CH/9CH/8CH/6CH/4CH/2CH/1CH

Digital Zoom

YES

OSD

Camera Title, Time, Recording, Motion Detection, Event Alarm

Recording

Video Compression

H265/H264/H265+/H264+

Resolution

12MP(4000*3000),8MP(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280×960),720P(1280×720),D1 (720×576/720×480)

Record Rate

PAL :12MP@32CHx25fps,8MP@32CHx25fps,5MP@32CH×25fpss,4MP@32CHx25fps,3MP@32CH×25fps,1080P@32CH×25fps, 960P@32CH×25fps,720P@32CH×25fps, D1@32CH×25fps
NTSC: 12MP@32CHx30fps,8MP@32CHx30fps,5MP@32CH×30fps,4MP@32CH×30fps,3MP@32CH×30fps,1080P@32CH×30fps, 960P@32CH×30fps, 720P@32CH×30fps, D1@32CH×30fps

Record Mode

Manual\Timer\Motion Detection\ Alarm\Smart Event

Playback & Backup

Local Sync Playback

2CH 12MP@30fps,4CH 8MP@30fps,6CH 5MP@30fps,8CH 4MP@30fps, 16CH 1080P@30fps, 16CH 960P@30fps, 16CH 720P@30fps,16CH D1@30fps

Decode Capability

1080P(1920×1080)@480fps

Remote Sync Playback

YES

Search Mode

ALL, Timing Video, Motion Detection, Alarm,Tag  search,Smart Event,Pictrue,Log

Playback Functions

Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio

Backup Mode

USB Device/Network

Network

Interface

1xRJ45 10M/100/1000MAdaptive Ethernet Interface

Incoming Bandwidth

320Mbps

Outgoing Bandwidth

160Mbps

Network Functions

IPv6,TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE

Onvif

Profile S, Profile T

Web Browser

Edge,IE8-11, Google Chrome , Firefox ,Safari

CMS Software

Support  Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS

Cloud Support

Yes

Smart Phone

iPhone,  Android

POE

16 x Independent 100Mbps POE Network Interfaces(Output power AF mode 15W per port), 45/78 line order, Total Power Output≤ 200W,  Support Plug and Play, Support network cable extended mode Max. 200M

WIFI

N/A

Storage

Interface Type

2 SATA Hard Disk Interface (3.5″ SATA)

Capacity

Up to 10 TB capacity for each HDD

eSATA

N/A

General

Language  UI

Simplified Chinese, Traditional Chinese, English, Polski, Czech, Arabic, German, French, Portuguese, Spanish, Italian, Hungarian, Korean, Dutch, Greek, Janpanese, Ukrainian, Kazakh

USB Interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

RS485

N/A

Power consumption

100-240VAC , 50/60Hz   ≤15W(Without Hard Disk and POE)

Working Environment

-10℃～50℃, 10%～90%(humidity)

Product Dimension(W×D×H)

380 x 316 x 51mm

Net Weight

2.58kg(without HDD)

Gross Weight

3.48≤ kg(without HDD)
