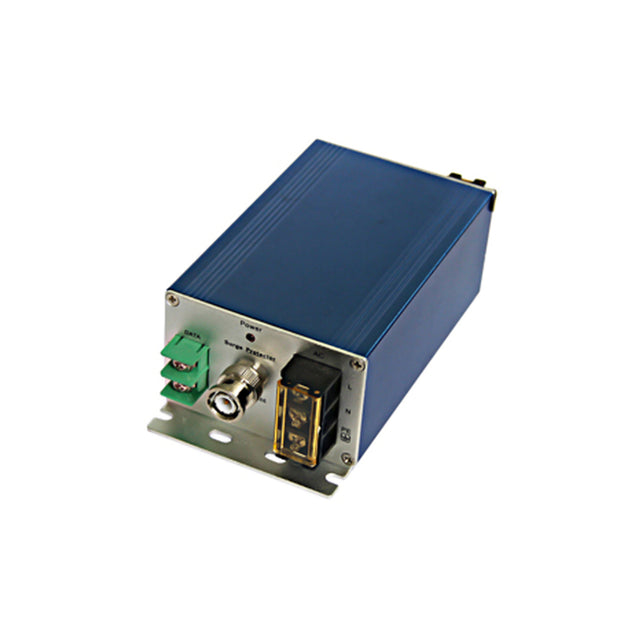

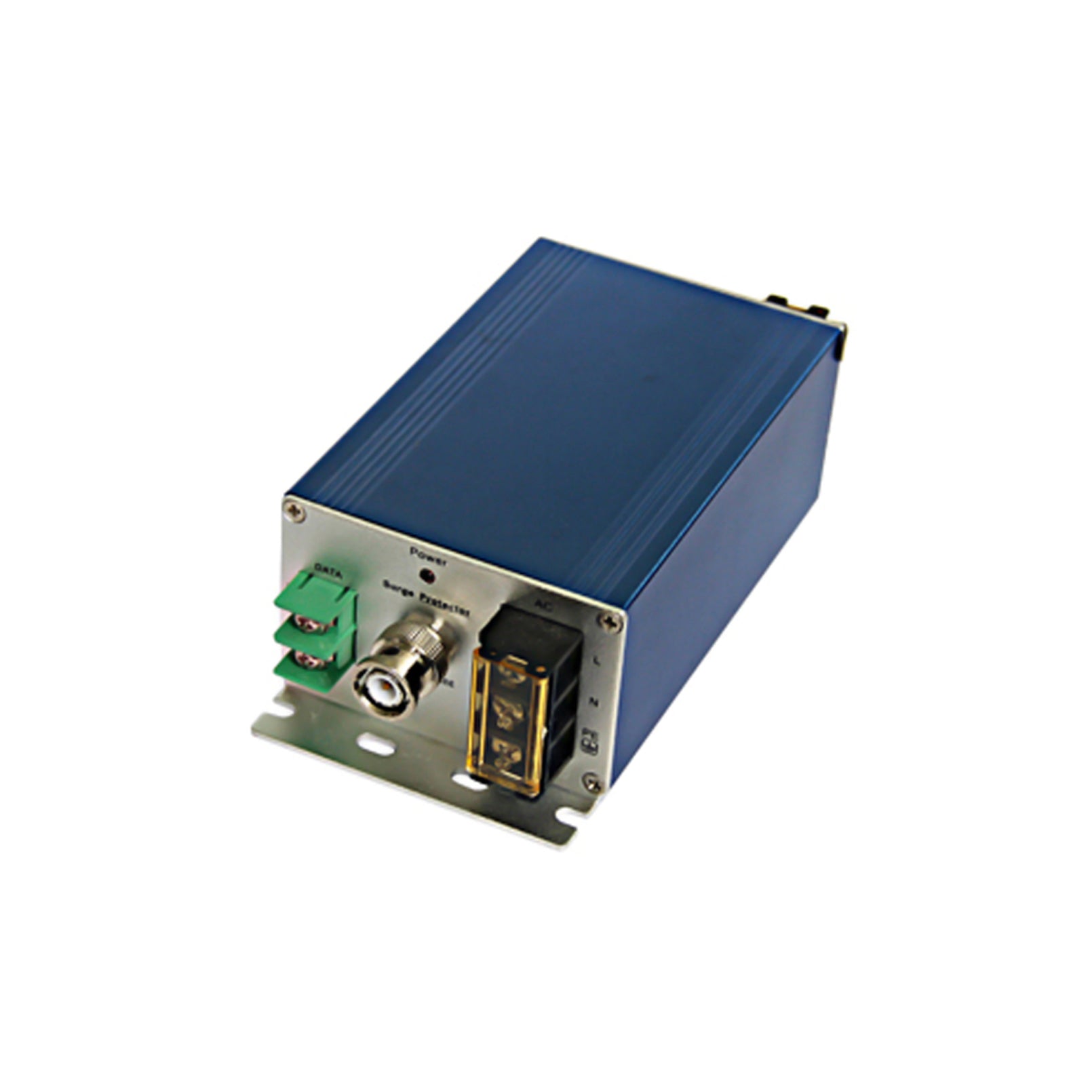

Acegear SPVDP24 Video Power and Data Surge Protector, 24V

by Acegear
SKU AGSPVDP24
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

CCTV Camera Video Power and Data Surge Protector

It is used to protect the Power supply, Video and RS485 data of surveillance cameras from surge damage by increase of potential difference between different devices when there is induction lightning strike.

  • Power, video & data surge protector
  • Protect those valuable speed domes with ease
  • Built in transient protection
  • Protects BNC Video, Cabled Power and Data
Nominal Voltage UN 5V
Max. Continuous DC Voltage UC 8V
Max. Through Flow Rate 5KA
Max. DataTransmission Speed VS 20M
Insertion Loss ≤ 0.3dB
Response time ≤ 1ns
Impedance 75Ω
Interface BNC
Working Voltage AC24V, AC220V, DC12V
Max. Continuous WorkingVoltage 30V, 320V, 18V
Max. Through Flow Rate 10KA
Response time ≤ 1ns
Interface terminal(L, N)
Data Type RS485
Working Voltage 5V
Max. Continuous WorkingVoltage. 8V
Max. Through Flow Rate 5KA
Max. DataTransmission Speed VS 20M
Response time ≤ 1ns
Interface Terminal(+, -)
Working Temperature -25º C~65º C
Working Humidity 5%-95%
