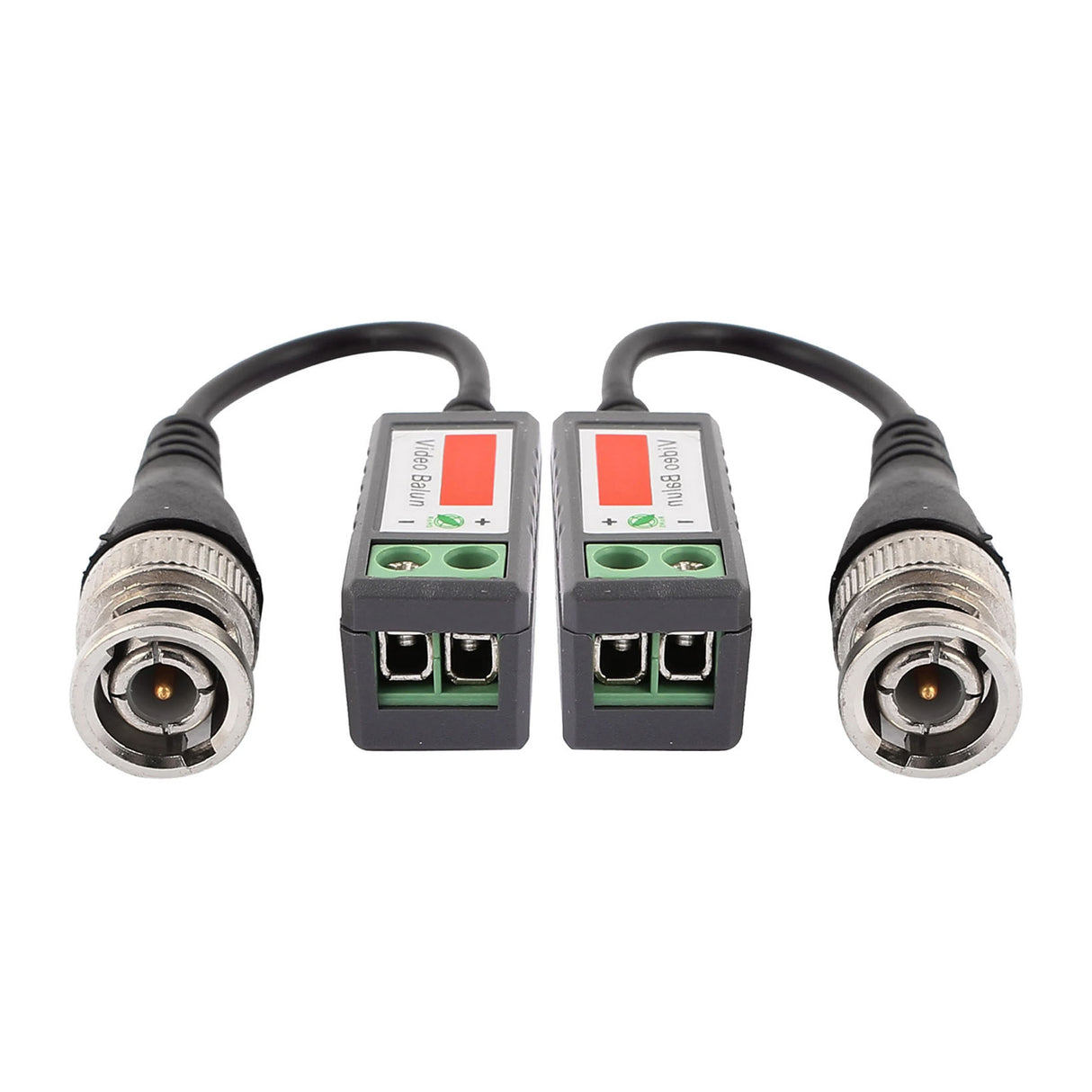

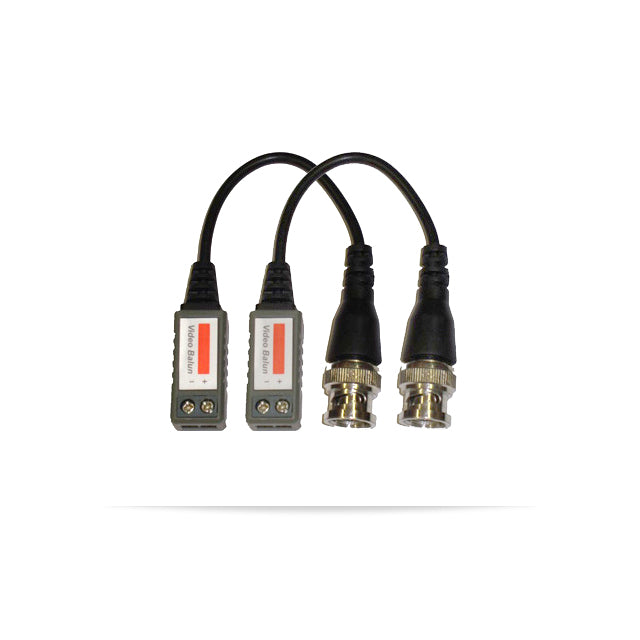

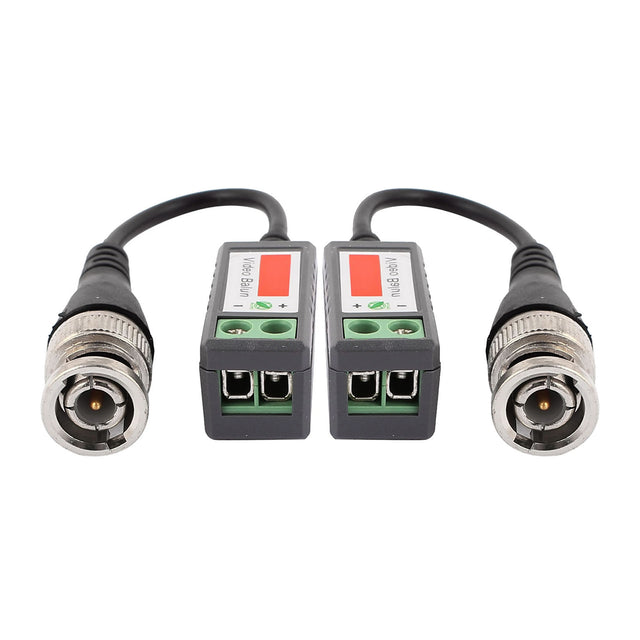

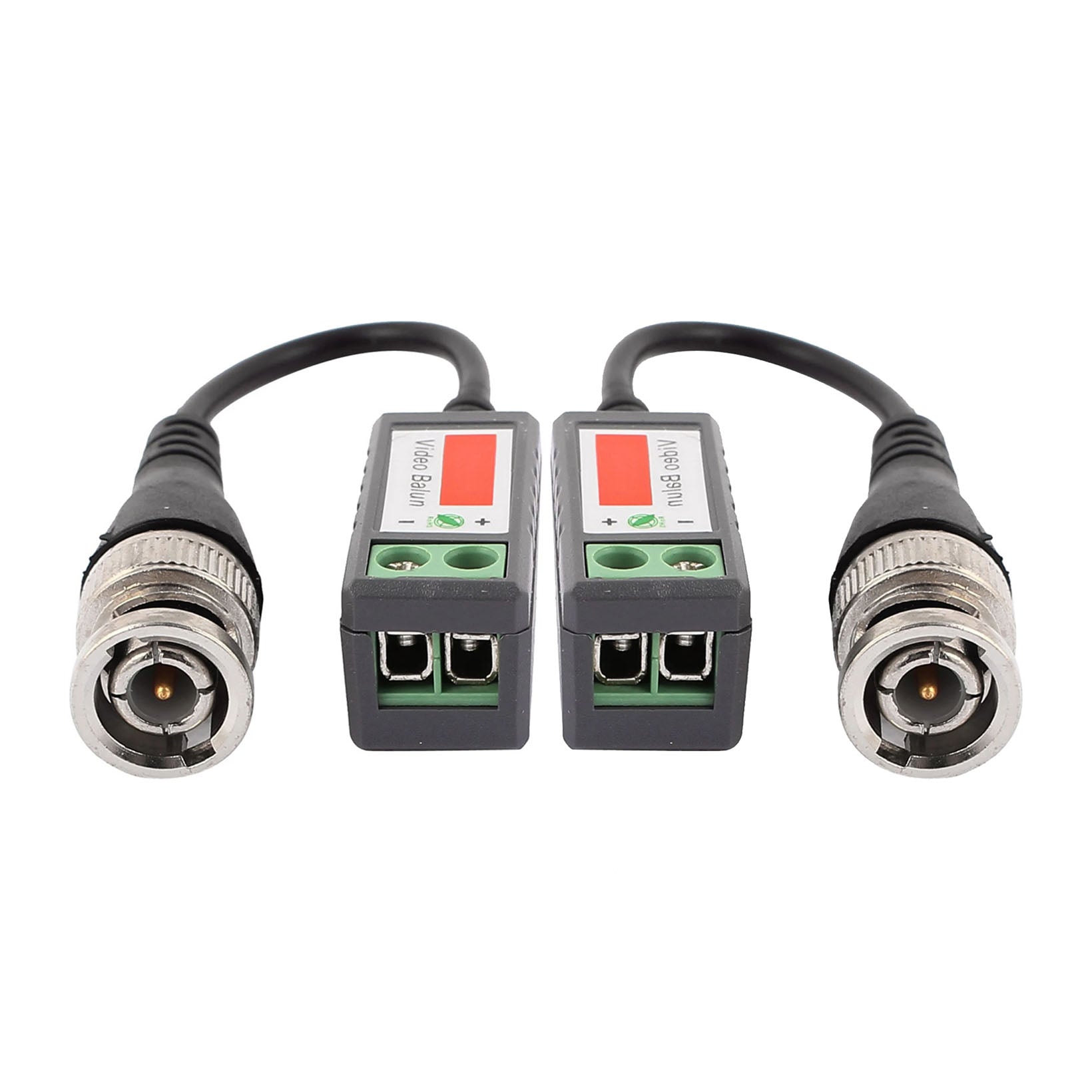

Acegear VB202P - VB2020P Video Balun Connectors (Pair).

by Acegear
SKU AGVB202P.PAIR
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

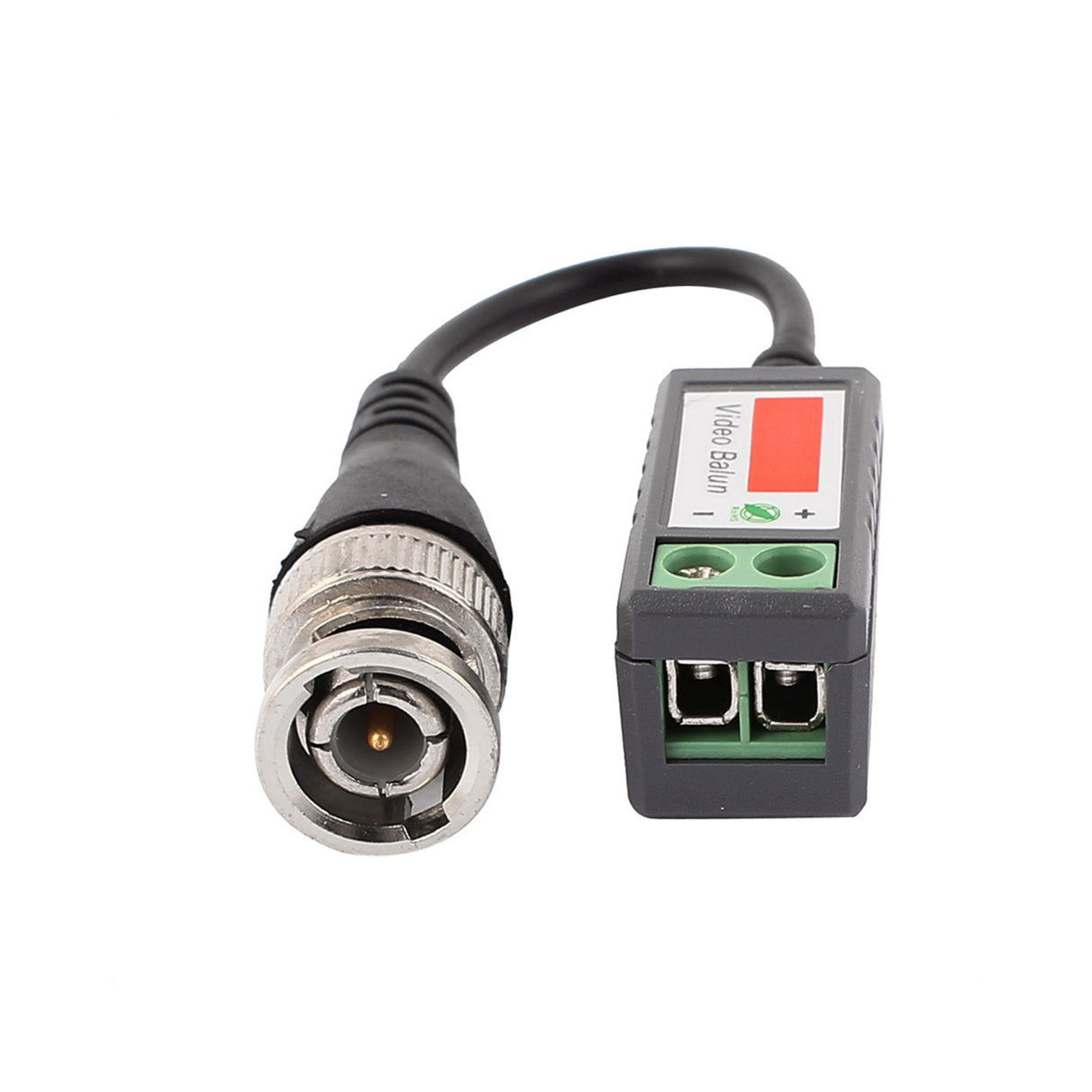

Video Balun Connectors Passive 1 ch  Video Transmitter

CCTV Camera Passive Video Balun BNC Connector Coaxial Cable Adapter

• Video Balun Compatible with HD-CVI / TVI / AHD/ CVBS Signal
• Transmission Signal: 720P/960P/1080P
• Cable: CAT 5/5e/6
• Transmission distance: TVI 100 meters (328ft), AHD 200 meters (656ft), CVBS 300 meters (984ft)
• Frequency response: DC to 60Mhz
• Attenuation: 0.5dB type
• CMRR: 60dB
• Surge protection:4KV
• ESD:8KV
• Connectors: Male BNC and
• Impedance: BNC: 75ohms
• Terminal: 100ohms
• Working Temperature: -10°C to +70°C
• Storage Temperature: -30°C to + 70°C
• Humidity : 0 to 95%
• Dimension: 14.5*1.5*1.5cm
• Material: PVC + Copper + Alloycement
        Package Weight 0.1 Lbs
        Box Dimensions (LxWxH) 2 x 2 x 1 in
