Acegear VB8MP02 - 8MP HD Attachable Design, Passive Balun, Level3 Lighting Protection, Support HD-CVI/AHD/TVI/CVBS Signal (Pair)

by Acegear
SKU AGVB8MP02
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

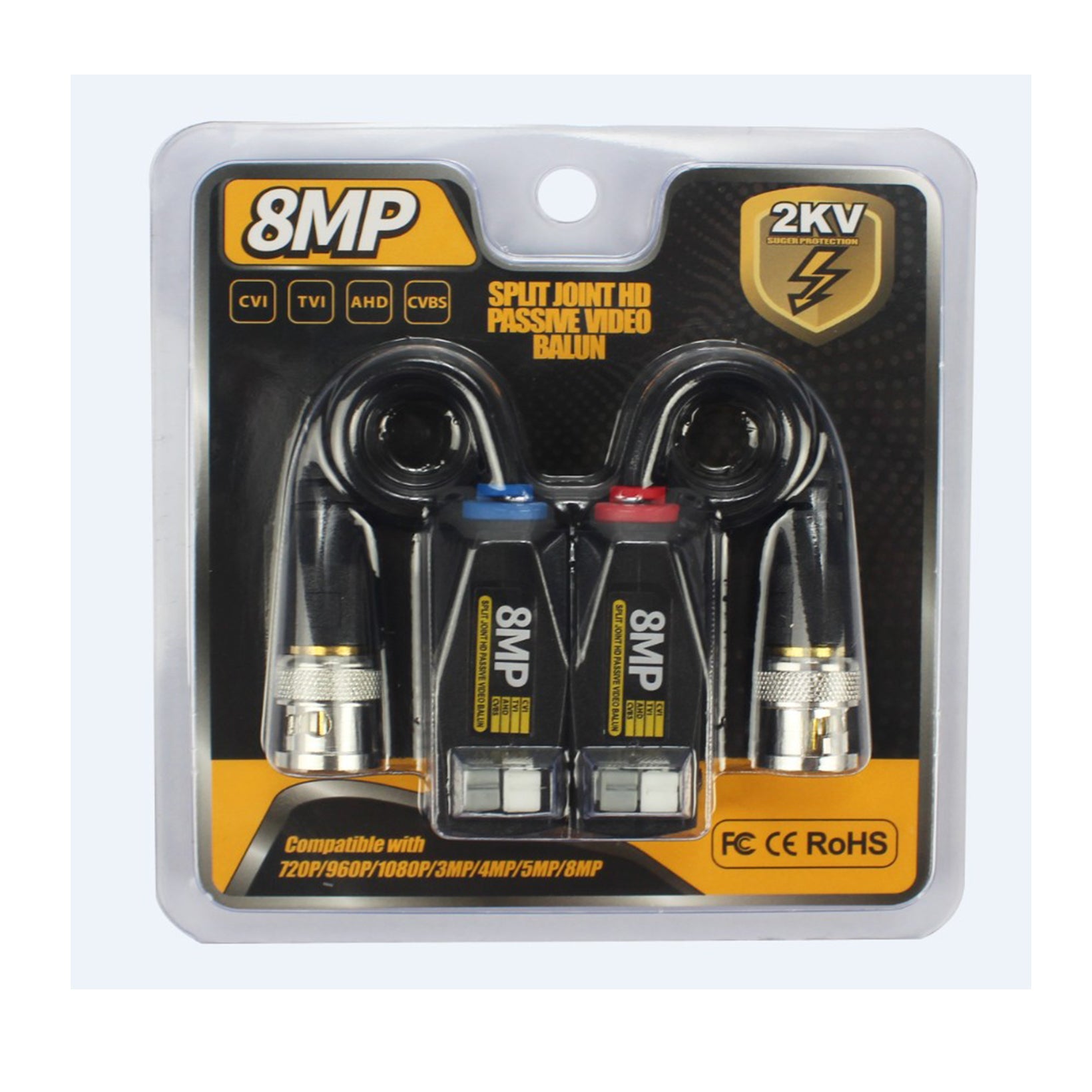

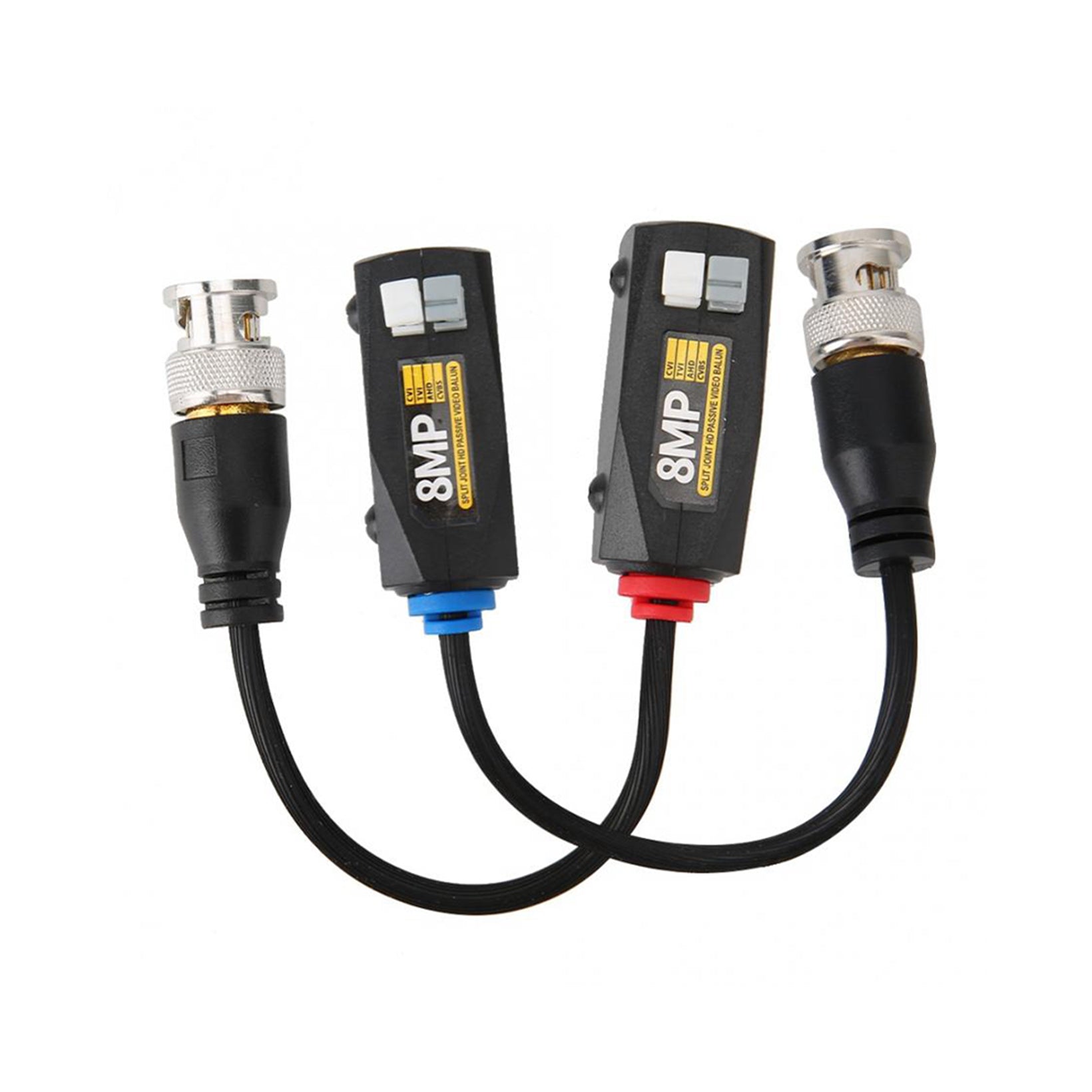

Acegear 8MP Single Channel Split Joint HD Video Balun

1Pair 10/100Mbps 1CH Passive IP Network Coaxial Transmitter Receiver Extender for IP NVR Camera, IP Network Transmitter, IP Network Receiver

  • Support for multiple splices, color separation of front-back ends.
  • Built-in TVS thunder-proof protective tube, thunder-proof protecting up to 3 level.
  • BNC head with built-in mesh clips for enhancing ground contact and better performance.
  • High Q coils for increasing 8MP signal passability, support HD-CVI/AHD/TVI/CVBS video signals.
  • Dual panel with printed circuit board material to reduce attenuation of high frequency signal.
  • No Power Required
  • Strackable for neat installtion
  • ABS engineering plastic housing
  • Exceptional interference rejection
  • 60dB crosstalk and noise immunity
  • Lightning protection design grade: III
  • Wave filter design anti-statit design

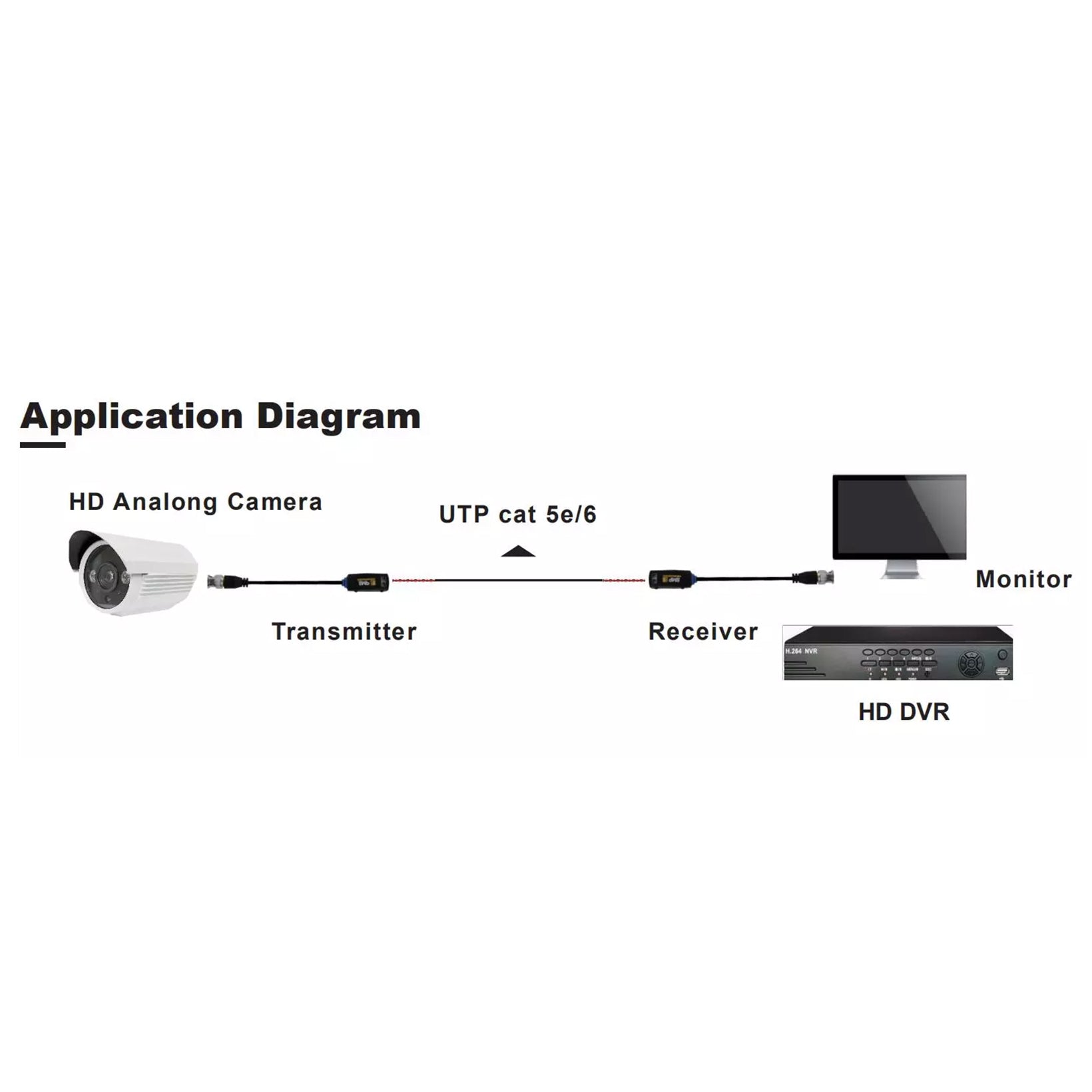

  • Real-time transmission over UTP CAT5E/S
  • Compatible with alll CVI/TVI/AHD/CVBS analog cameras
  • Built-in solid state TVS(Transient Voltage Suppressor) for surge Protection(2KV).
Material  ABS
Color Shown as picture
Thunder-proof Protecting Level 3
Compatible Video Signal HD-CVI/AHD/TVI/CVBS

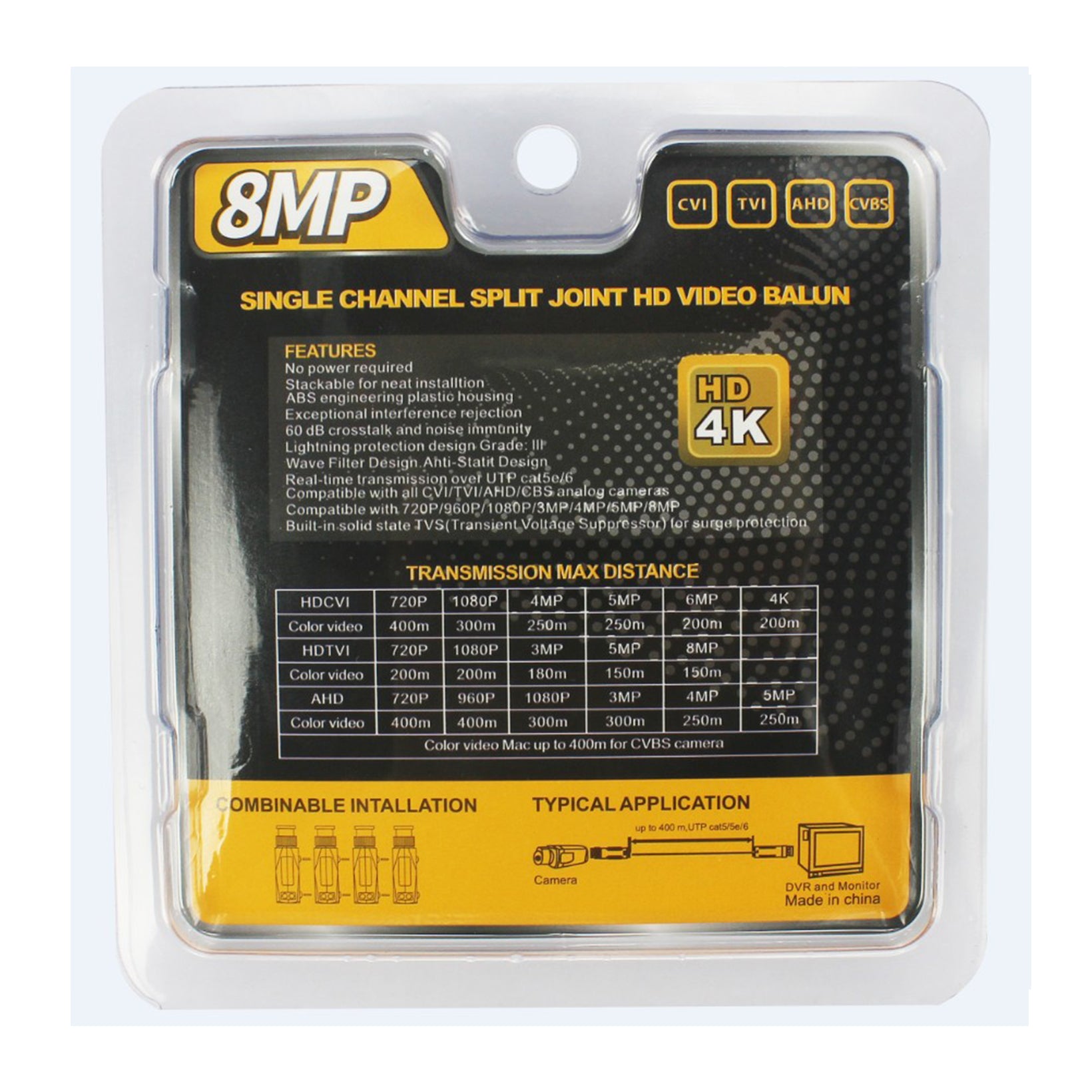

Transmission Distance 720P/960P/1080P?400M
3MP/4MP/5MP?250M
8MP?200M
Attenuation 1.5 dB typ Max
Category Type UTP cat5e/6
Impedance 100±20ohms
DC Loop Resistance 52 ohms per 1,000ft(18 ohms per 100m)
Video input/output Male BNC connector
Dimensions(L*W*H) 39*16*16mm(BNC connector & cable excluded
Net Weight 0.25 LBS
