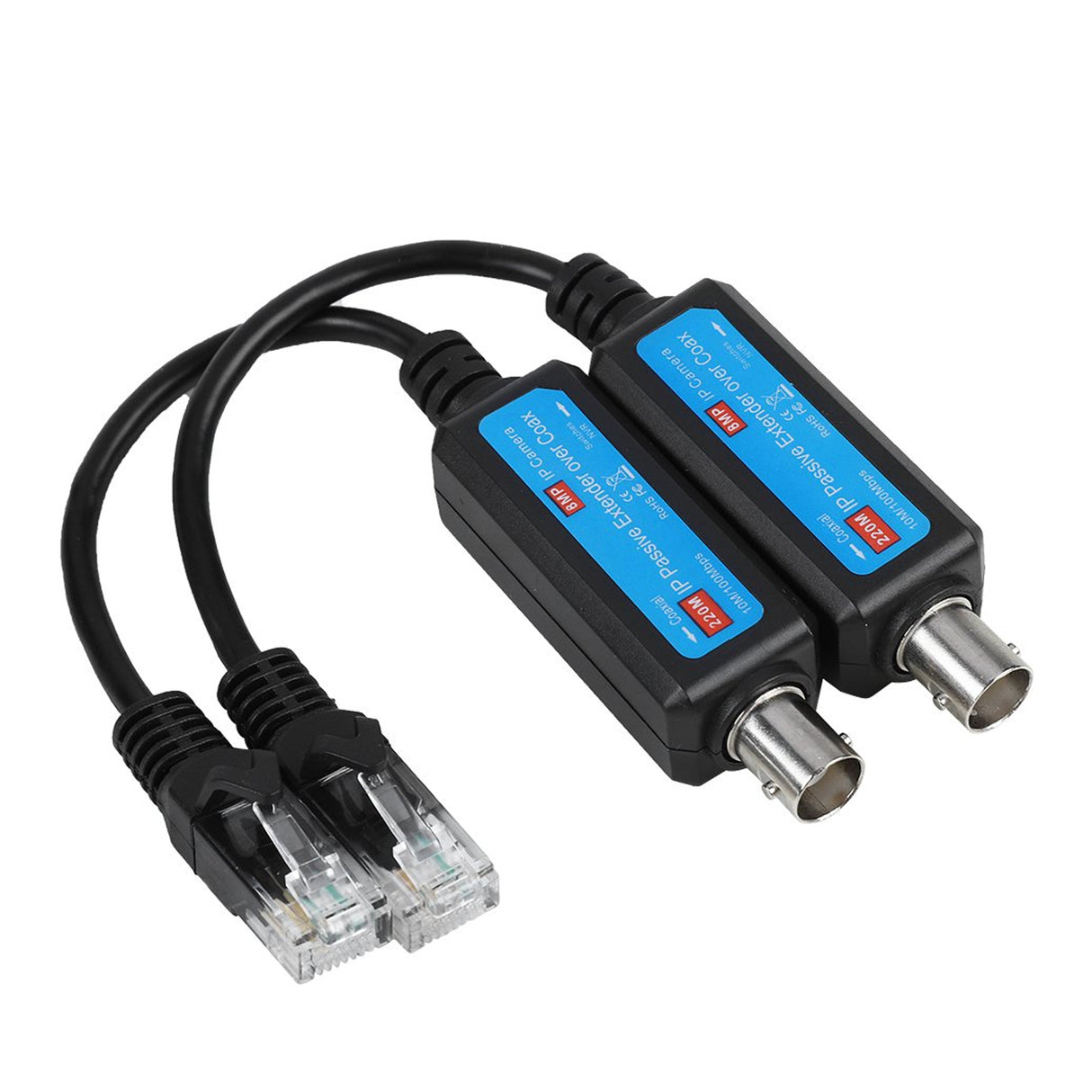

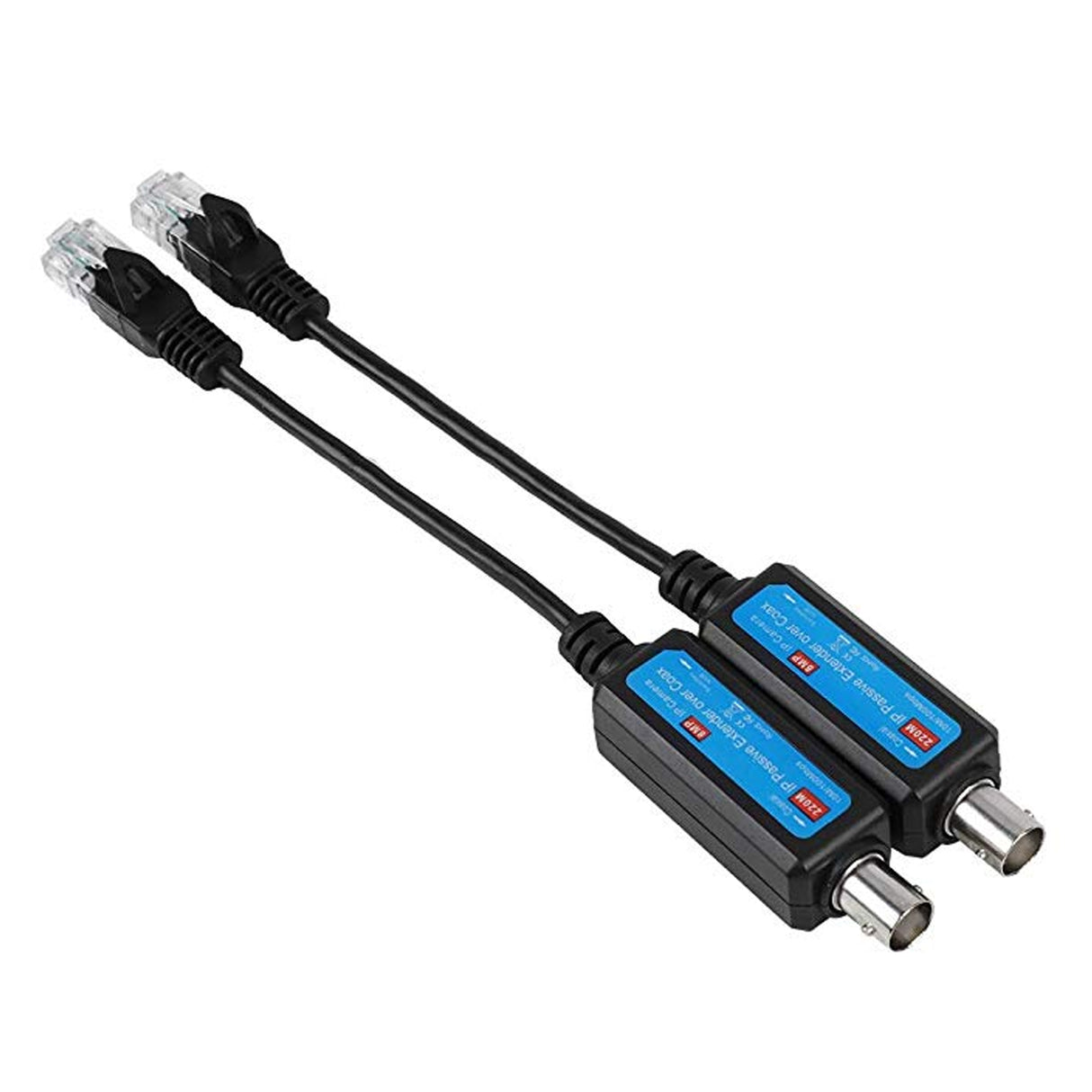

Acegear VBEOC702 Ethernet Over Coax Converter 10/100M Enable Using IPC Over Existing Coax Cable, Transmission 220M.

by Acegear
SKU AGVBEOC702
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Balum Ethernet over coax converter 10/100M

1Pair 10/100Mbps 1CH Passive IP Network Coaxial Transmitter Receiver Extender for IP NVR Camera, IP Network Transmitter, IP Network Receiver

  • Use coaxial lines to transmiss the real time digital signals, transmission distance max up to 220m.
  • Fast and easy to install, save the cables, the installation cost and time.
  • Convenient to use. Passive device, no power required.
  • Built in surge protection, safety in use.
  • The traditional coaxial line analog camera system is upgraded to the network HD camera, both of which can be replaced directly.
Video   PAL, NTSC, SECAM
Standard IEEE802.3 10base-T
Speed 10/100Mbps
Longest Distance 220M
Cable Coax Cable (RG59)
Working Temperature -20 ℃ to +70 ℃
Storage Temperature -40 ℃ to +150 ℃
Humidity (non-condensing) 0-95 Percent
Size 2.0*7.5*1.8cm/0.8*3.0*0.7in (Cable Excluded)
Pacakge Weight 49g/1.7oz
