Arlington LVN2, Low Voltage Nail On Mounting Bracket, (2-Gang) Black (EACH)

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

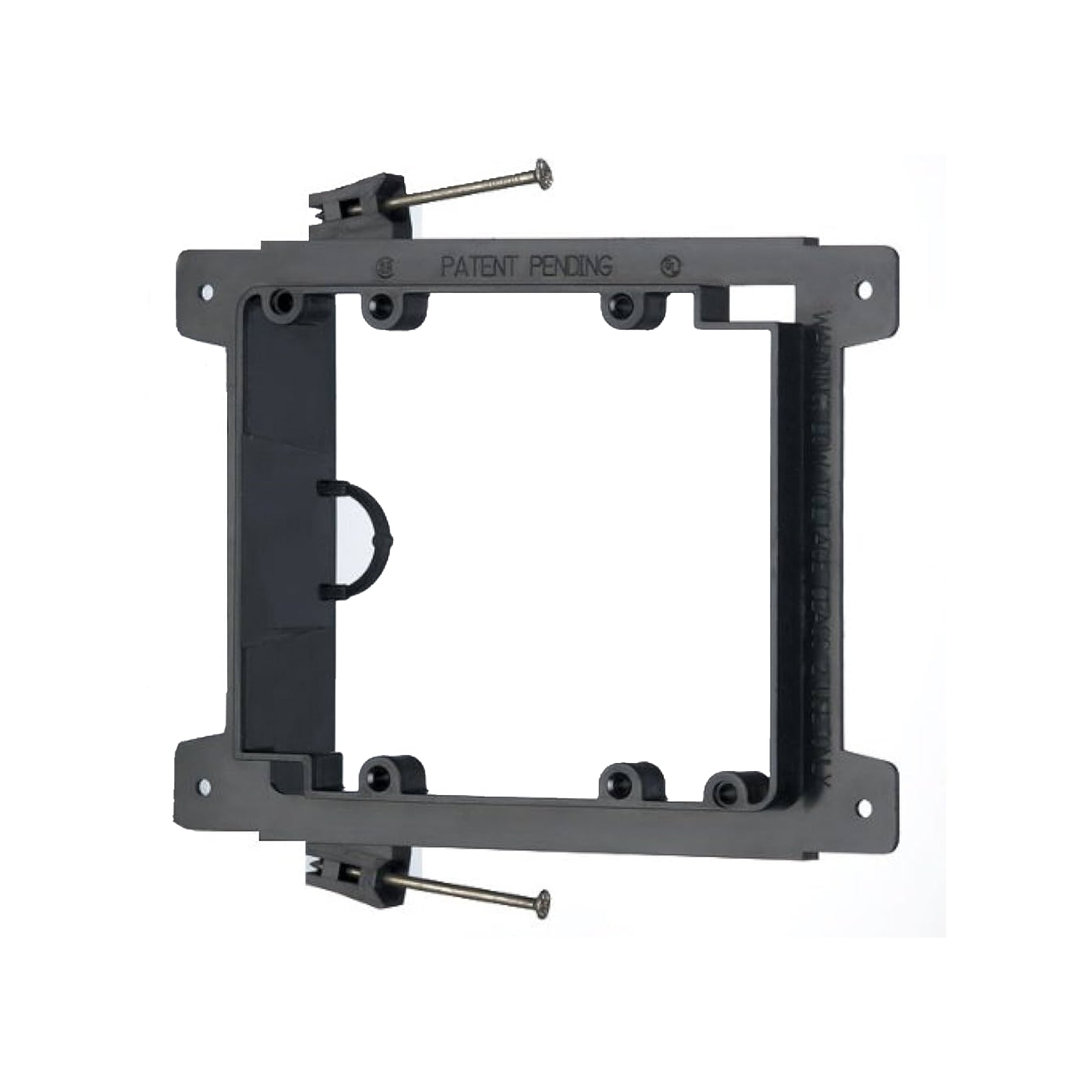

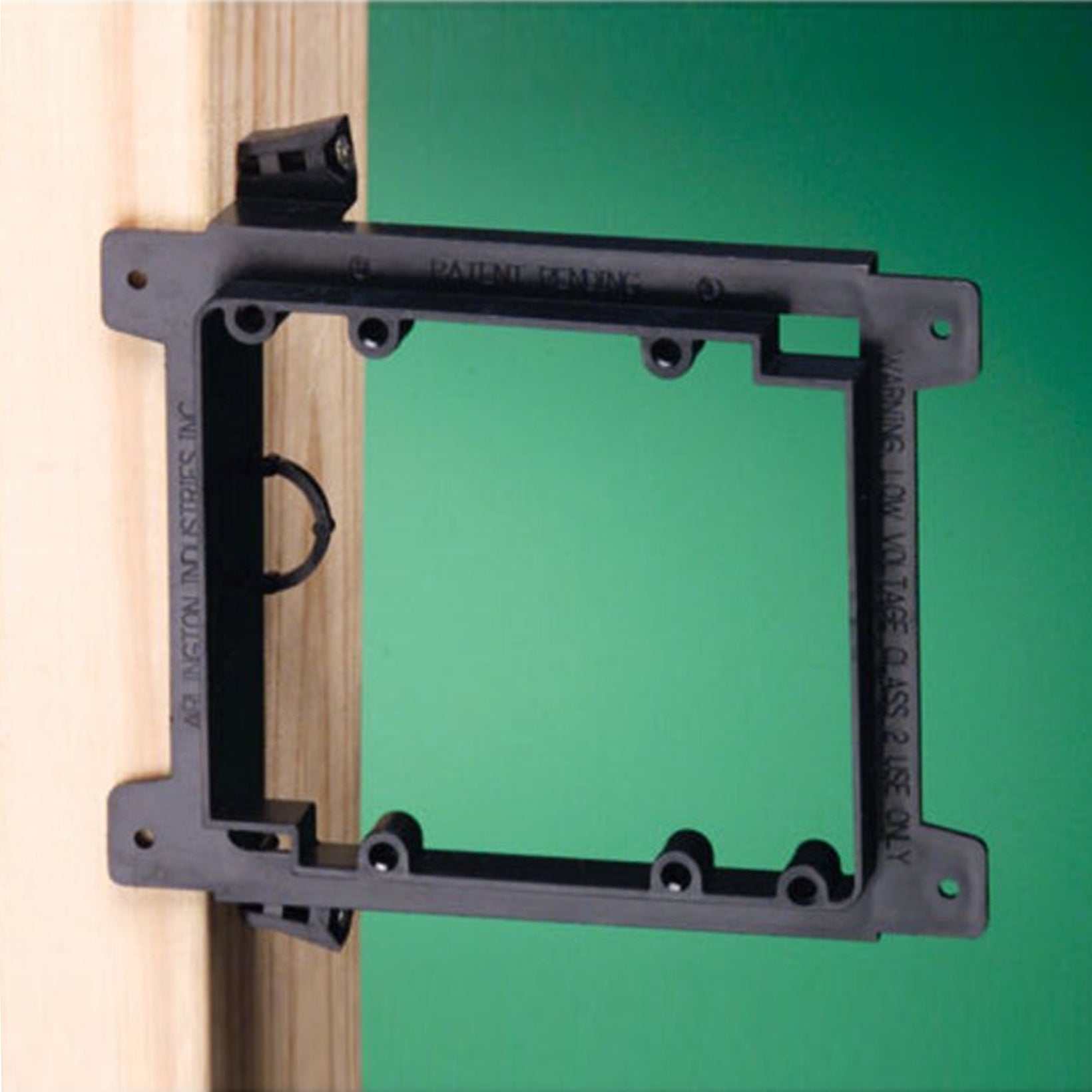

Arlington™ LVN2 Nail-On Low Voltage Mounting Bracket, Double Gang

Arlington Industries LVN2 Low Voltage Mounting Bracket features shallow mounting depth which allows for more wires to be run in the wall cavities. The shallow mounting depth also works better with reversible wall plates since the box itself is not obstructing the wire passage. Arlington Industries has also designed their new construction brackets to have a front nail flange as well as a full outer flange for sheetrock to be backed up to ensuring proper support for the sheetrock and proper depth.

The LVN2 Mounting Bracket comes complete with captive nails. All you need is a hammer, and you are ready to install. Also, it features a built-in loop for tying off a cable. It even doubles as its own cut-out template! All in all, the nail-on bracket installs in 25% less time than steel or plastic mud rings – and costs less, too. What’s more, pushback is eliminated with the use of these brackets.

  • Flange around box supports sheetrock
  • Front Nail Holes for added box support
  • Two Front Flanges for Double Stud Support
  • Integrated Cable Tie-Off Loop to Hold Cables behind Box
  • Shallow Mount - Only 0.80" Deep (Not Including Stud Side Nail Flange)
  • Minimum Sheetrock or Panel Thickness - 0.45"
  • Side Wall Thickness - 0.080"
  • Nailing Flange Thickness - 0.090" (Front and Side)
Unit Packaging 25pcs
Weight 0.102 lbs/each
Height 4.170"
Width 5.492"
Color Black
Material(s) Plastic
