AtlasIED AA100PHD / 4-Input, Mixer Amplifier with Automatic System Test (PHD) (100-Watt )

SKU ATAA100PHD
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

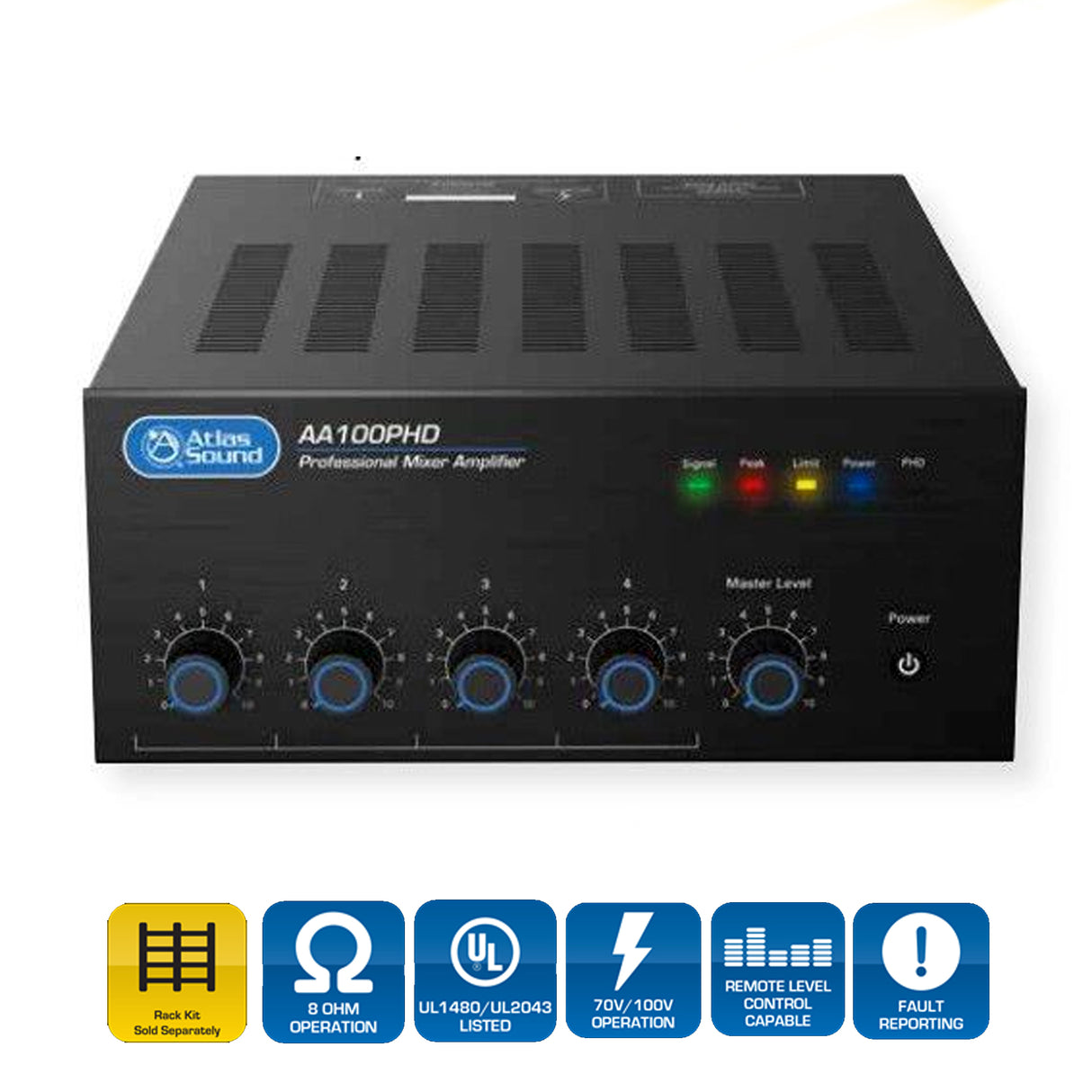

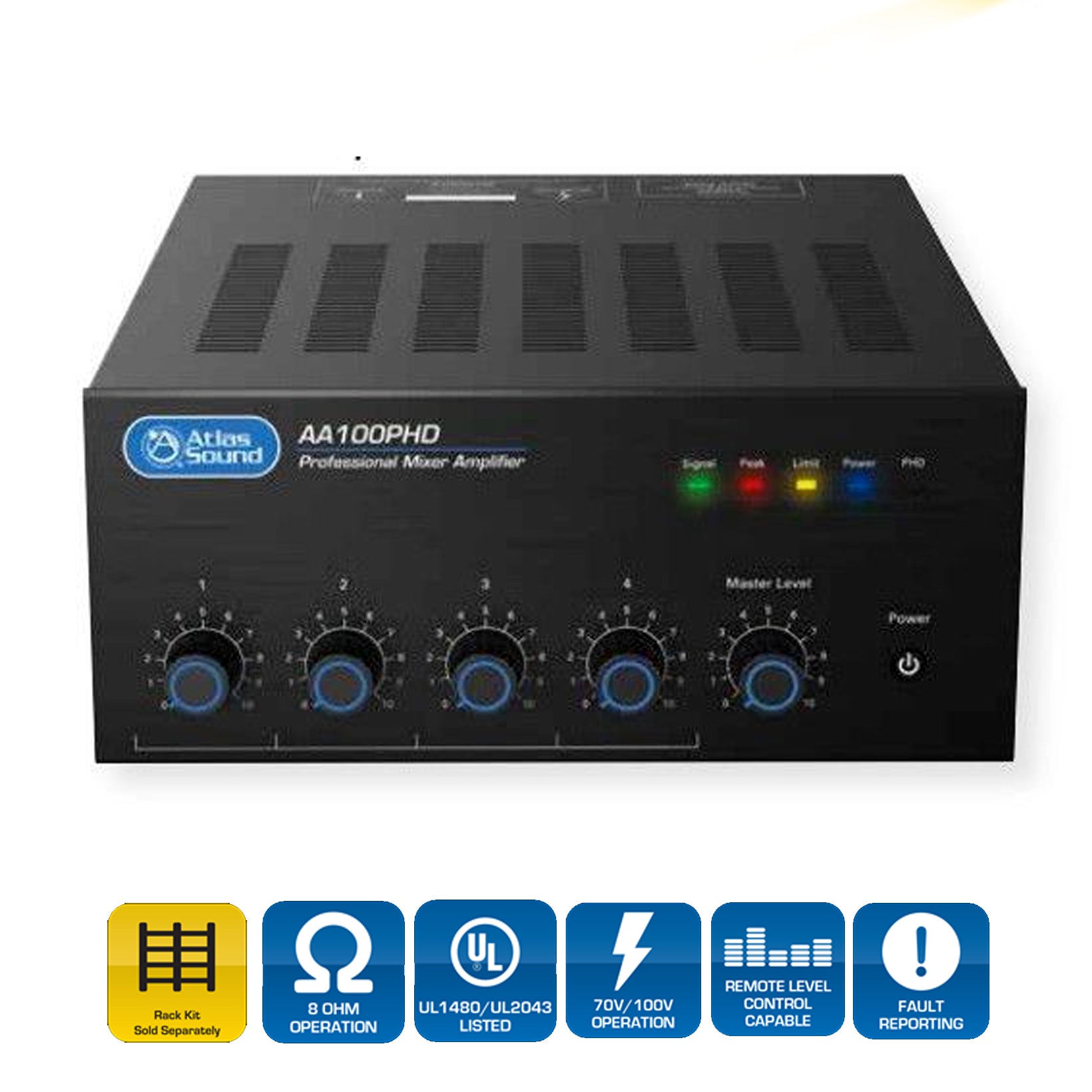

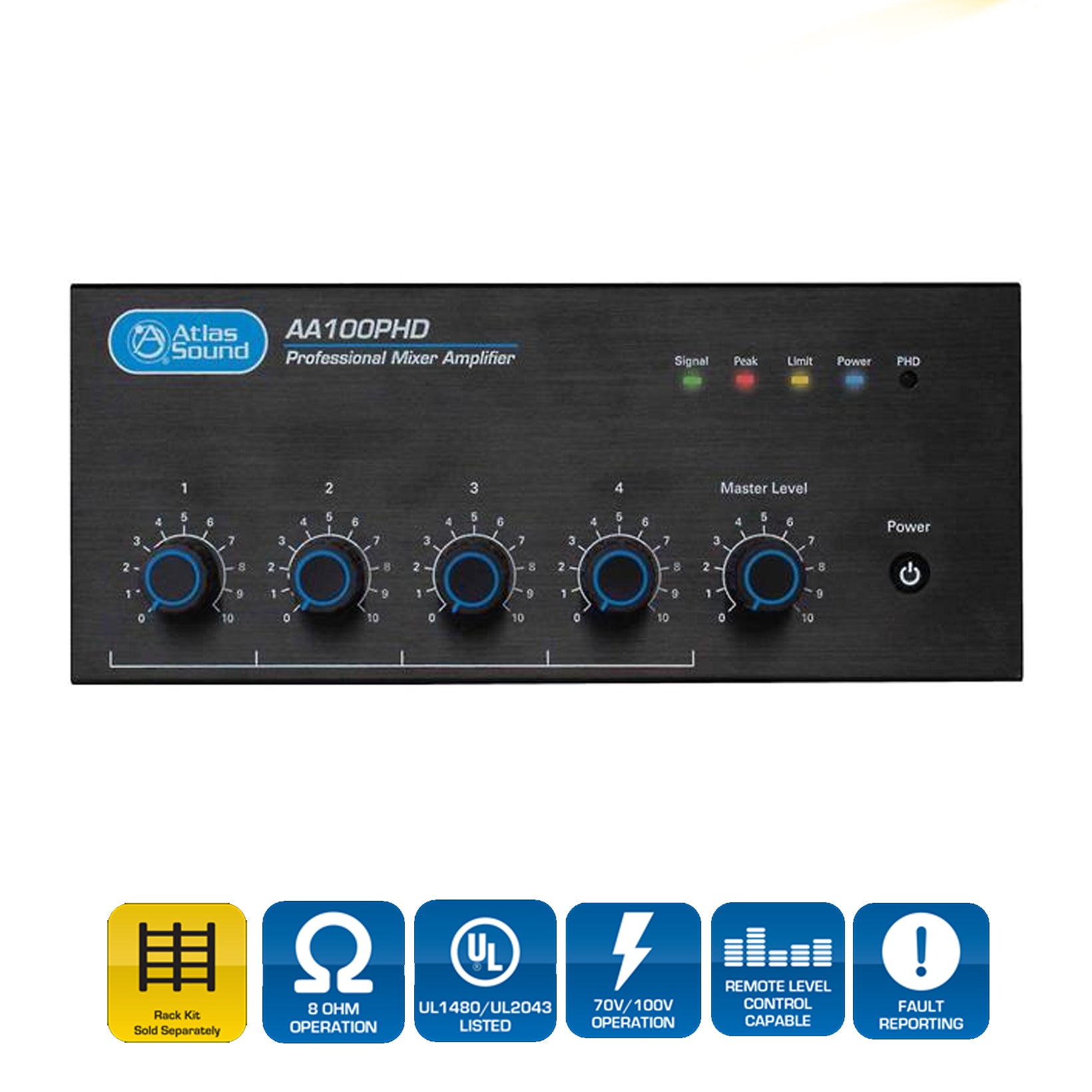

Atlas Sound AA100PHD 4-Input 100W BGM Mixer Amplifier

Powering 100W into 25V, 70.7V, or 4 ohms systems, the AA100PHD from Atlas Sound is a 4-input mixer amplifier designed for distributed-business paging, background music systems (BGM), small-to-medium speech-privacy systems, or any situation in which music-on-hold is a must.

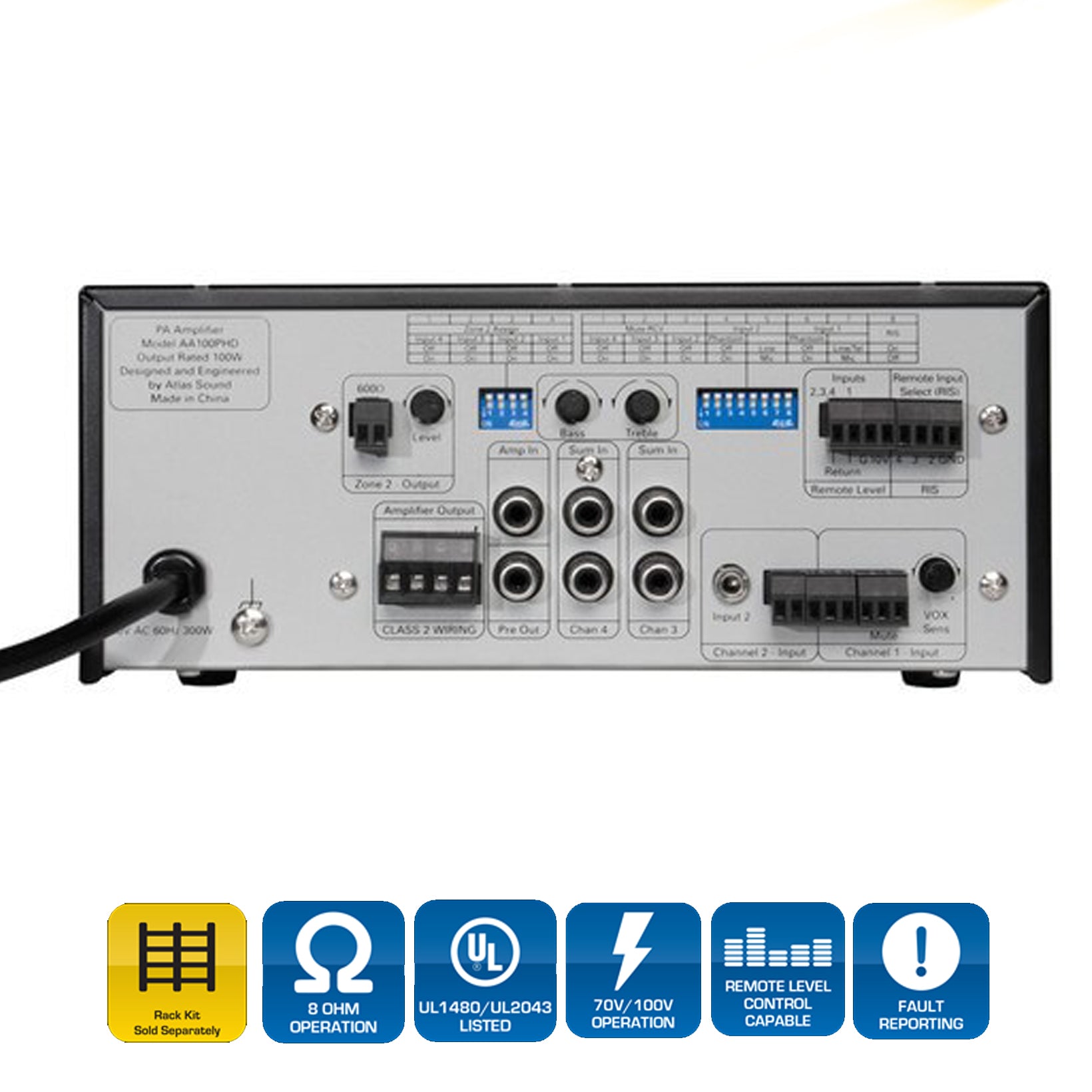

Featuring one microphone/line input, two stereo-summing line inputs, and one input switchable between stereo-summing and microphone/line—as well as a variety of connection possibilities via the rear panel—the AA100PHD allows you to group inputs together for the purpose of muting/attenuating them by any signal affecting channel one. A rear-mounted DIP switch affords you more muting options, and a preamp out/power amp-in is useful for external processing, should you require it. Finally, a remote input selector port comes standard on the back of the mixer, allowing you to control the unit with Atlas Sound accessory items (sold separately).

  • Rear-mounted DIP switch allows mute receive for inputs two and three
  • Contact-closure mute terminals
  • Variable mute sensitivity control for input one
  • Preamp in for external processors
  • 1x line output

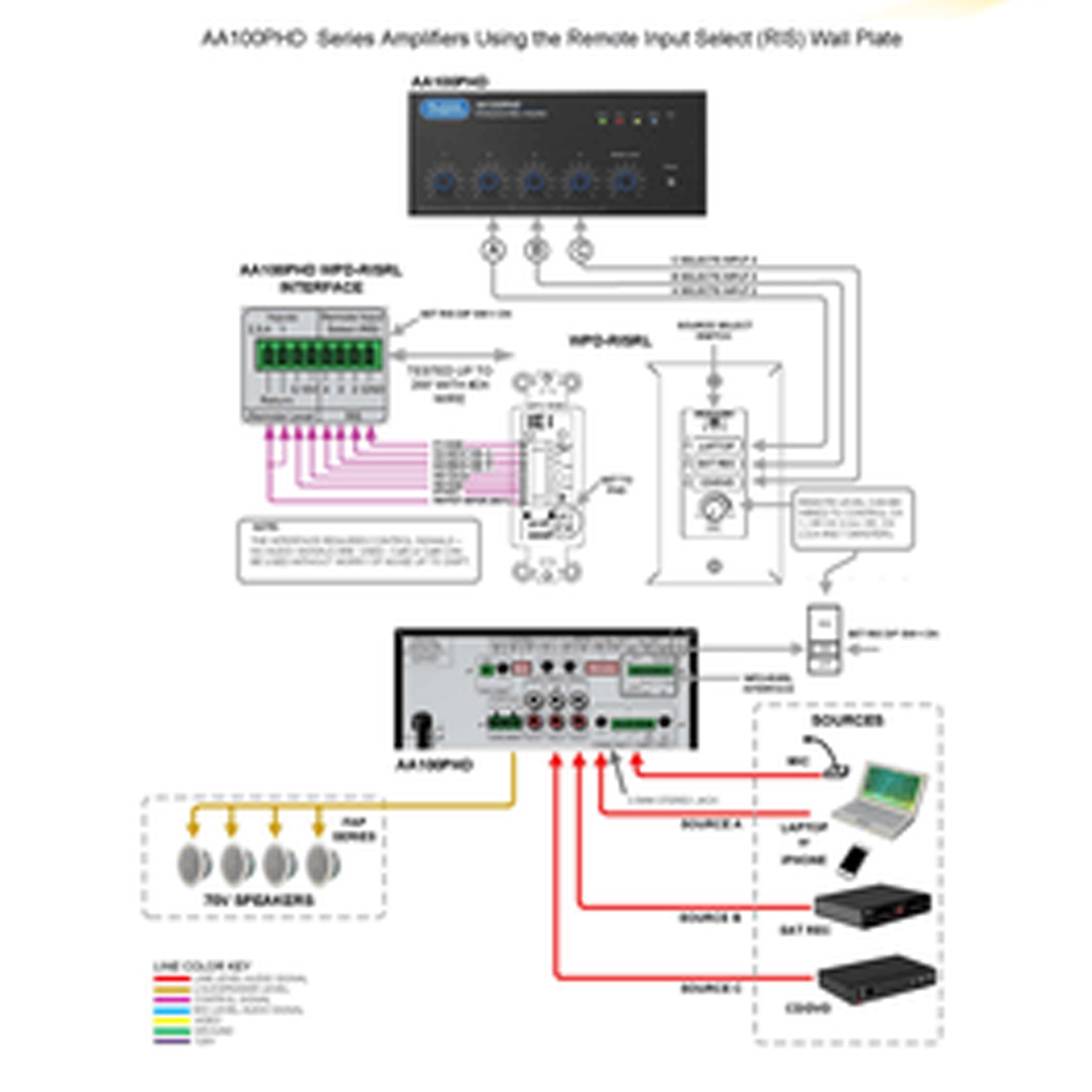

  • Remote input select (RIS)
  • Remote level control
  • Input-assignable zone two output
  • 3x unbalanced, summing line level inputs
  • 2x balanced mic/line input with phantom power
  • Automated diagnostic system test for testing speaker wiring and load impedance on 70V speaker systems
FREQUENCY RESPONSE 50Hz - 15kHz
CONNECTOR TYPE 4 Position Phoenix 3.5mm Pitch
POWER OUTPUT Max. Average Power @ 50Hz-15kHz with .5% THD, 4Ω 100W RMS
HEIGHT 3.66" (93mm)
WIDTH 8.27" (210mm)
DEPTH 10.87" (276mm)
WEIGHT 13lb
SHIPPING WEIGHT 15.2lb
VOLTAGE COMPATIBILITY 110V - 120V
