AtlasIED  |  SKU: ATAP-30

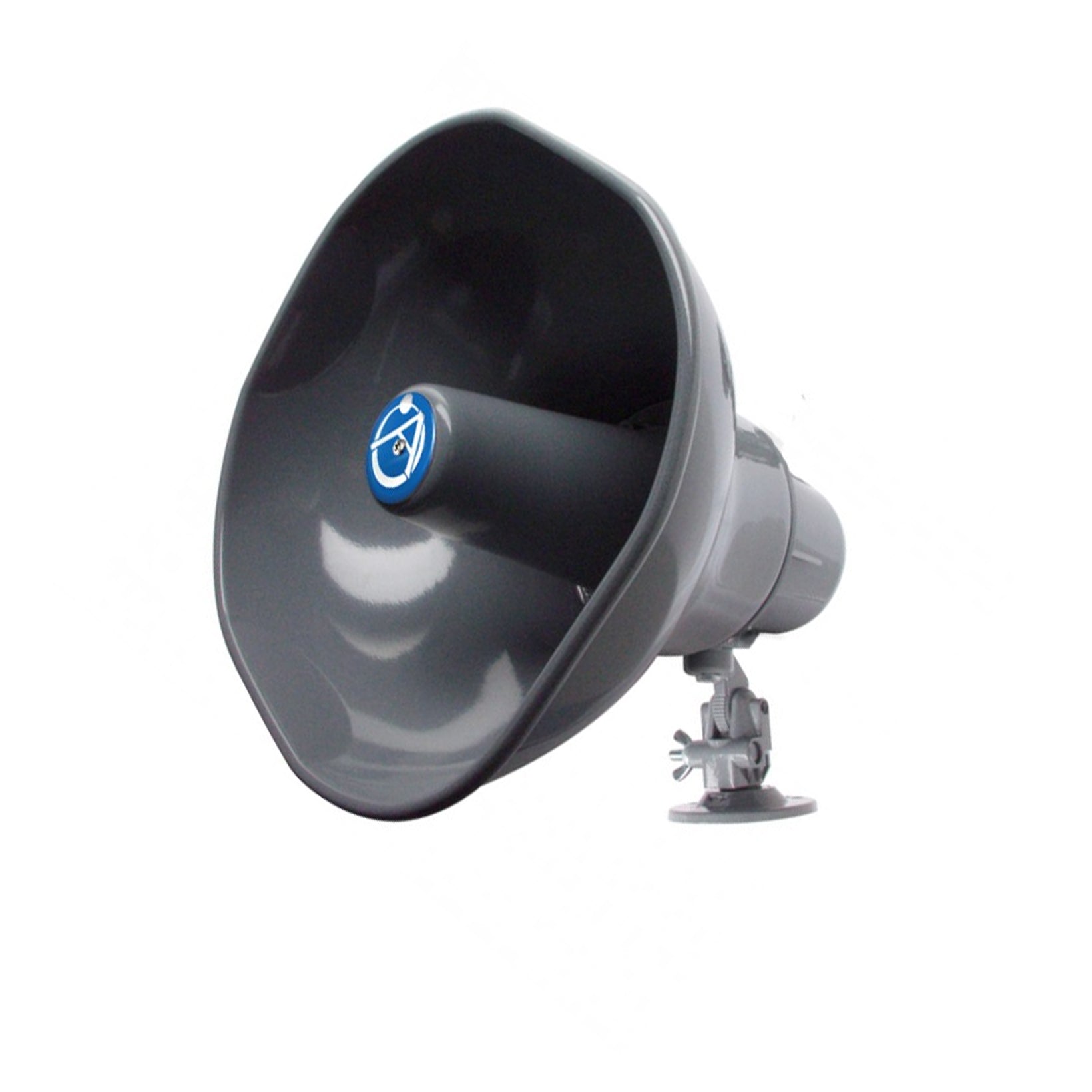

AtlasIED AP-30 / Horn Loudspeaker (30-Watt)

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

AtlasIED AP-30 / Horn Loudspeaker (30-Watt) is backordered and will ship as soon as it is back in stock.

Loading location-specific inventory...

Description

HORN SPEAKER 30W 8Ω

  • Environment Resistant for Outdoor and Indoor Use
  • Grey Finish
  • High-Efficiency Driver with Proven Performance Reliability
  • Omni-Purpose™ Bracket for Precise Positioning
  • Superior Intelligibility for Voice and Tone Signaling
  • World Recognized for Quality and Dependability
Features

The 8-ohm Model AP-30 is a double re-entrant speakers which deliver 30-watts of continuous power handling, superior intelligibility and unparalleled efficiency. The AP-30 Series operates within a nominal frequency response range of 300Hz - 12kHz and offers a sensitivity of 121dB at rated power to provide clear voice and signal communication.

The trademarked squared-bell design signifies AtlasIED quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for speaker installation on conventional surfaces as well as for strap mounting on I-beams or pillars. AP Series speakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.

Specs
FREQUENCY RESPONSE 300Hz - 12kHz
SENSITIVITY 108dB
DISPERSION 60°
POWER RATING 30 Watts
OPERATING TEMPERATURE RANGE -40 to 70C
HEIGHT 11" (27.94 cm)
WIDTH 10" (25.4 cm)
DEPTH 10 1/2" (26.67 cm)
SHIPPING WEIGHT 6.00 lbs (2.72 kgs)

Download Specs
