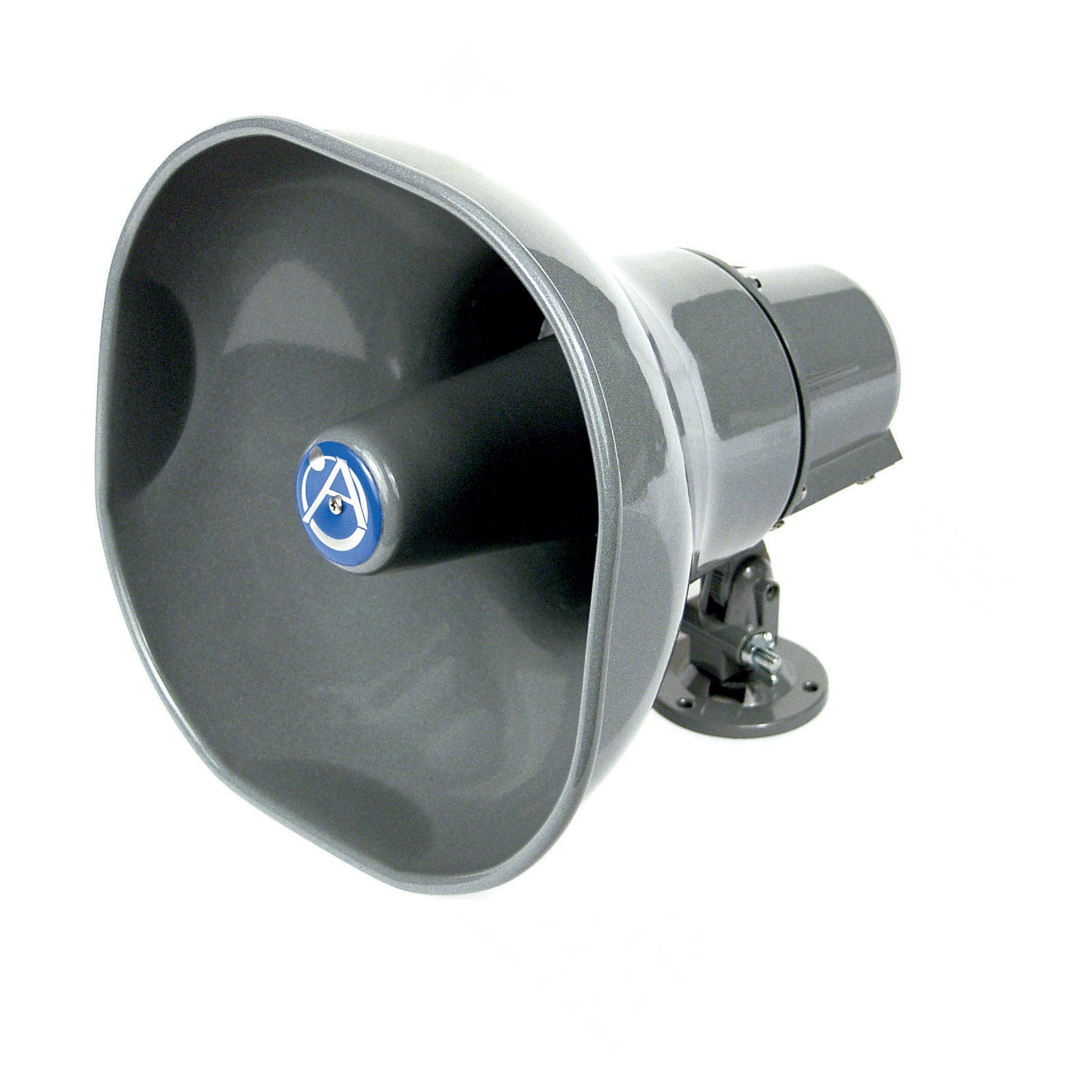

AtlasIED AP-30T / Horn Loudspeaker 25V/70.7V/100V Transformer (30-Watt)
HORN SPEAKER WITH 30-WATT 25V/70V/100V TRANSFORMER
- Environment Resistant for Outdoor & Indoor Use
- Grey Finish
- High-Efficiency Driver with Proven Performance Reliability
- Omni-Purpose™ Bracket for Precise Positioning
- Superior Intelligibility for Voice and Tone Signaling
- World Recognized for Quality and Dependability
The Model AP-30T is a double re-entrant speakers which deliver 30-watts of continuous power handling, superior intelligibility and unparalleled efficiency.
The AP-30T operates within a nominal frequency response range of 300Hz - 12kHz and offers a sensitivity of 121dB at rated power to provide clear voice and signal communication.
The trademarked squared-bell design signifies AtlasIED quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for speaker installation on conventional surfaces as well as for strap mounting on I-beams or pillars.
AP Series speakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.
|FREQUENCY RESPONSE||300Hz -12kHz|
|POWER TAPS||2, 3.8, 7.5, 15, 30 @ 70.7V|
|OPERATING TEMPERATURE RANGE||-40 to 70C|
|HEIGHT||11" (27.94 cm)|
|WIDTH||10" (25.4 cm)|
|DEPTH||10 1/2" (26.67 cm)|
|SHIPPING WEIGHT||6.30 lbs (2.86 kgs)|
