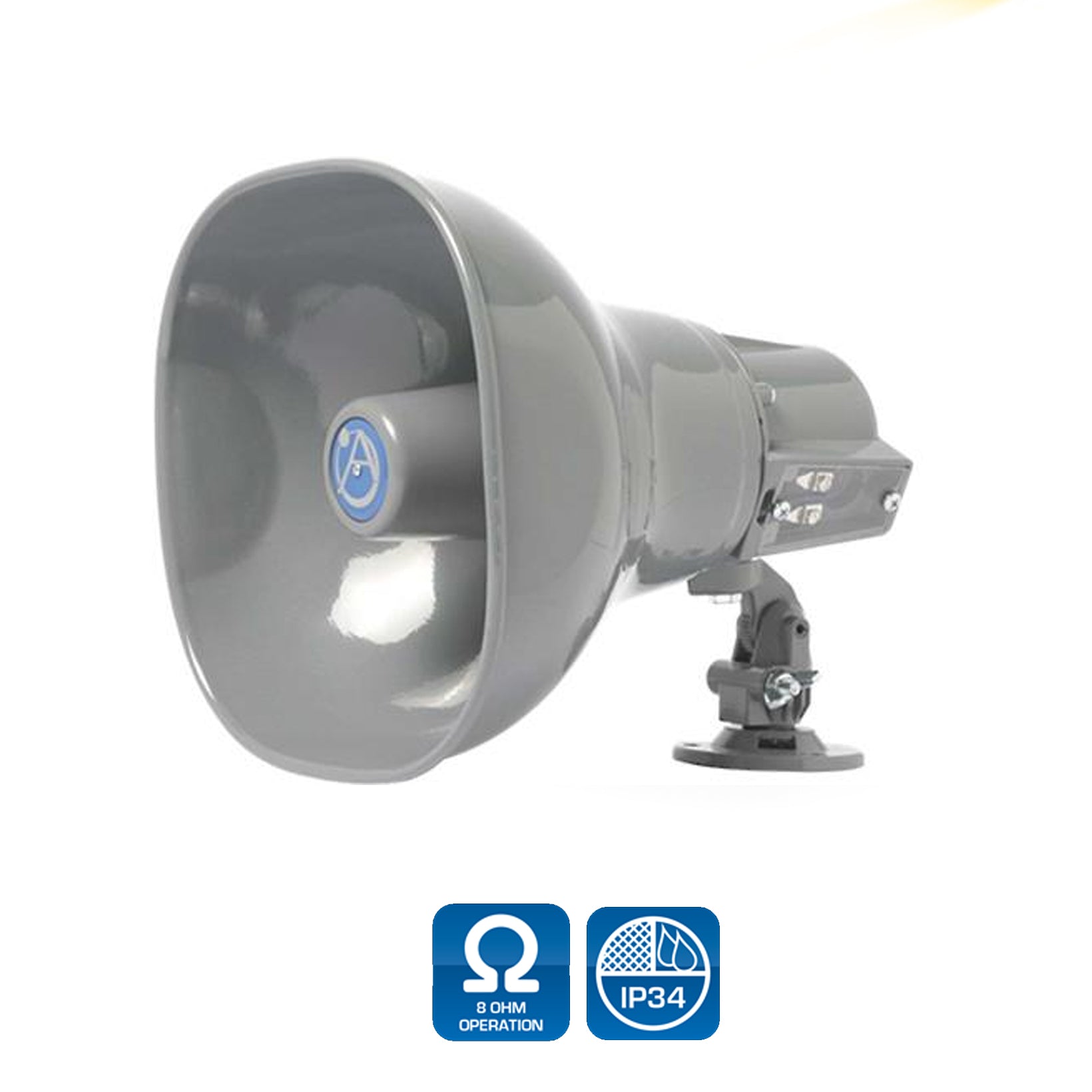

AtlasIED ATAP-15T / Horn Speaker With 25V/70V/100V TRANSFORMER (15-Watt)

SKU ATAP-15T
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

HORN SPEAKER WITH 15-WATT 25V/70V/100V TRANSFORMER

Model AP-15T is a double re-entrant speakers which deliver 15-watts of continuous power handling, superior intelligibility and unparalleled efficiency.

The AP-15 Series operates within a nominal frequency response range of 400-14,000 Hz and offers a sensitivity of 120dB at rated power to provide clear voice and signal communication.

The trademarked squared-bell design signifies AtlasIED quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for speaker installation on conventional surfaces as well as for strapmounting on I-beams or pillars.

AP Series speakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.

  • Grey Finish
  • Environment Resistant for Outdoor and Indoor Use
  • High-Efficiency Driver with Proven Performance Reliability
  • Omni-Purpose™ Bracket for Precise Positioning
  • Superior Intelligibility for Voice and Tone Signaling
  • Transformer Equipped for Versatile 25, 70.7, or 100V Line Applications
  • World Recognized for Quality and Dependability
FREQUENCY RESPONSE 400Hz - 14kHz
SENSITIVITY 106dB
POWER TAPS 1, 2, 3.8, 7.5, 15 @ 70.7V
DISPERSION 70°
OPERATING TEMPERATURE RANGE -40 to 70C
HEIGHT 8 3/4" (22.23 cm)
WIDTH 7 7/8" (20.00 cm)
DEPTH 9 5/16" (23.66 cm)
SHIPPING WEIGHT 5.00 lbs (2.27 kgs)
