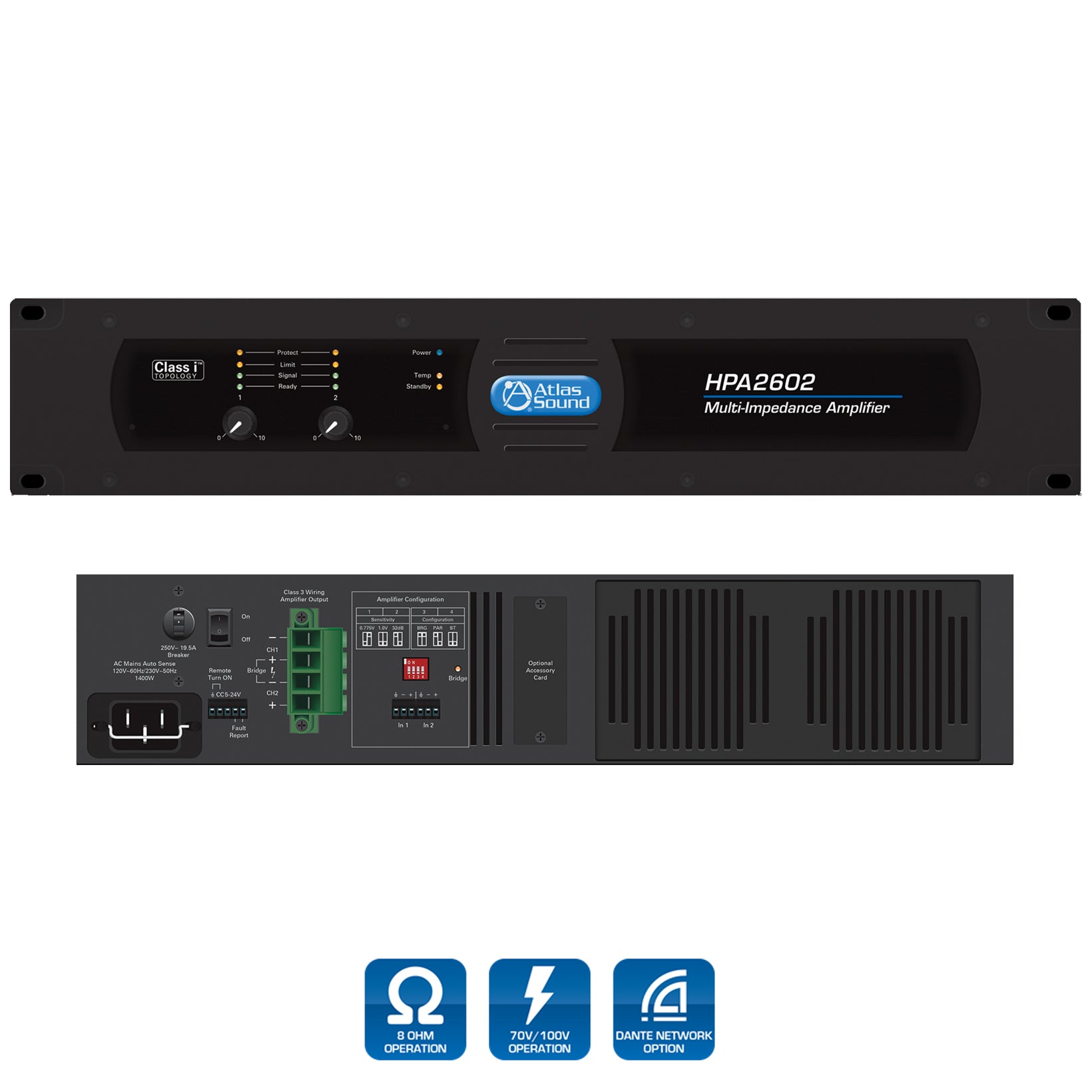

AtlasIED HPA2602 DUAL-CHANNEL, 3200-WATT COMMERCIAL AMPLIFIER
DUAL-CHANNEL, 3200-WATT COMMERCIAL AMPLIFIER
The AtlasIED High Power Amplifier “HPA” Series has been designed to be versatile for uses in both commercial 70V distributed systems and professional applications that require amplifiers to handle 4 and 2 ohm loads. The HPA is compact and lightweight in comparison to other models delivering the similar power levels.
The HPA Series features generation II Class I Output topology that gives the efficiency close to a Class D amplifier with the sound quality of a Class AB amplifier. The power supply is switch mode global auto sensing gen 3 design that maintains a stable output during fluxuating power conditions. The power supply and output stage collectively are designed to deliver exceptional dynamic high output voltage and
current to virtually any speaker load.
The HPA Series features front panel detented level controls with a security cover, remote turn on, balanced inputs, fault reporting and an accessory card slot for an optional Dante™ 2-channel digital audio interface. Cooling is not an issue because of the unique output stage low resistance direct couple thermal transfer design. HPA also is energy efficient and meets Energy Star standards with only drawing 1W of power in standby mode.
Whether your application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED HPA Series is the answer for high power/cost effective amplification need
|70.7V||2 x 1300W|
|8Ω||2 x 800W|
|4Ω||2 x 1300W|
|2Ω||2 x 1800W|
|8Ω BRIDGED||1 x 2500W|
|1Ω RMS POWER OUTPUT||1 x 3200W|
|FREQUENCY RESPONSE||20Hz - 20kHz|
|SIGNAL TO NOISE RATIO||>85dB|
|CONNECTOR TYPE||Terminal Block & Phoenix|
|NUMBER OF FANS||1 - Variable Speed|
|WEIGHT||33 lbs. (15kg)|
|BTU ALL CHANNELS DRIVEN AES||4265 BTU (70.7V, 120VAC)|
|MAX CURRENT ALL CHANNELS DRIVEN CONTINUOUS||18.4A|
|RACK UNITS||2 RU|
