Acegear CT4271.10XIR 2MP HD-TVI PTZ 10X Optical EXIR 250ft Coax Control 12VDC.

by Acegear
SKU AGCT4271.10XIR
ID: 12963607019592




This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Acegear AGCT4271.10XIR

  • 2 MP High Resolution
  • 5.1 ~ 51mm lens
  • 10x optical zoom
  • OSD menu
  • EXIR, smart IR, up to 250ft. IR distance
  • Compatible with H.265+, H.265, H.264+, H.264 DVR
  • IP66
  • Up to Coax OSD and PTZ Control
  • 12 VDC, 950mA

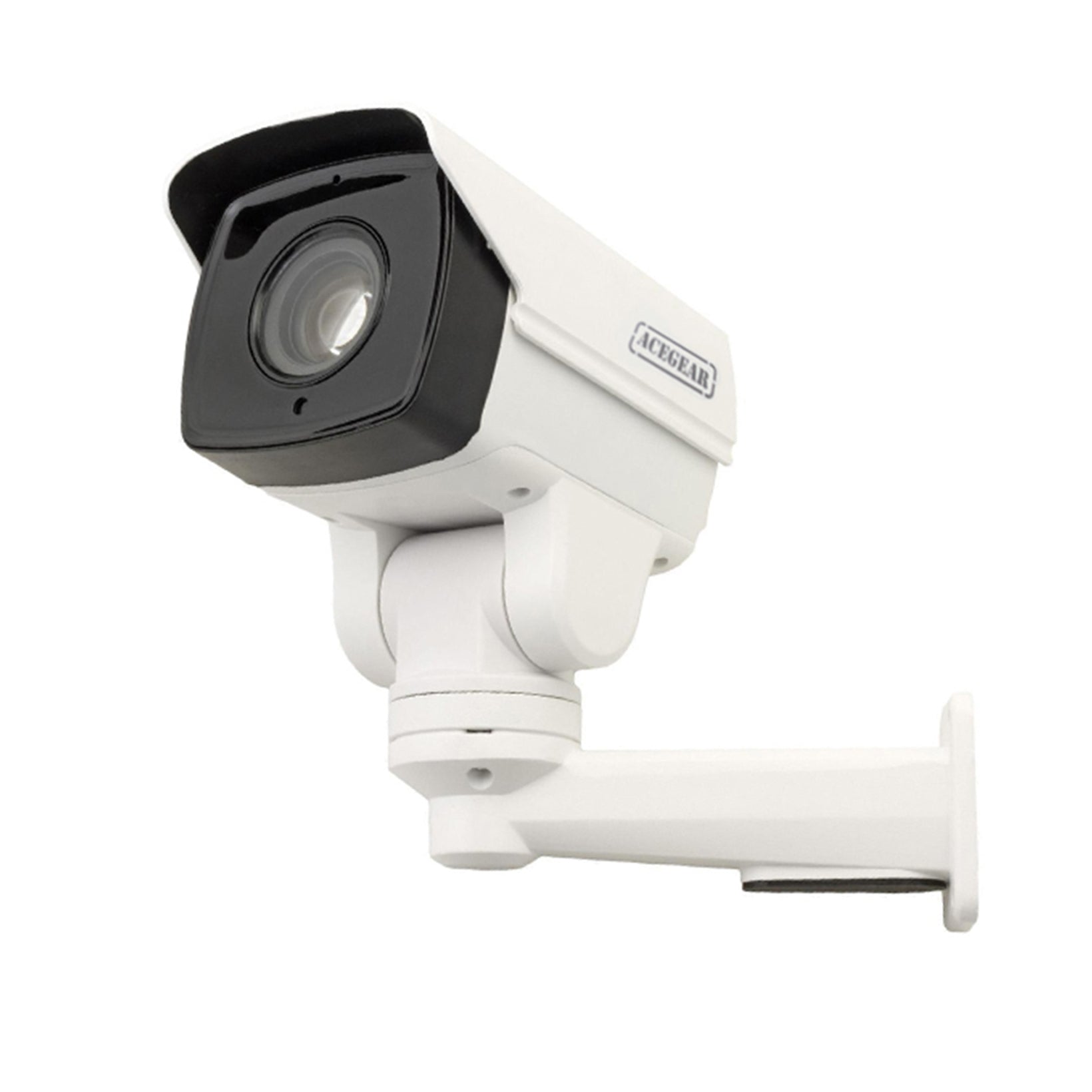

The Acegear AGCT4271.10XIR 2MP HD-TVI PTZ Camera with Night Vision is equipped with a 1080P progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. This PTZ Camera has a 10X Optical Zoom and a maximum night vision range of 250ft. HD-TVI technology allows the camera to be controlled and transmit HD video over coaxial cables.

Image Sensor 2 MP Sony IMX322 CMOS
Frame Rate 2MP@30fps
Effective Pixels 1920 x 1080
Min. Illumination Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Lens 5.1 ~ 51mm, 10x optical zoom
Focus mode Auto focus
Shutter speed

1/25 s to 1/30,000 s

Day/Night IR cut filter with auto switch
Wide Dynamic Range Digital WDR
Noise Reduction 2D/3D-DNR
Synchronization Internal synchronization
HD Video Output 1 HD-TVI Analog output
Exposure Auto / iris priority / shutter priority / manual
Day/Night mode Auto with Smart IR / color / black & white
Functions Brightness, Contrast, Sharpness, Saturation, mirror, flip, AWB, AGC
Optical zoom 10x
Pan rotation range 0° ~ 250°
Tilt rotation range -5° ~ 55°
Pan speed 0.5° ~ 12° / s
Tilt speed 0.5° ~ 10° / s
Preset 256 positions
Operating Conditions -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 90% or less (non-condensing)
Power Supply DC12V
Power Consumption Max. 15W
IR Range Up to 250 ft. (80 m.)
Warranty 12 mo. with proof of purchase *exclusion apply (see warranty terms for details).
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Camera: Φ 5.67" x 3.7" x 5.24" (Φ144 × 94 x 133 mm)
Weight 2.4 lb. (1100 g.)
