DoorBird  |  SKU: DBA1121-V2A-FM

DoorBird A1121-FM, Flush Mount, IP Access Control Device.

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
Color: Stainless Steel
Materials

DoorBird A1121-FM, Flush Mount, IP Access Control Device. - Stainless Steel / Standard is backordered and will ship as soon as it is back in stock.

Loading location-specific inventory...

Description

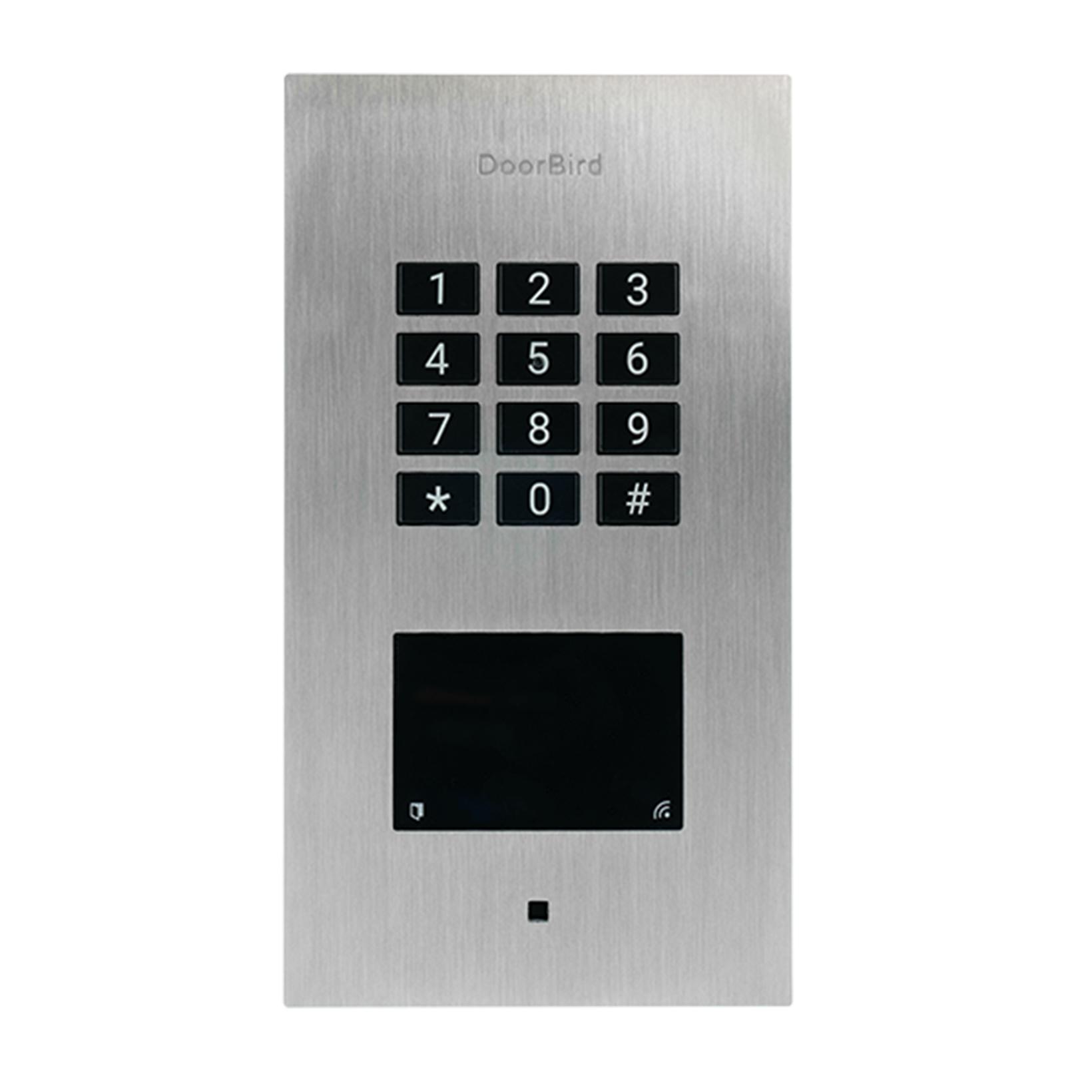

V2A, Stainless steel Standard. brushed

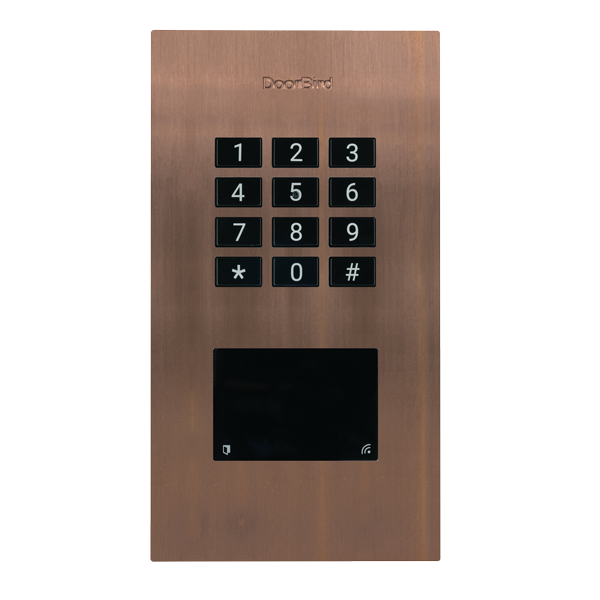

V2A, Bronze-finish as PVD coating, stainless steel, brushed

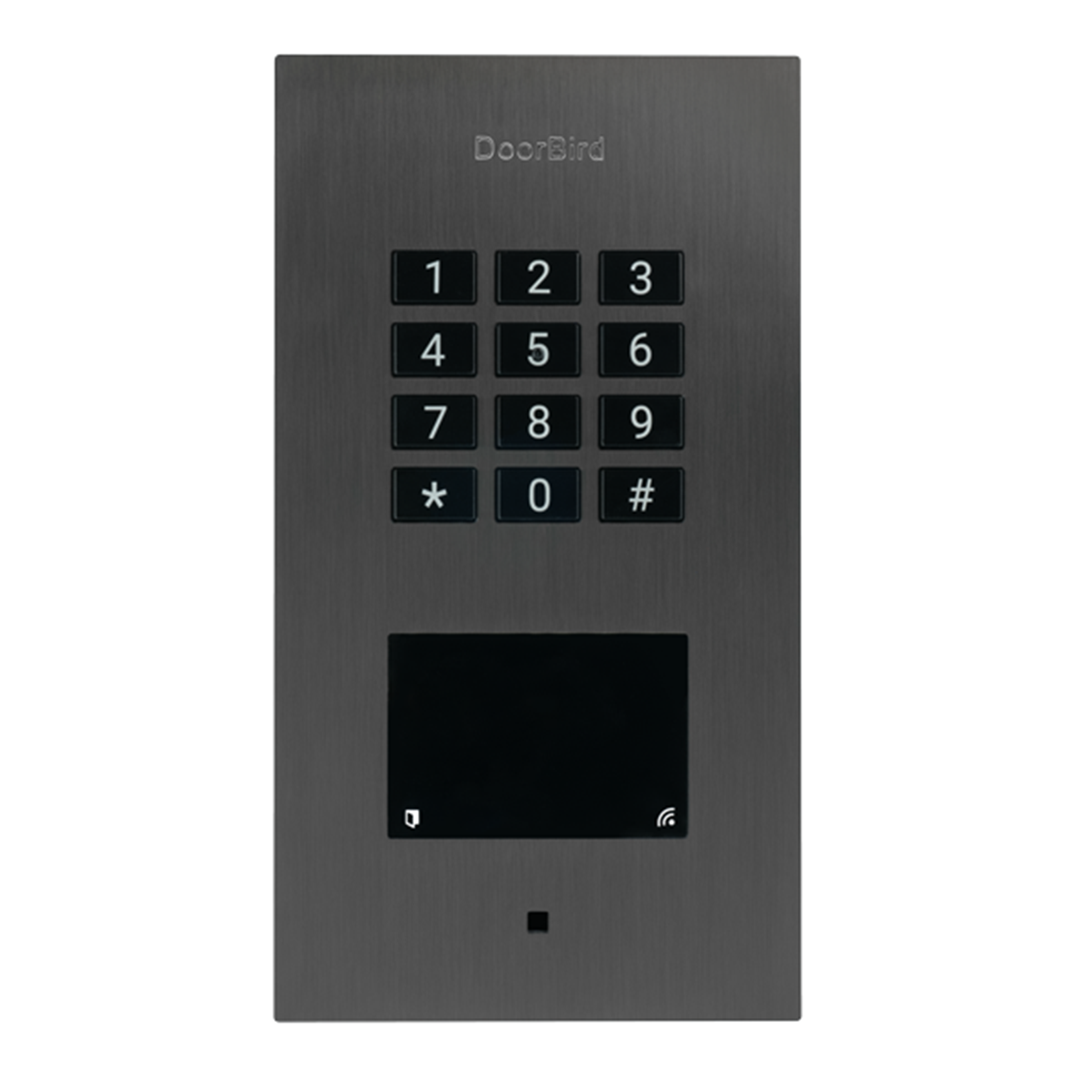

V2A, Titanium-finish as PVD coating, stainless steel, brushed
V4A, Stainless steel (salt-water resistant), brushed
  • Flush-mount housing included
  • WiFi / LAN connection (PoE capable)
  • Keypad
  • 125 KHz and 13.56 MHz RFID reader
  • Tamper sensor
  • Wiegand interface
  • 2 freely configurable bistable switching relays
Features

Multi-technology access control system and stand-alone solution for back and side doors, garages, storage and packing rooms, bicycle and machine rooms

  • Three separate access control devices combined:
    Keypad 125 KHz
    13.56 MHz RFID Reader
    Keypad
  • WiFi-capable
  • Two freely configurable bistable switching relays
  • Wiegand interface
  • Manipulation sensor
  • RFID sensor
  • Bluetooth Low Energy (BLE)
    For access control, compatible external sensors and smart locks
Specifications

Front panel

3 mm (0.12 in) Available in brushed stainless steel V2A / V4A and V2A with bronze and titanium finish, DB 703, RAL 7016

Mounting housing(backbox)

Polycarbonate

Mounting type

Surface-mounted.

Flush-mounted and retrofit version sold separately

Keypad Module

12 keys, illuminated, configurable via App, e.g.

• Individual PIN codes

• Individual events (e.g. switch a relay, HTTP(s) request)

• Individual schedules

• Up to 500 PIN codes manageable

Power supply

15 - 48 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)

Weight

250G
Connectors

• LAN/PoE (T+, T-, R+, R-)

• 2 x Bistable latching relay (potential-free), max. 1-24 V DC/AC, 1 A, e.g. for electric door opener

• 15 – 48 V DC input (+, -), max. 15 W

• Wiegand

Weather-proof

Yes, IP65

Approvals

IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368

Dimensions

128 x 62 x 28 mm (H x W x D)

5.04 x 2.44 x 1.1 in (H x W x D)

Scope of delivery

1x Main Electrical Unit with front panel 1x Wall mounting bracket

1x Power supply unit (mains adaptor) with 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC)

1x Quickstart guide with Digital Passport 1x Installation manual

1x Small parts

System requirements

Mobile device: Newest iOS oniPhone/iPad, newest Android onSmartphone/TabletInternet: High-Speed Landline BroadbandInternet connection, DSL, cable or fiber optic,no socks or proxy serverNetwork: Ethernet Network, with DHCP

Supported protocols

HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP,TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF(RTP [RFC-2833], SIP INFO [RFC-2976]), STM

Configuration

Via App, e.g.

• Tag (add, delete)

• Individual events (e.g. switch a relay, HTTP(s) notification)

• Individual schedules

Maximum distance to controller (cable length)

18 AWG: Max. 500 ft. (150m)

20 AWG: Max. 300 ft. (90m)

22 AWG: Max. 200 ft. (60m)

Download

• Datasheet

• App User Manual
