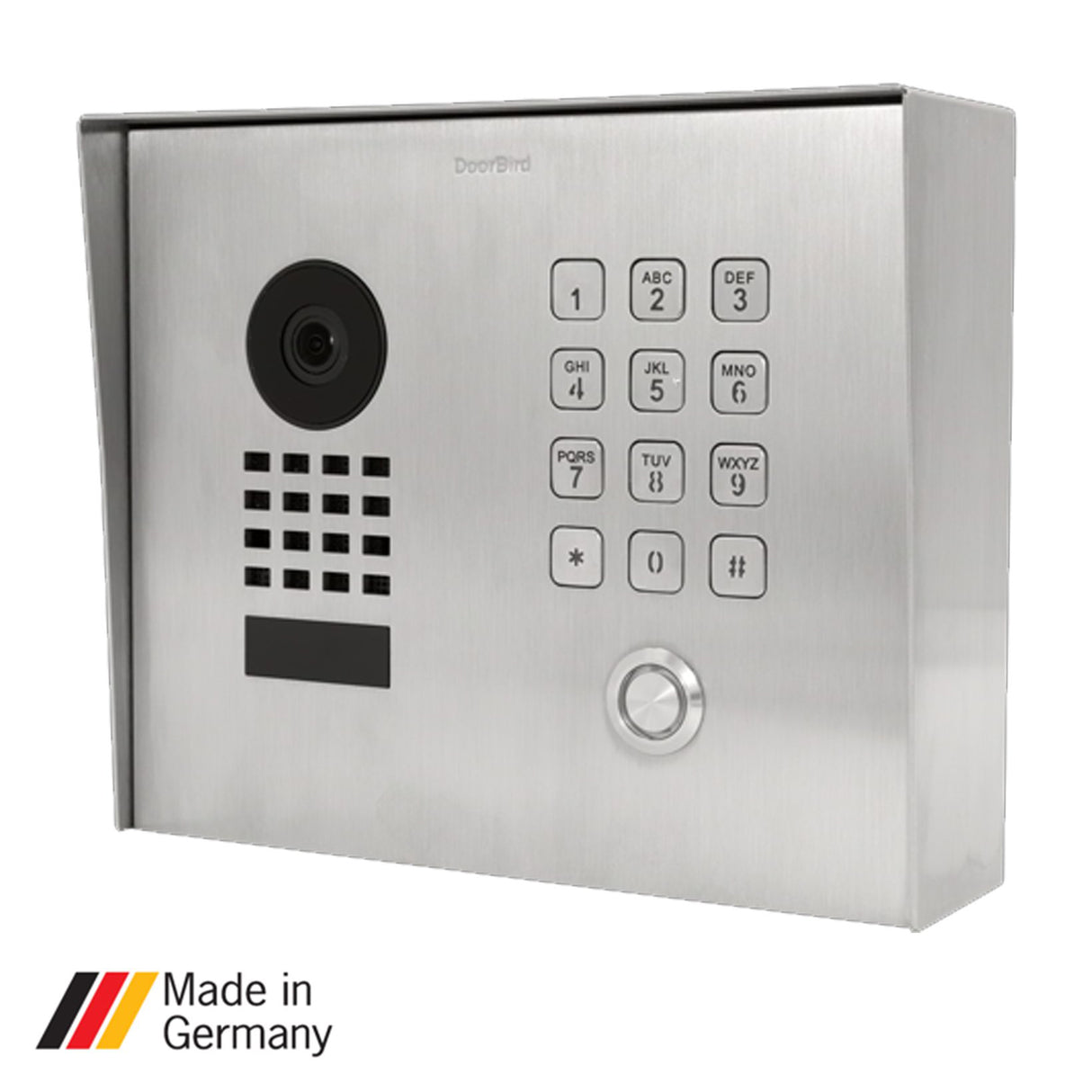

DoorBird D1101KH, Classic Surface Mount, IP Video Door Station, 1 Unit, 1 Call Button,

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
V2A, Stainless steel V2A, Standard. brushed
V4A, Stainless steel, (salt-water resistant), brushed
  • Surface-mount housing included
  • LAN connection (PoE compatible)
  • 2-way audio
  • Ultra-wide angle lens, 1080p, night vision, IR LEDs
  • 4D motion sensor
  • Keypad
  • 1 freely configurable bistable switching relay
  • Automatic door buzzer: For use in medical offices and office environments
  • Free visitor history: Store still images for free, optional video recording available
  • Individual action schedules: Trigger relay 1 for automatic door release Mo-Fr from 9 am until 4 pm when the call button is pressed 4D motion sensor switches on external lamp between 9 pm and 6 am REC
  • Geofencing: Automatic door and gate opening when returning home
  • Night vision: With 12 Infrared LEDs
  • Easy self-install: Quick installation via QR code scan
  • Easy self-install: Quick installation via QR code scan
  • One freely configurable: bistable latching relay
    • Control one door or gate via App
    • Status configurable via App: temporary or permanent circuit
  • Light sensor: For night vision mode
  • HDTV Video: Ultra wide-angle, hemispheric lens, 200°
  • Motion sensor with 4D technology: Distance up to 6 m (19,7f) adjustable via App (interval: 1 m / 3.3f)
  • Easy connection to the network: Connection via network cable (PoE, network data) or bell wire via 2-wire transformer
  • Microphone: Clear voice transmission


DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are.

The IP Video Door Station can be used as a standalone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled
via the DoorBird App.


Imagine, you are not at home and your children have locked themselves out or the courier wants to deliver a parcel. With DoorBird this is no longer a problem. Every time someone rings the doorbell you will get a push notification on your smartphone or tablet.

Via the DoorBird App you are not only able to talk to the visitor but also see them live in HD quality. You will never miss a visitor again. With DoorBird you are on the move and yet at home, even if a burglar rings at the door to check
if someone is at home.


All DoorBird products are designed, developed and produced by Bird Home Automation GmbH in Berlin, Germany.

We manufacture all products with the greatest care and precision, and deliver them to our customers all over the world.

Front panel 3 mm (0.12 in) Available in brushed stainless steel (V2A - Standart) / (V4A Salt-Water Resistant)
Mounting housing (backbox) Stainless steel
Mounting type Flush-mounted,
surface-mounted version sold separately
Call button Stainless-steel button with
illuminated LED Ring
Keypad Module 12 keys, illuminated, configurable via App, e.g.
• Individual PIN codes
• Individual events (e.g. switch a relay,
HTTP(s) request)
• Individual schedules
• Up to 1000 PIN codes manageable
Power supply 15 V DC (max. 15 W) or Power over
Ethernet (PoE 802.3af Mode-A)
Weight 1595 g
Connectors • LAN/PoE (T+, T-, R+, R-)
• Bistable latching relay, max. 1-24 V DC/AC,
1 A, e.g. for electric door opener
• External input for external door opener button
• 15 V DC input (+, -), max. 15 W
Weatherproof Yes, IP65
Approvals IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368,
IEC/EN 62471
Dimensions 179,00 x 214,00 x 48,00 mm (H x W x D)
8.43 x 7.05 x 1.89 in (H x W x D)
Operating conditions -25 to +55°C / -13 to 131°F
Humidity 10 to 85 % RH
Scope of delivery 1x Main Electrical Unit
1x Front panel
1x Flush-mounting housing (backbox)
1x Power supply unit (mains adaptor) with
4 country-specific outlet adaptors
(110 - 240 V AC to 15 V DC)
1x Screwdriver
1x Quickstart guide with Digital Passport
1x Installation manual
1x Small parts
System requirements Mobile device: Newest iOS on
iPhone/iPad, newest Android on
Internet: High-Speed Landline Broadband
Internet connection, DSL, cable or fiber optic,
no socks or proxy server
Network: Ethernet Network, with DHCP
Camera HDTV 1080p, dynamic (VGA – HDTV)
Lens High-end ultra wide-angle hemispheric lens
200° (D), 150° (H), 90° (V), straightened,
Night vision Yes, light sensor, automatic IR-cut filter,
12 Infrared LEDs (850 nm)
Audio components Speaker and microphone, noise reduction and
echo cancellation (ANR, AEC)
Audio streaming Two-way, full duplex
Technology 4D. Based on multiple integrated sensors and
algorithms, e.g. Radio Frequency Energy (RFE)
Range 1 - 6 m (3.3 - 19.7 ft), depends on environment,
configurable in 1 m (3.3 ft) steps.
Detection angle 80° (H), 50° (V)
