DoorBird D1101KH, Modern Surface Mount, IP Video Door Station, 1 Unit, 1 Call Button,
For single-family homes and businesses with 1 unit, 1 call button
Stainless steel V2A, brushed- Surface-mount housing included
- LAN connection (PoE capable)
- 2-way audio
- Ultra-wide angle lens, 1080p, night vision, IR LEDs
- 4D motion sensor
- Keypad
- 1 freely configurable bistable switching relay
- Automatic door buzzer: For use in medical offices and office environments
- Free visitor history: Store still images for free, optional video recording available
- Individual action schedules: Trigger relay 1 for automatic door release Mo-Fr from 9 am until 4 pm when the call button is pressed 4D motion sensor switches on external lamp between 9 pm and 6 am REC
- Geofencing: Automatic door and gate opening when returning home
- Night vision: With 12 Infrared LEDs
- Easy self-install: Quick installation via QR code scan
- Easy self-install: Quick installation via QR code scan
-
One freely configurable: bistable latching relay
• Control one door or gate via App
• Status configurable via App: temporary or permanent circuit - Light sensor: For night vision mode
- HDTV Video: Ultra wide-angle, hemispheric lens, 200°

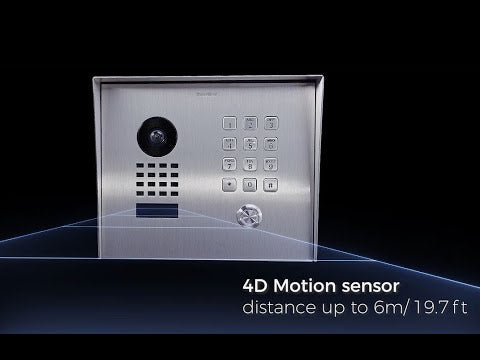

- Motion sensor with 4D technology: Distance up to 6 m (19,7f) adjustable via App (interval: 1 m / 3.3f)
- Easy connection to the network: Connection via network cable (PoE, network data) or bell wire via 2-wire transformer
- Microphone: Clear voice transmission
SMART HOME STARTS AT THE FRONT DOOR
DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are.
The IP Video Door Station can be used as a standalone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled
via the DoorBird App.
HOW DOES IT WORK?
Imagine, you are not at home and your children have locked themselves out or the courier wants to deliver a parcel. With DoorBird this is no longer a problem. Every time someone rings the doorbell you will get a push notification on your smartphone or tablet.
Via the DoorBird App you are not only able to talk to the visitor but also see them live in HD quality. You will never miss a visitor again. With DoorBird you are on the move and yet at home, even if a burglar rings at the door to check
if someone is at home.
QUALITY MADE IN GERMANY
All DoorBird products are designed, developed and produced by Bird Home Automation GmbH in Berlin, Germany.
We manufacture all products with the greatest care and precision, and deliver them to our customers all over the world.
| Front panel | 3 mm (0.12 in) Available in brushed stainless steel (V2A - Standart) / (V4A Salt-Water Resistant) |
| Mounting housing | (backbox) Stainless steel |
| Mounting type | Flush-mounted, surface-mounted version sold separately |
| Call button | Stainless-steel button with illuminated LED Ring |
| Keypad Module | 12 keys, illuminated, configurable via App, e.g. • Individual PIN codes • Individual events (e.g. switch a relay, HTTP(s) request) • Individual schedules • Up to 1000 PIN codes manageable |
| Power supply | 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Weight | 1595 g |
| Connectors | • LAN/PoE (T+, T-, R+, R-) • Bistable latching relay, max. 1-24 V DC/AC, 1 A, e.g. for electric door opener • External input for external door opener button • 15 V DC input (+, -), max. 15 W |
| Weatherproof | Yes, IP65 |
| Approvals | IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368, IEC/EN 62471 |
| Dimensions | 179,00 x 214,00 x 48,00 mm (H x W x D) 8.43 x 7.05 x 1.89 in (H x W x D) |
| Operating conditions | -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing) |
| Scope of delivery | 1x Main Electrical Unit 1x Front panel 1x Flush-mounting housing (backbox) 1x Power supply unit (mains adaptor) with 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC) 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
| System requirements | Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server Network: Ethernet Network, with DHCP |
| Camera | HDTV 1080p, dynamic (VGA – HDTV) |
| Lens | High-end ultra wide-angle hemispheric lens 200° (D), 150° (H), 90° (V), straightened, IR-capable |
| Night vision | Yes, light sensor, automatic IR-cut filter, 12 Infrared LEDs (850 nm) |
| Audio components | Speaker and microphone, noise reduction and echo cancellation (ANR, AEC) |
| Audio streaming | Two-way, full duplex |
| Technology | 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE) |
| Range | 1 - 6 m (3.3 - 19.7 ft), depends on environment, configurable in 1 m (3.3 ft) steps. |
| Detection angle | 80° (H), 50° (V) |
