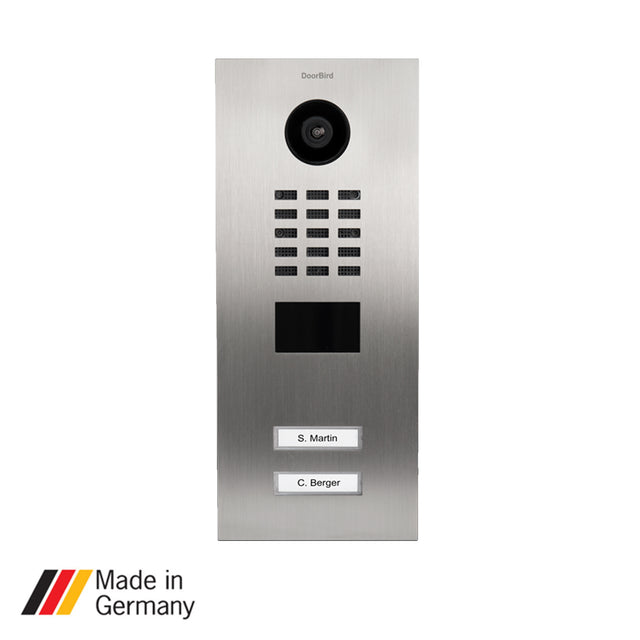

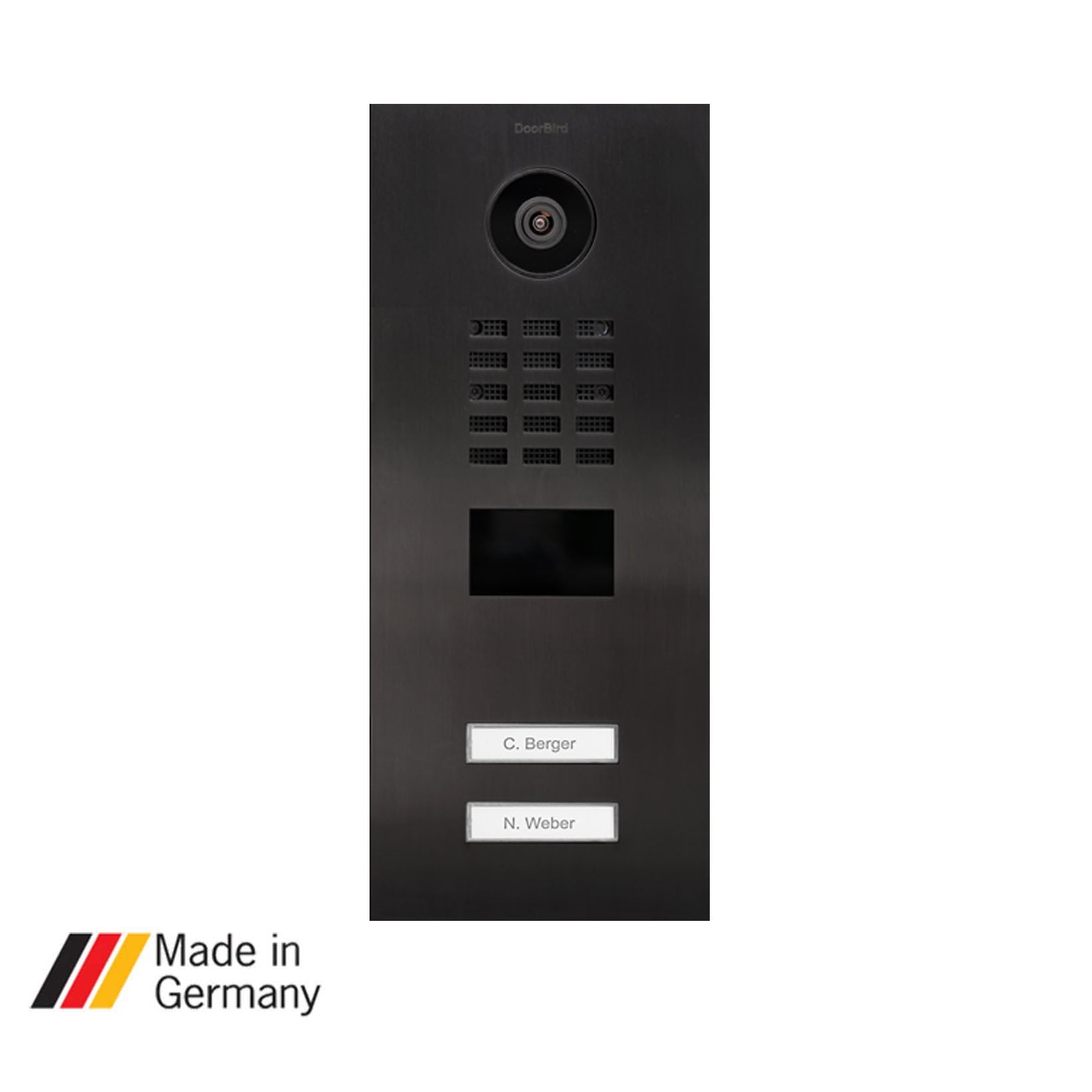

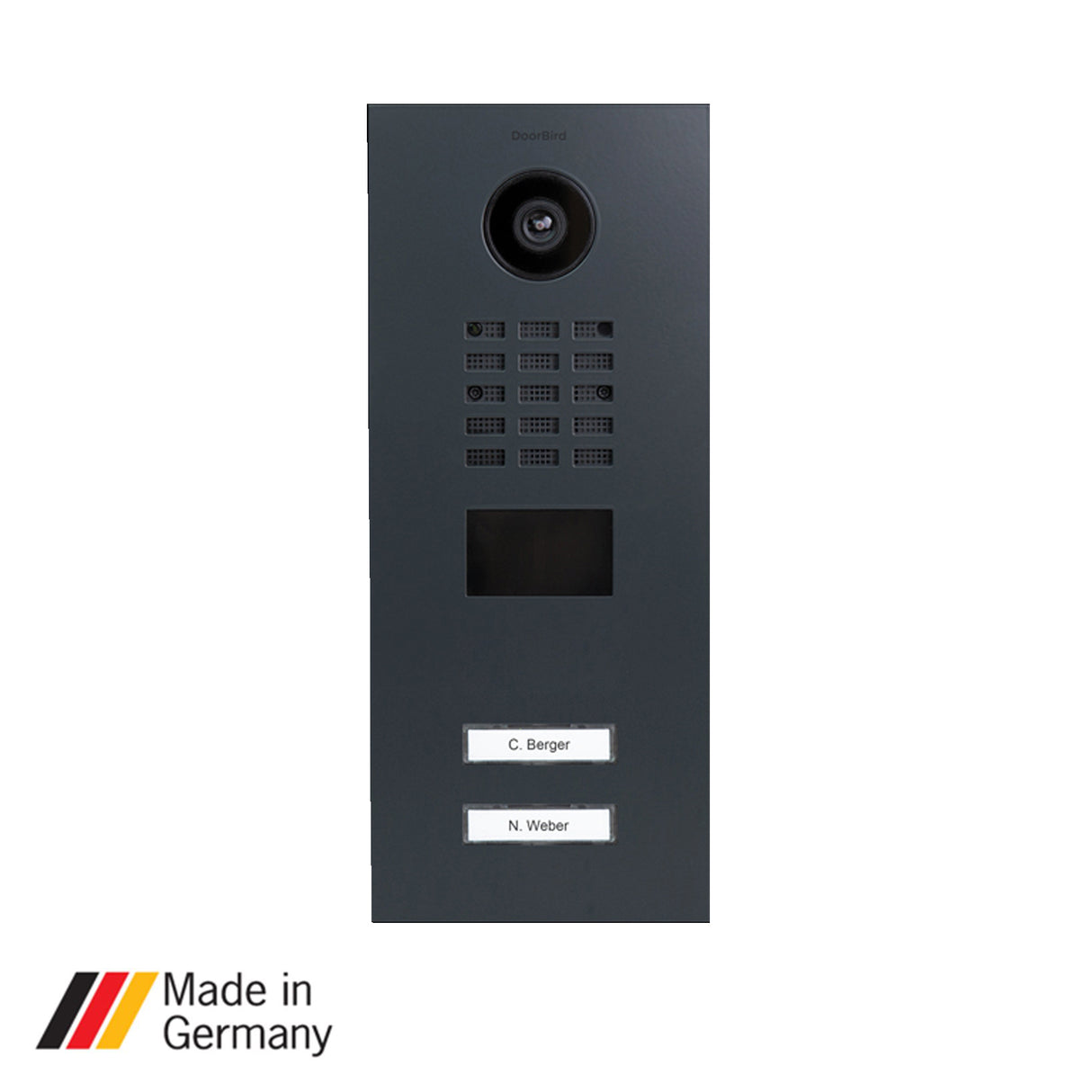

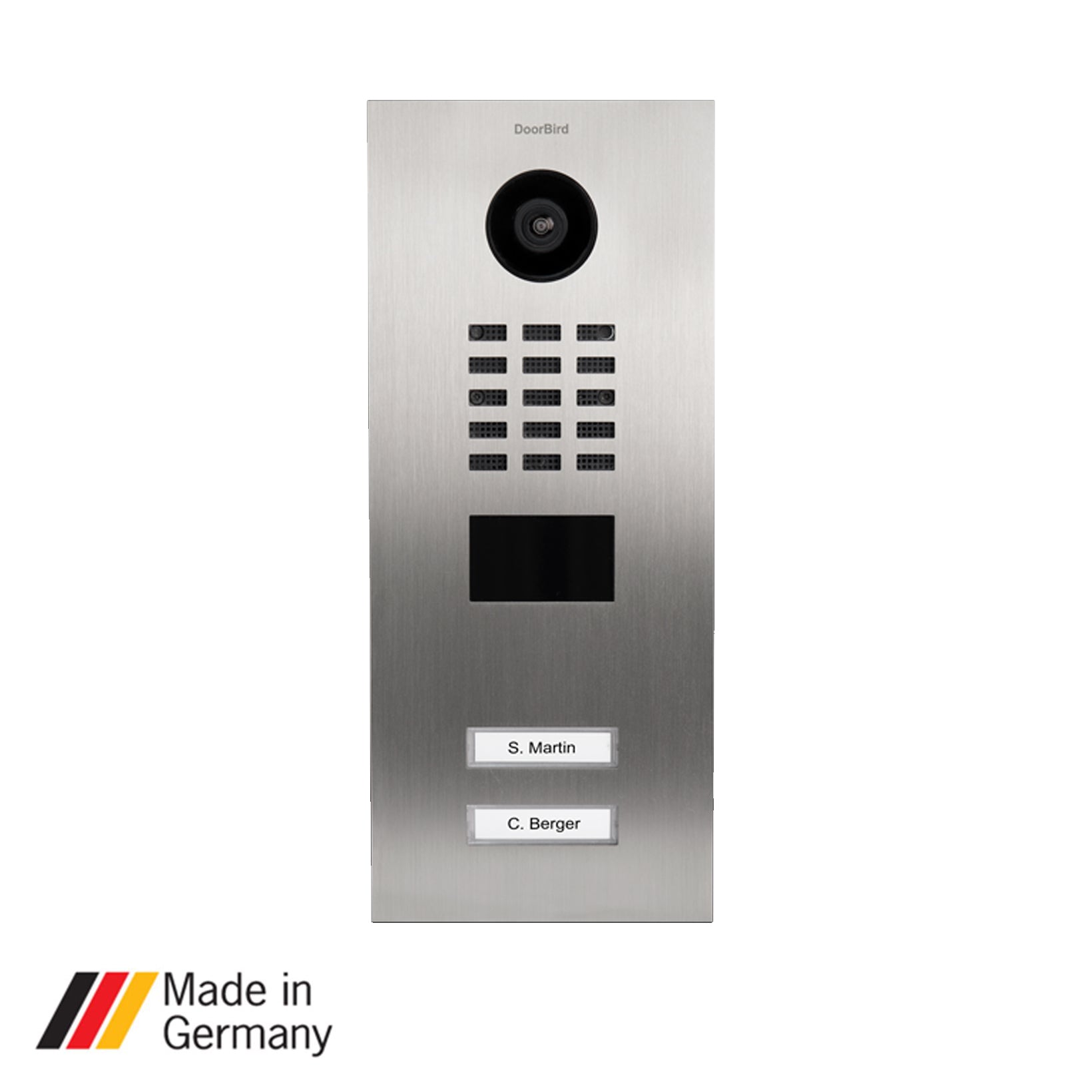

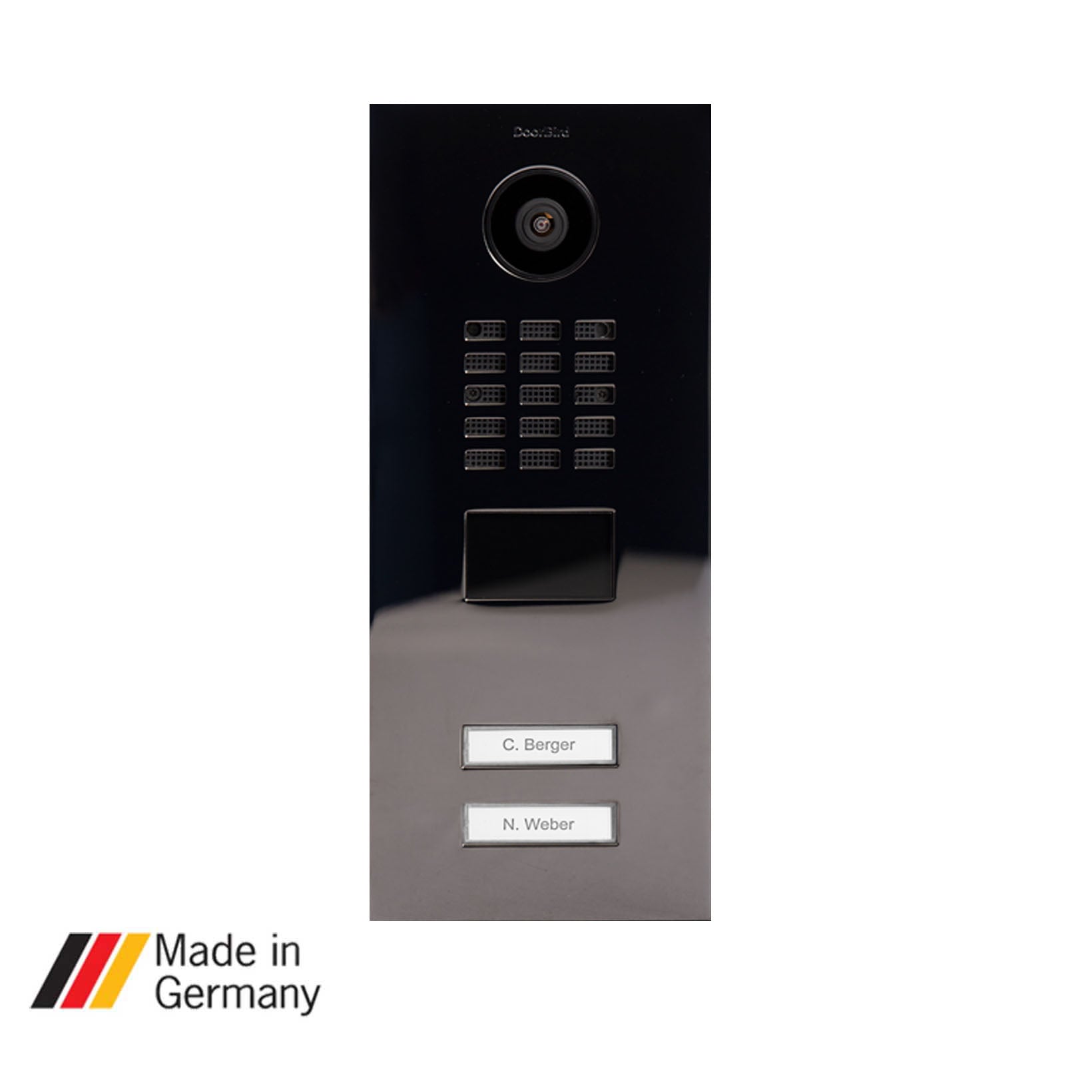

DoorBird D2102V, Surface & Flush Mount Possible, IP Video Door Station, 2 Units, 2 Call Buttons, (Housings sold separately)

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

For multi-tenant buildings and businesses with 2 units, 2 call buttons

Stainless steel V2A, brushed
  • Surface- and flush-mount possible, housings sold separately
  • LAN connection (PoE capable)
  • 2-way audio
  • Ultra-wide angle lens, 720p, night vision, 12 IR LEDs
  • 4D motion sensor, RFID reader
  • 2 freely configurable bistable switching relays
    • Open API
      Local interface for integration with third-party systems and SIP
    • Video and audio call
      On smartphones, tablets (iOS, Android), IP and landline phones (SIP)
    • Smart Transmission Mode (STM)
      Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G
    • Smart Home & NVR compatible
      Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others
    • Automatic door buzzer
      For use in medical offices and office environments
    • Individual action schedules, e.g.:
      RFID card “abc” has only access on Wednesday from 9 am until 11 am
      4D motion sensor switches on external lamp between 9 pm and 6 am
    • Geofencing
      Automatic door and gate opening when returning home
    • Night vision
      With 12 Infrared LEDs
    • HDTV Video
      Ultra wide-angle, hemispheric lens, 180°
    • Light sensor
      For night vision mode
    • Microphone
      Clear voice transmission
    • Noise reduction and echo cancellation (AEC, ANR)
    • RFID reader
      Configurable remotely via App (e.g. time frame)
    • Motion sensor with 4D technology
      Distance up to 10 m (32.8 ft) adjustable via App (interval: 1 m/ 3.3 ft)
    • Call button
      With backlit nameplate
    • Easy connection to the network
      Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DooBird A1071” (PoE, network data)
    • Two freely configurable bi-stable switching relays
      Two doors or gates can be controlled via App
      Status configurable via App: temporary or permanent circuit
    Type 2-Call Button
    Camera Resolution 720p HDTV
    Camera View Angle 180 x 90 deg (Horizontal x Vertical)
    Camera IR Night Vision Yes
    Audio System Speaker and Microphone, Echo and Noise Cancellation (AEC, ANR)
    Interface RJ-45 Jack, PoE 802.3af Mode-A Ethernet
    Sensor Technology 4D
    Sensor Configuration Movement Direction, Individual Events, Individual Schedules
    Sensing Angle 110 deg
    Sensing Range 1 - 10 m
    RFID Type Active Reader Passive Tag System
    RFID Configuration Tag, Individual Events, Individual Schedules
    RFID Range 0 - 3 cm
    RFID Frequency 125 khz
    Connector Type RJ-45 For LAN/PoE, Bi-Stable Latching Relay, Maximum 1 - 24 VDC/VAC, 1 A, Bi-Stable Latching Relay, Maximum 1 - 24 VDC/VAC, 1 A, Switch Relay, Maximum 1 - 24 VDC/VAC, 1 A, External Input (Potential-Free) For External Door Opener Button, 15 VDC Input
    System Requirements Newest iOS on iPhone/iPad, Newest Android on Smartphone/Tablet, High Speed Landline Broadband Internet Connection, DSL, Cable or Fiber Optic, Ethernet Network with DHCP
    Integrated Wireless Modules 125 khz RFID, 26 Ghz Sensor
    Power Supply 15 VDC or PoE
    Material Stainless Steel
    Finish Brushed
    Enclosure IP65
    Mounting Type Flush
    Dimensions 5.16 Inch W x 1.92 Inch D x 12.32 Inch H
    Environmental Conditions -13 to 131 deg F Operating Temperature, 10 - 85% Humidity Non-Condensing
    Includes 1 x Main Electrical Unit, 1 x Front Panel, 1 x Mounting Housing (Backbox), 1 x Power Supply Unit (Mains Adaptor) with Four Country-Specific Adaptors (110 - 240 VAC to 15 VDC), 1 x RFID Key Fob, 1 x Screwdriver, 1 x Quickstart guide with Digital Passport, 1 x Installation Manual, 1 x Small Parts
