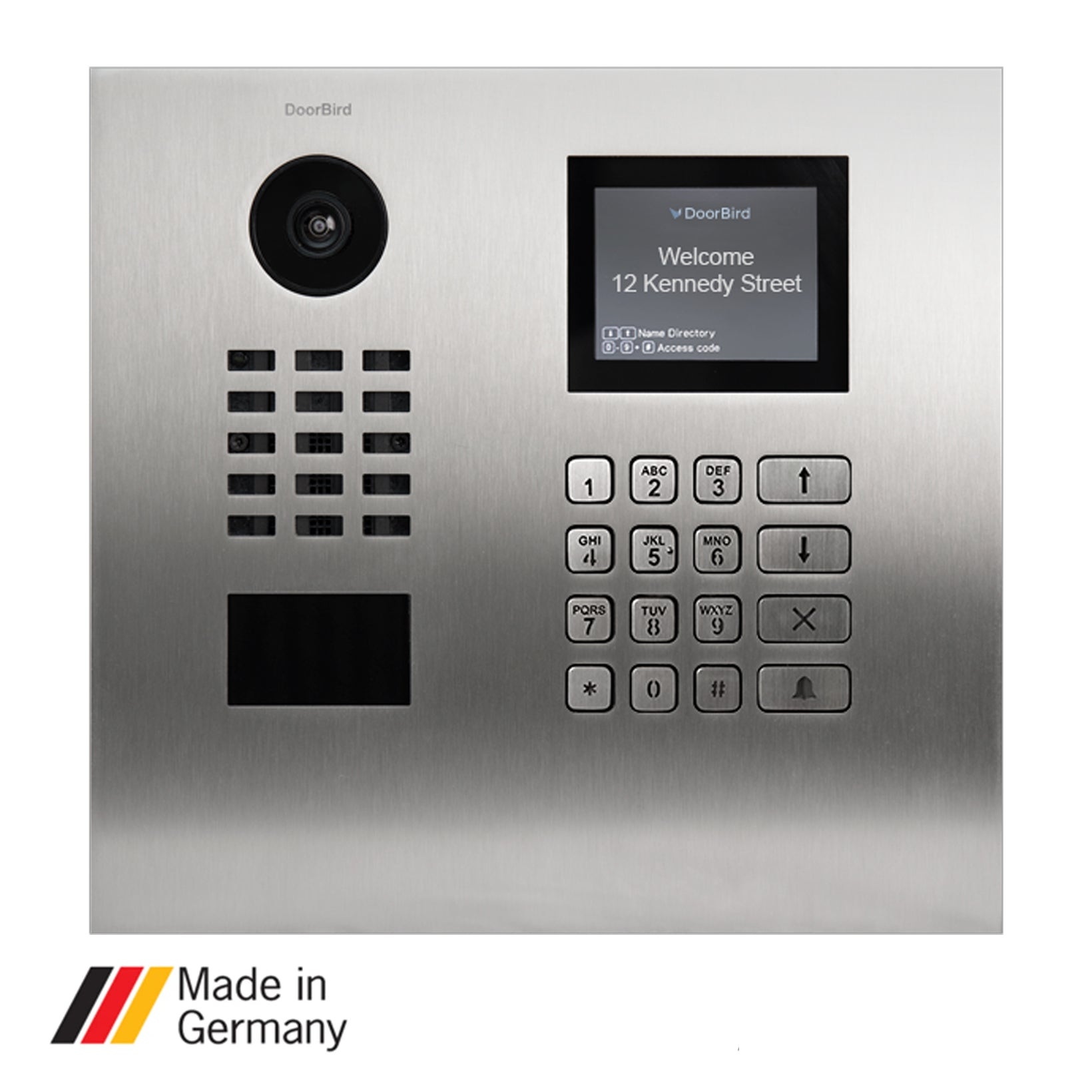

DoorBird D21DKH, Surface & Flush Mount Possible, IP Video Door Station, Display Module, Keypad Module Up to 500 Units, (Housings sold separately)
by DoorBird
SKU DBD21DKH-V2A
For multi-tenant residences and buildings with up to 500 units
Stainless steel V2A, brushed- Surface- and flush-mount possible, housings sold separately
- LAN connection (PoE capable)
- 2-way audio
- Ultra-wide angle lens, 720p, night vision, 12 IR LEDs
- 4D motion sensor, RFID reader
- Keypad, display module
- 2 freely configurable bistable switching relays
-
Open API
Local interface for integration with third-party systems and SIP -
Video and audio call
On smartphones, tablets (iOS, Android), IP and landline phones (SIP) -
Smart Transmission Mode (STM)
Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G -
Smart Home & NVR compatible
Control4, Loxone, Crestron, Synology, AVM FRITZ!Fon, URC, QNAP, RTI, ELAN, Fibaro, Bang & Olufsen and others -
Automatic door buzzer
For use in medical offices and office environments -
Free visitor history
Store still images for free, optional video recording available -
Individual action schedules, e.g.:
RFID card “abc” has only access on Wednesday from 9 am until 11 am -
Geofencing
Automatic door and gate opening when returning home -
Night vision
With 12 Infrared LEDs -
HDTV Video
Ultra wide-angle, hemispheric lens, 180° -
Light sensor
For night vision mode -
Microphone
Clear voice transmission - Noise reduction and echo cancellation (AEC, ANR)
-
RFID reader
Configurable remotely via App (e.g. time frame) -
Call button
With backlit nameplate -
Easy connection to the network
Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DooBird A1071” (PoE, network data) -
Two freely configurable bi-stable switching relays
Two doors or gates can be controlled via App
Status configurable via App: temporary or permanent circuit -
Keypad Module
Configurable via App
More than 500 individual PIN codes
Individual events (e.g. trigger a relay, HTTP(s) request) -
Display Module
Distance sensitivity on/off
Individually configurable, e.g.: display of the resident directory, welcome message
Key Pad Module:
- 16 keys, illuminated, configurable via App, e.g. Individual PIN codes Individual events (e.g. switch a relay, push notification, SIP call [audio/ video], HTTP(s) notification)
- Individual schedules
- Built In RFID and lock strike capabilities for access control
- Requires hard line connection either ethernet CAT5/6 or using 2 wires with Doorbird POE Converter Kit (A1071)
- Professional Integrator Installation Recommended
System requirements:
- Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet
- Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server
- Network: Ethernet Network, with DHCP
| Â Front panel | Â Brushed stainless steel, 3 mm (0.12 in) |
|---|---|
| Mounting housing(backbox) | Stainless steel |
| Mounting type | Flush-mounted, surface-mounting housing sold separately |
| Power supply | 15 V DC or Power over Ethernet (PoE 802.3af Mode-A) |
| Display Module | 3.5“ LCD (no touch function), illuminated |
| Keypad Module |
|
| Connectors |
|
| Weather-proof | Yes, IP65 |
| Approvals | CE, IC, FCC, RoHS, IP65, IK08 |
| Scope of delivery | 1 x Main Electrical Unit 1 x Front panel 1 x Mounting housing (backbox) 1 x Power supply unit (mains adaptor) with four country-specific adaptors (110 - 240 V AC to 15 V DC) 1 x RFID key fob 1x Screwdriver 1x Quickstart guide with Digital Passport 1x Installation manual 1x Small parts |
| Camera | HDTV 720p, dynamic (VGA – HDTV) |
| Lens |
|
| Audio components | Speaker and microphone, echo and noise cancellation (AEC, ANR) |
| Audio streaming | Two-way, full duplex |
| Ethernet | RJ45 jack, PoE 802.3af Mode-A |
