Platinum Tools  |  SKU: PT100028C

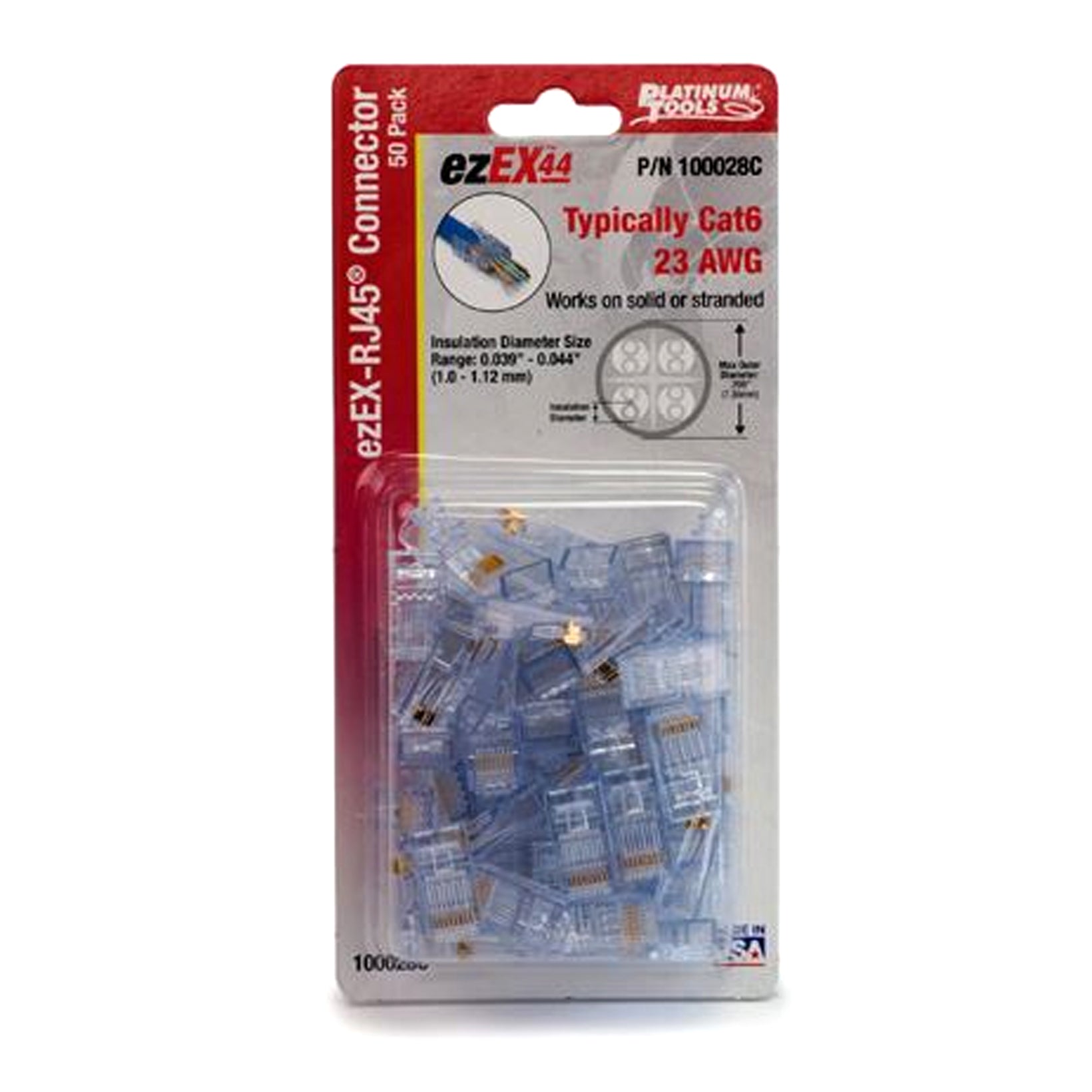

Platinum Tools 100028C, ezEX44 Connectors, 50 Clamshell

⚠️ Authorized Dealers Only

Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.

Log in Apply to Become a Dealer

Platinum Tools 100028C, ezEX44 Connectors, 50 Clamshell is backordered and will ship as soon as it is back in stock.

Description

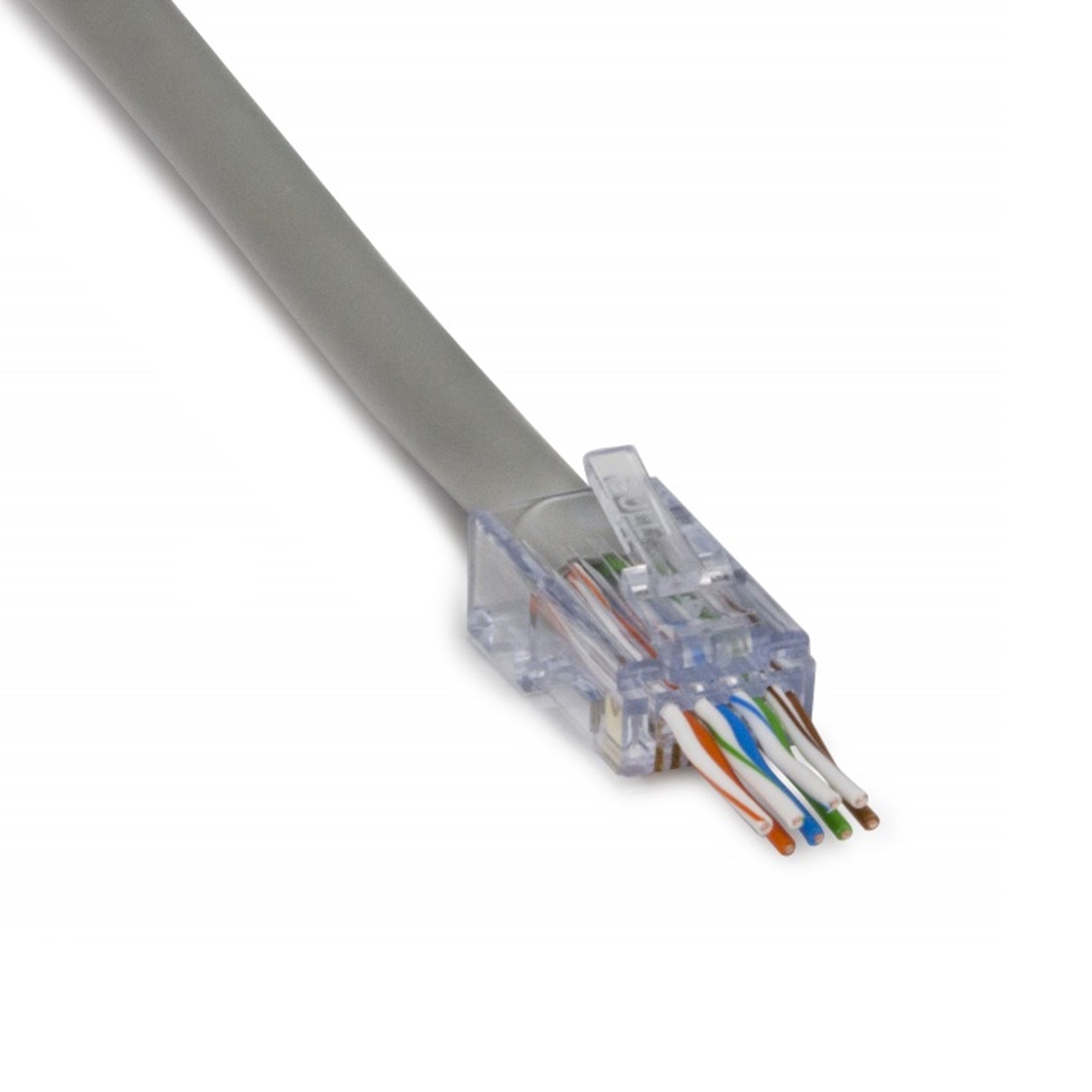

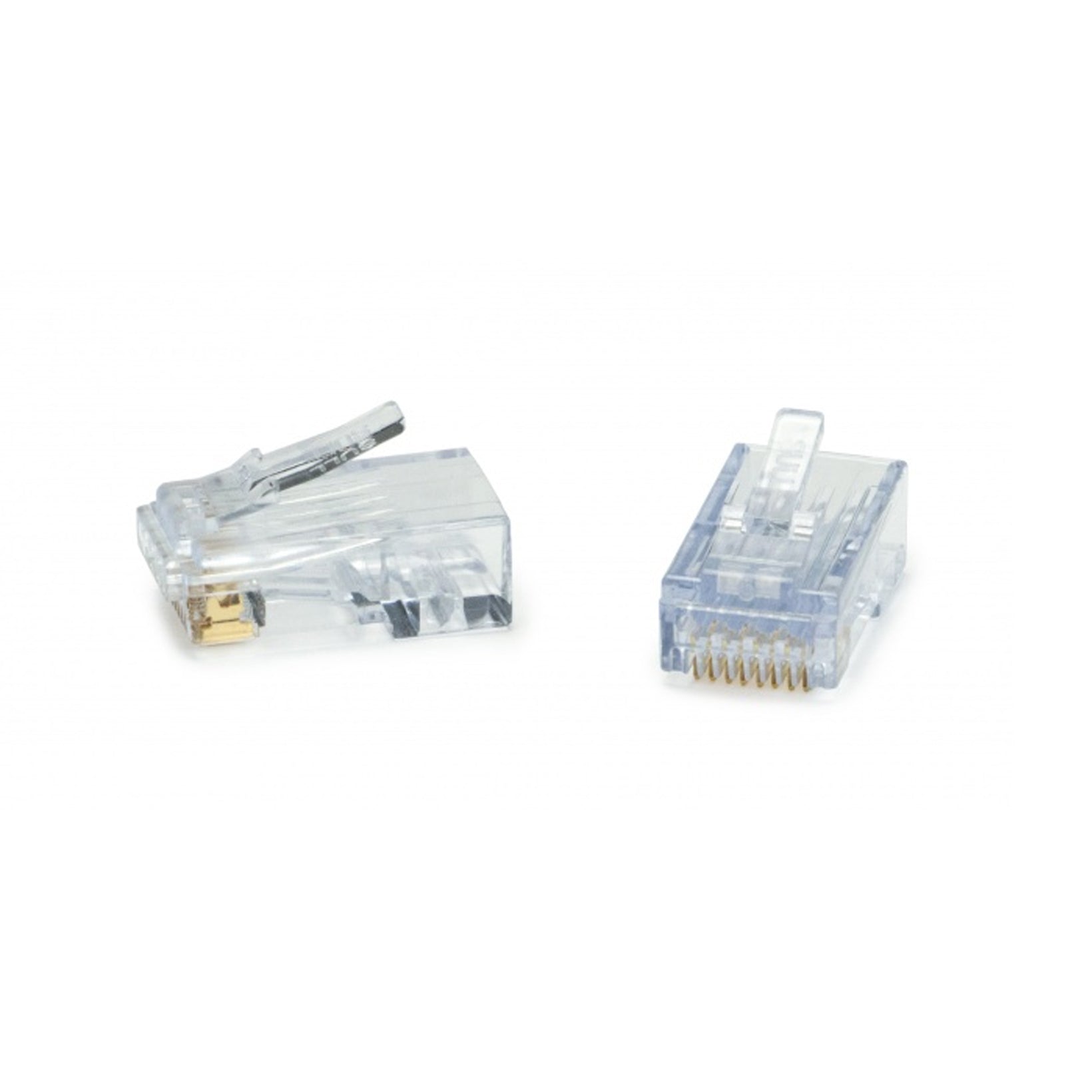

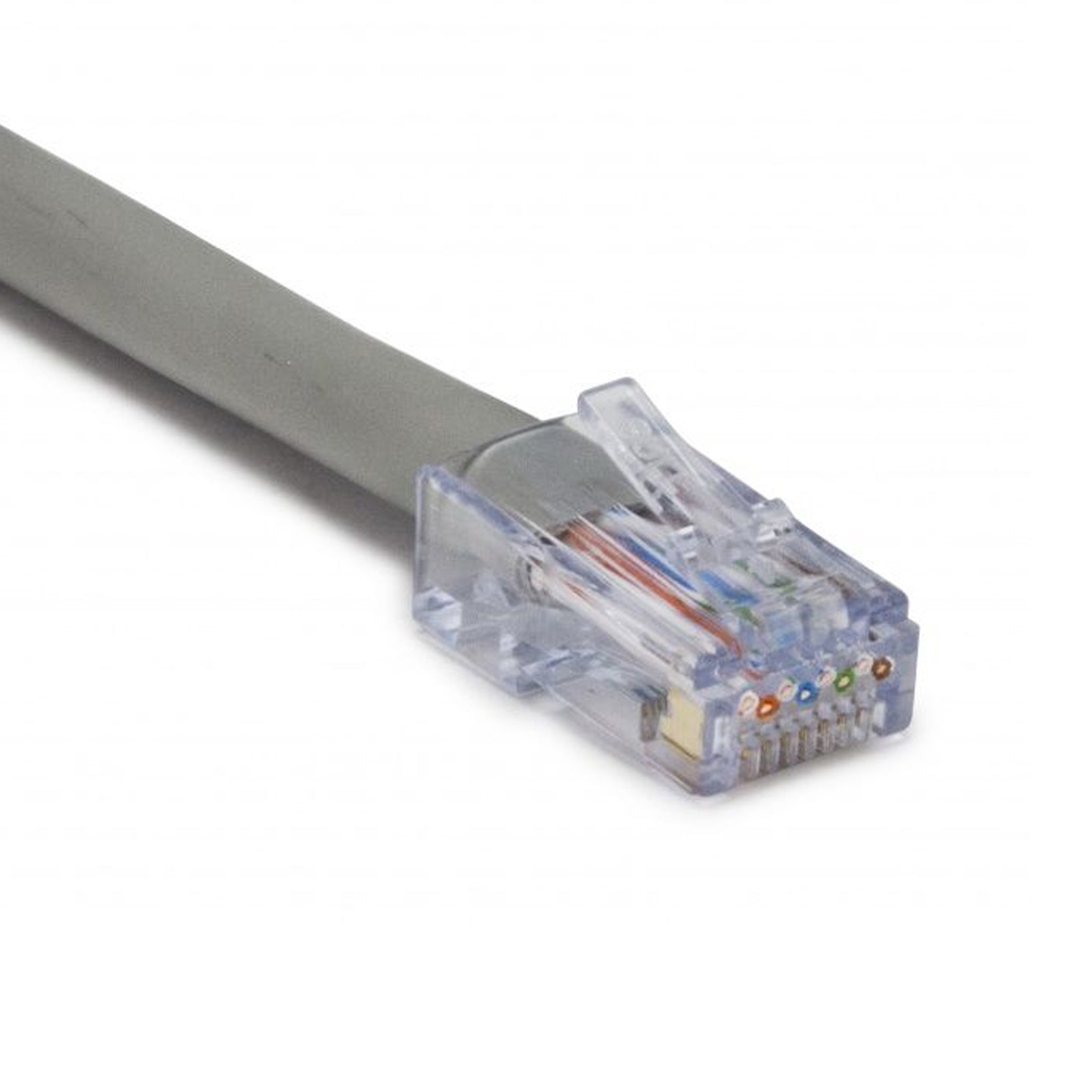

This RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6 and is terminated with EXO™ Crimp Frame and EXO-EX Die (100061C).

Features
  • Hi-Lo stagger to isolate each conductor
  • Simple one piece/pass through design, no bars or liners
  • Insulation Diameter (Conductor) Size range: .039” – .044” (1.0 –1.12mm)
  • Max Outer Diameter: .290” (7.36mm)
  • Typically used with Cat6
  • 5e/6/6A compliant
  • Solid or Stranded 24-22 AWG
  • RoHS 2, UL & FCC compliant
  • Made in the USA
Specs
Part Number 100028C
Item Weight 0.8 ounces
Package Dimensions 4.5 x 2.5 x 1.0 inches
Pack 50 Pcs
Weight 0.5 lb
