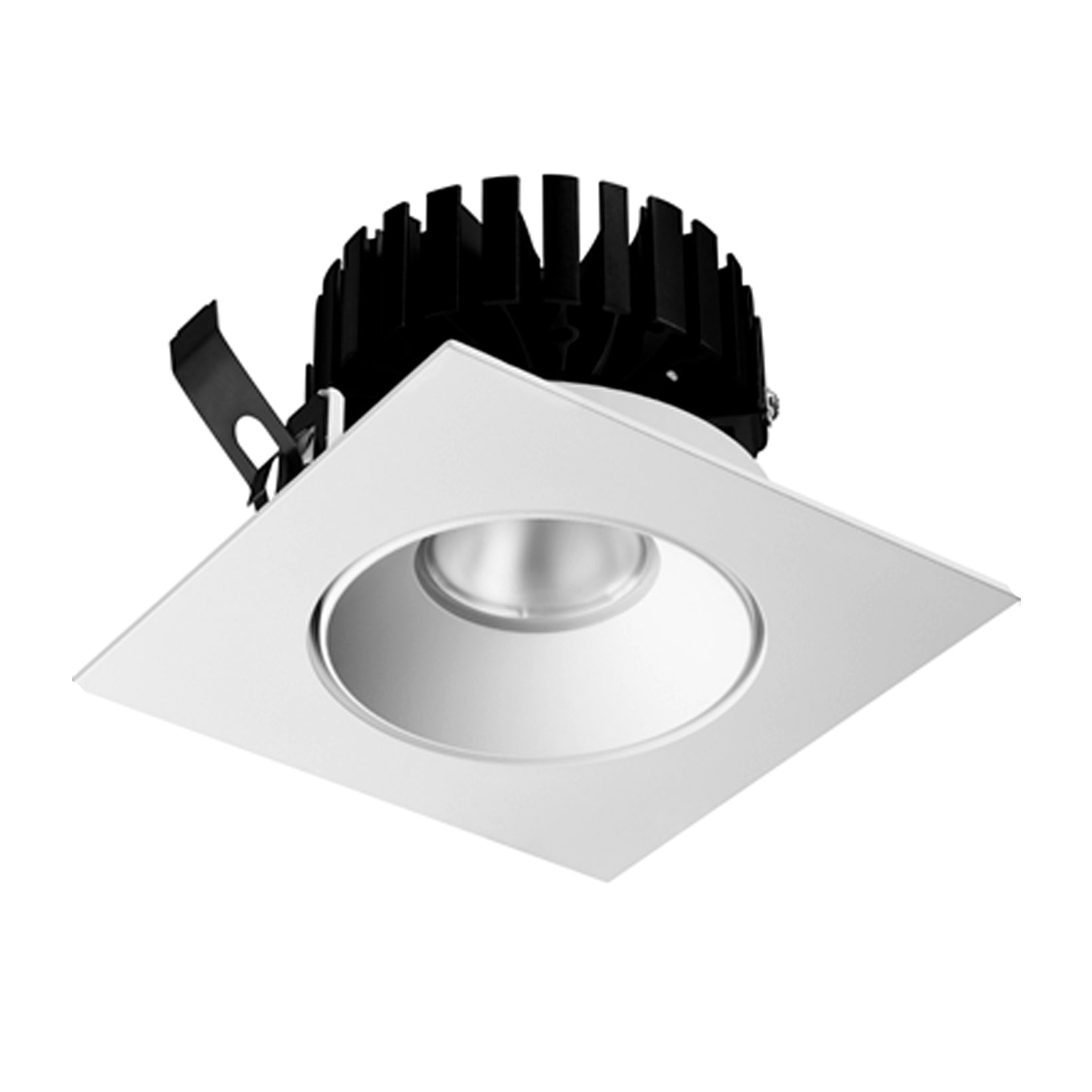

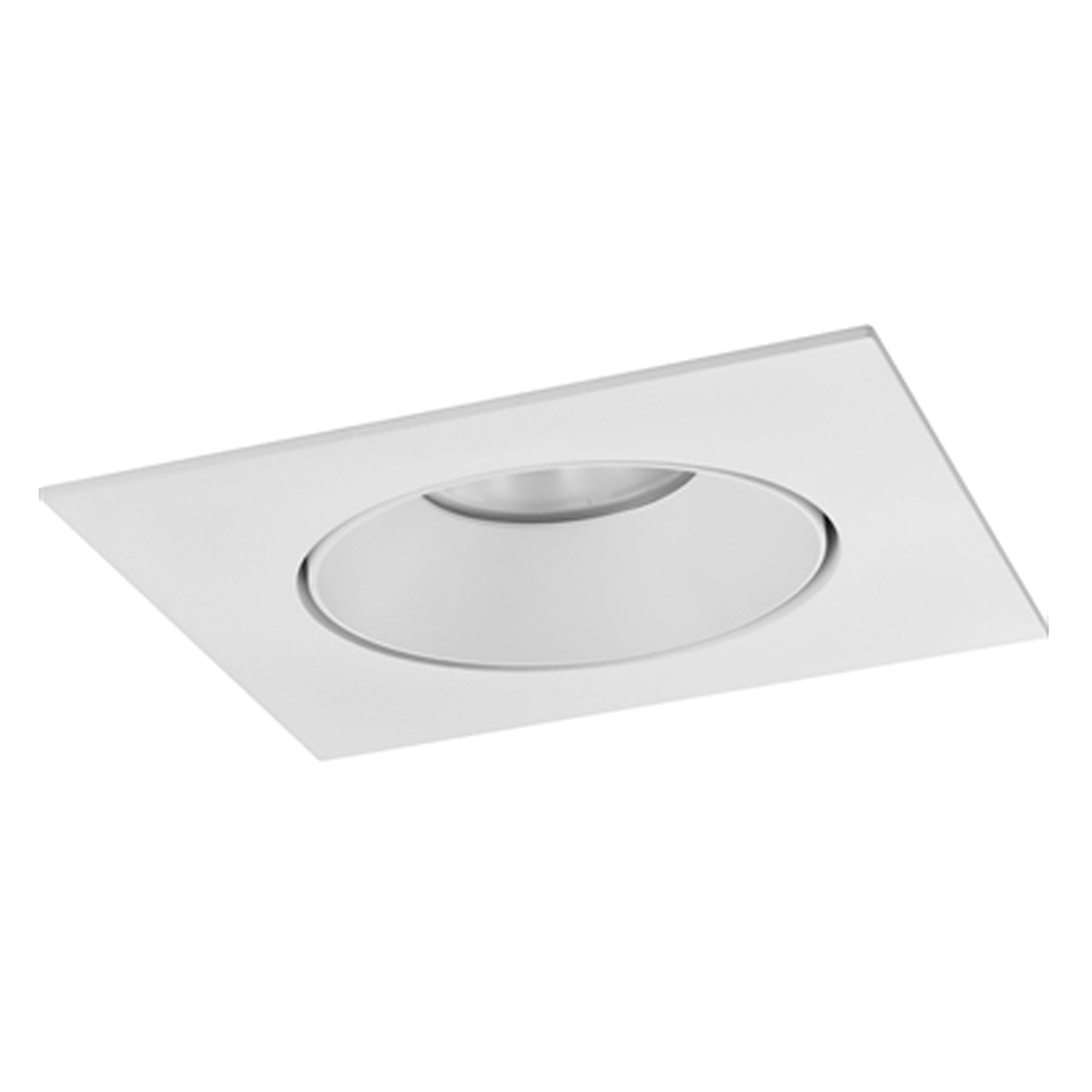

Lutron Finiré Prime SQUARE FPATS27X30MW
Finiré LED Recessed Lighting, from the Lutron Ivalo Collection, eliminates the guesswork of ensuring compatibility between LED fixtures, drivers and controls while guaranteeing high efficacy performance. Finiré works with Hi-lume LED driver compatible controls and dimmers, with products such as RadioRA 2 and HomeWorks QS.
Trim and housing are ordered separately and both are required to complete the fixture.
Select appropriate code in each column to complete model numbers.
Product will be shipped in bulk packaging for 4 or more units.
- LED luminaire, 90+ CRI, 1000 lumens maximum for IC and Non-IC, 850 lumens typical for Shallow IC.
- 2 step MacAdam Ellipse color consistency.
- Standard Lutron LED Driver delivers continuous, flicker-free dimming from 100% down to 1% of measured light output.
- Hi-lume 1% EcoSystem LED driver features Soft-on, Fade-to-Black technology.3
- Title 24 and Energy Star compliant.
- 5 year fixture, LED driver, and dimming warranty.
- 2-wire and EcoSystem control options.
- 2700 and 3000 K CCT.
- 30° and 65° optics available.
- Includes high efficiency frosted lens.
- IC and non-IC fixture options available.
- IC fixtures are rated for spray foam applications.4
- IC fixtures must be used in installations containing insulating materials. Non-IC fixtures cannot be used in these types of applications.
- IC fixtures meet airtight construction requirements for 2.0 CFM or less air leakage.
- Frame constructed using galvanized steel.

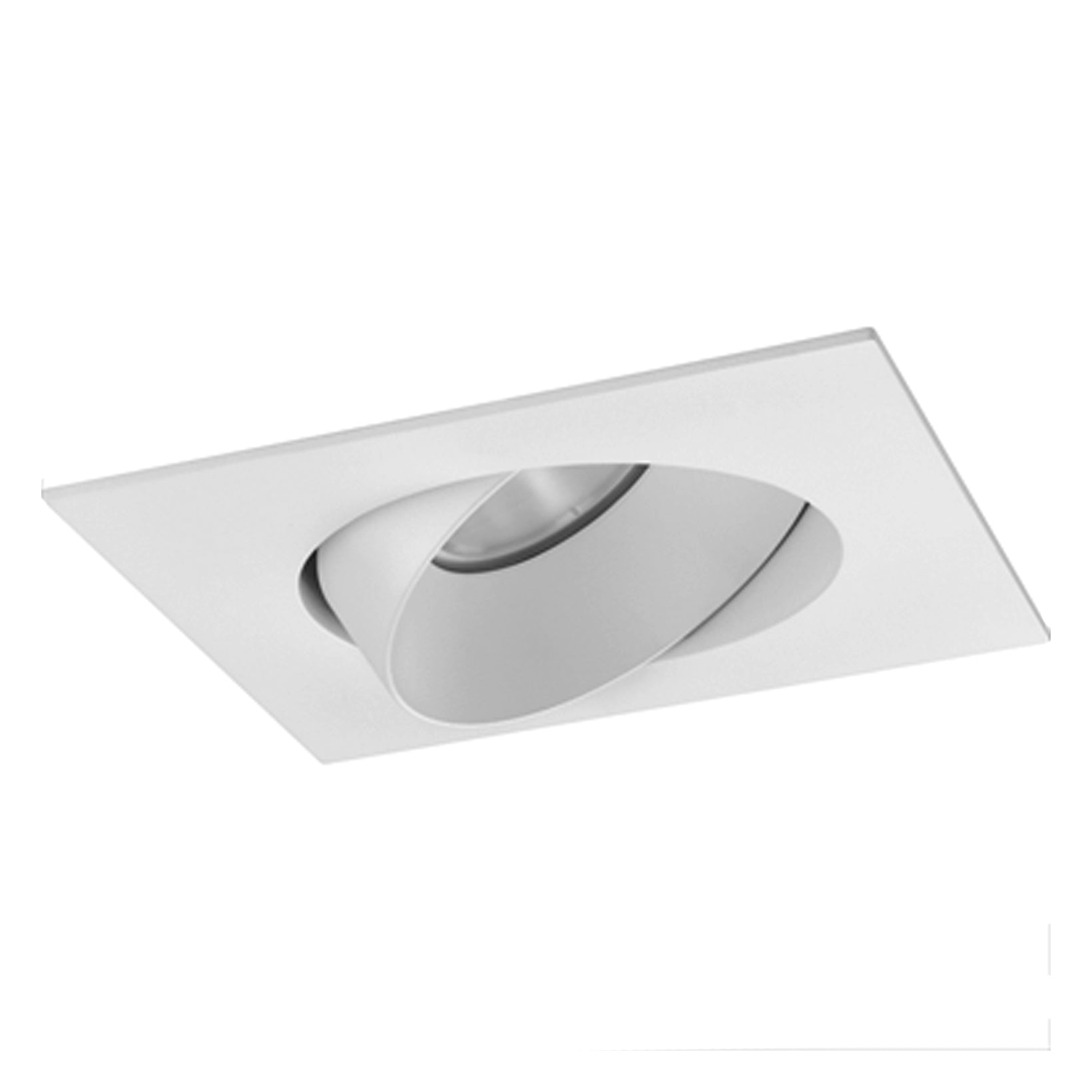

- Luminaires offer 25° maximum tilt.
- Fixture rotation is achieved through rotating entire trim/LED module. Round offers 360° rotation and square offers rotation in 90° increments.
- Supplied with standard 14 – 24 in (356 – 610 mm) adjustable bar hangers.
- Luminaires accommodate up to 0.625 in (16 mm) ceiling thickness.
- Thick ceiling accessory available for up to 1.5 in (38 mm) ceiling thickness.
- Field replaceable components [driver and light assembly (trim, reflector, and LED module)].
|Ambient Operating Temperature||32 – 104 °F / (0 – 40 °C)|
|Decibel Rating||Quiet in a 25 dB room|
|Maximum Ceiling Thickness||0.625 in (16 mm)|
|Ceiling Cutout||ø 4.5 in (114 mm)|
|Fixture Weight||8 lb (3.6 kg) IC 4.5 lb (2 kg) Non-IC|
|Fixture Size||– IC: 18.9 in x 9.5 in x 6.0 in|
|(480 mm x 241 mm x 152 mm)|
|– Non-IC: 10.5 in x 7.7 in x 3.5 in|
|(267 mm x 196 mm x 89 mm)|
|– Shallow IC: 18.9 in x 9.5 in x 3.9 in|
|(480 mm x 241 mm x 99 mm)|
|Junction Box Size||5.6 in x 3.0 in x 1.6 in|
