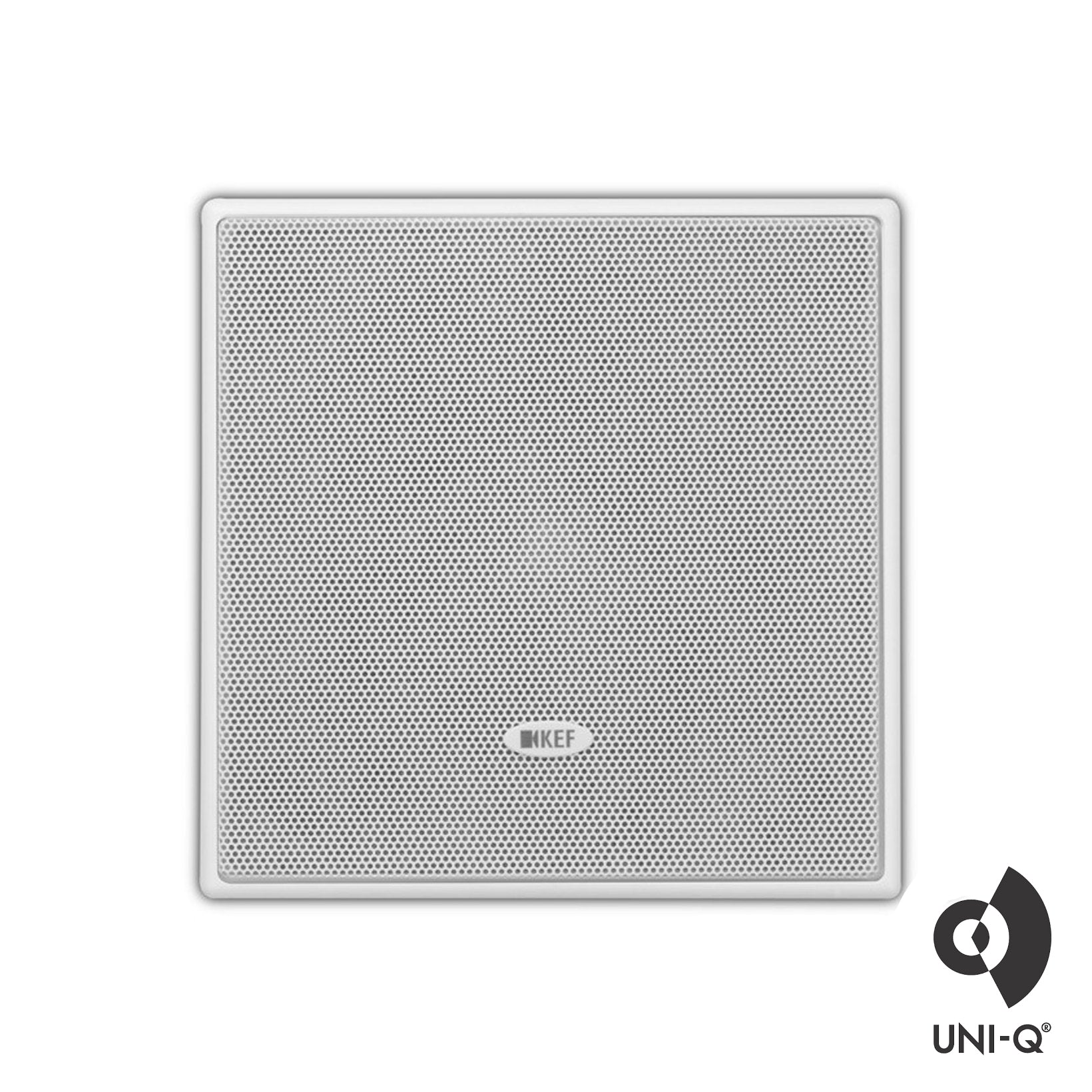

KEF CI130QSfl 5.25" Round In-Ceiling, Uni-Q Flush Mounted, Magnetic Grill.

by KEF
SKU KFCI130QSfl
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Flush Mount Architectural Speaker

The KEF Ci130QSfl is a flush-mounted frameless architectural speaker engineered for high-quality sound and simple installation. Designed for both new builds and retrofitting, Ci130QSfl sits flush with the wall or ceiling, making it ideal for properties with clean lines and minimalist features.

Ci130QSfl

Part of the Ci Q Series, Ci130QSfl is built around KEF’s signature Uni-Q array so it acts as a single point source, which combined with Tangerine Waveguide technology, disperses pristine sound throughout a room. The Ci130QSfl is a square loudspeaker, while the Ci130QRfl features identical drivers in a round format.

Intuitive Installation

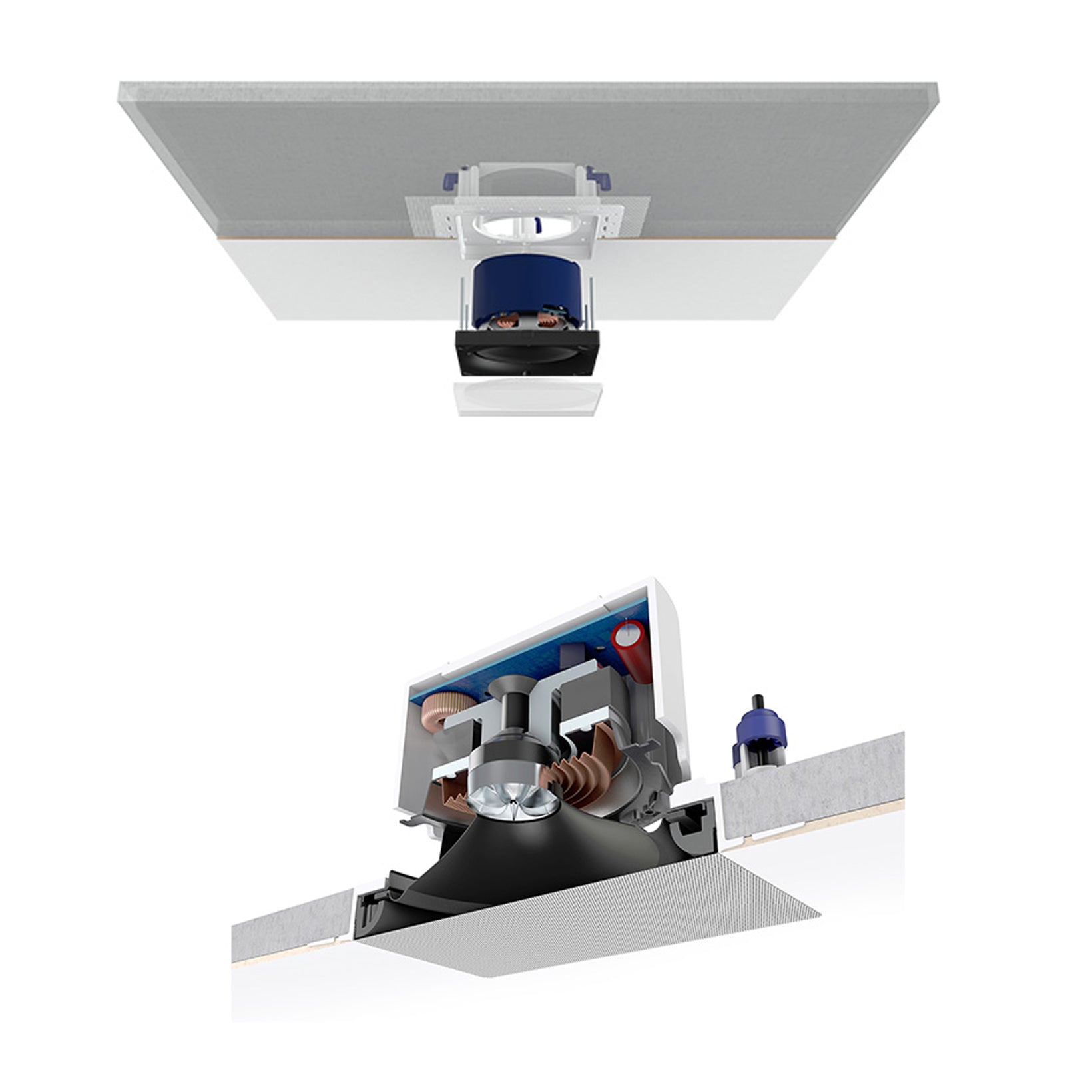

Ci130QSfl is engineered to be easy to install. Designed for both new construction and retrofitting, Ci130QSfl can be installed as part of the plastering process, and thanks to its frameless design it sits completely flush with the wall or ceiling for an incredibly clean finish.

Key Features

  • Flush mount design

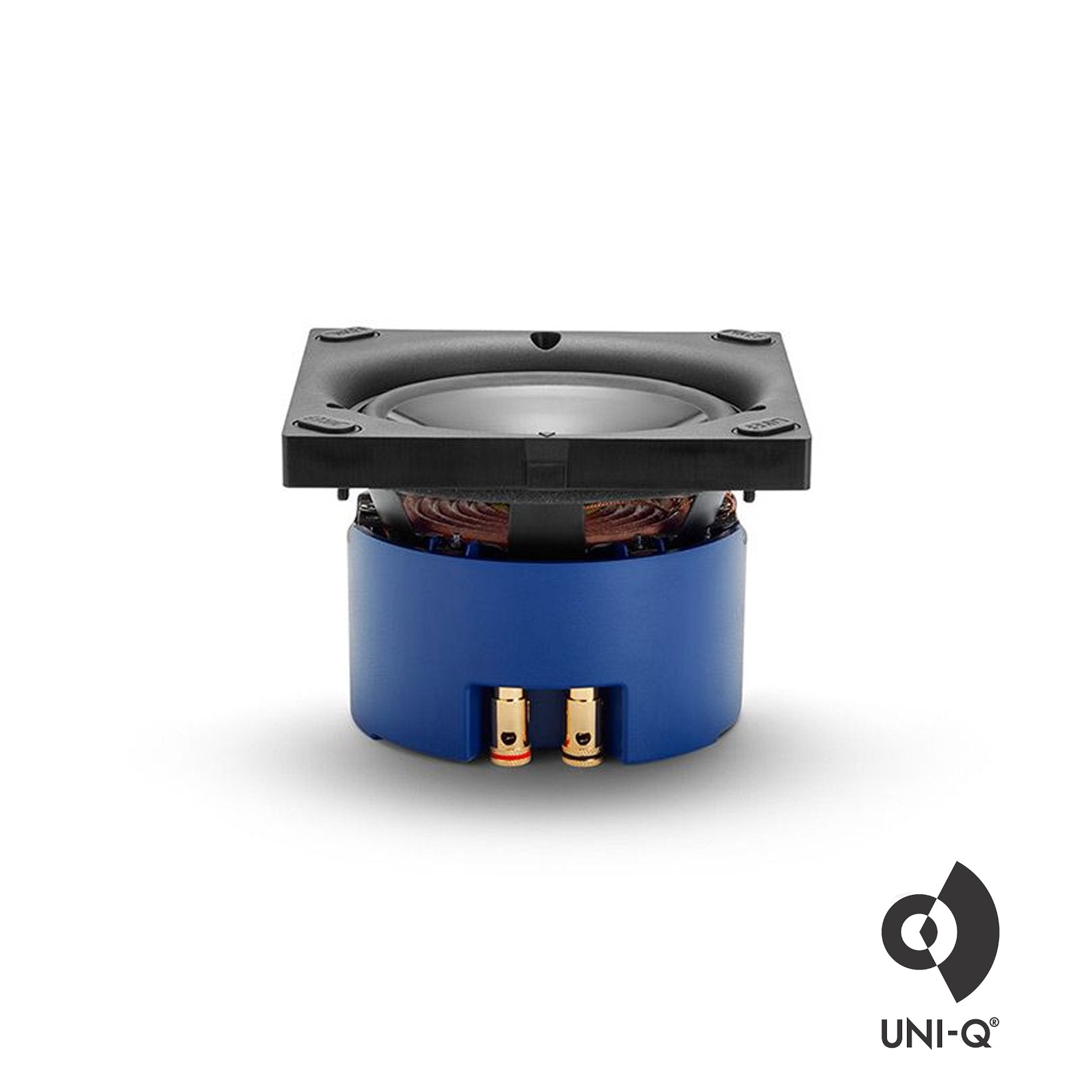

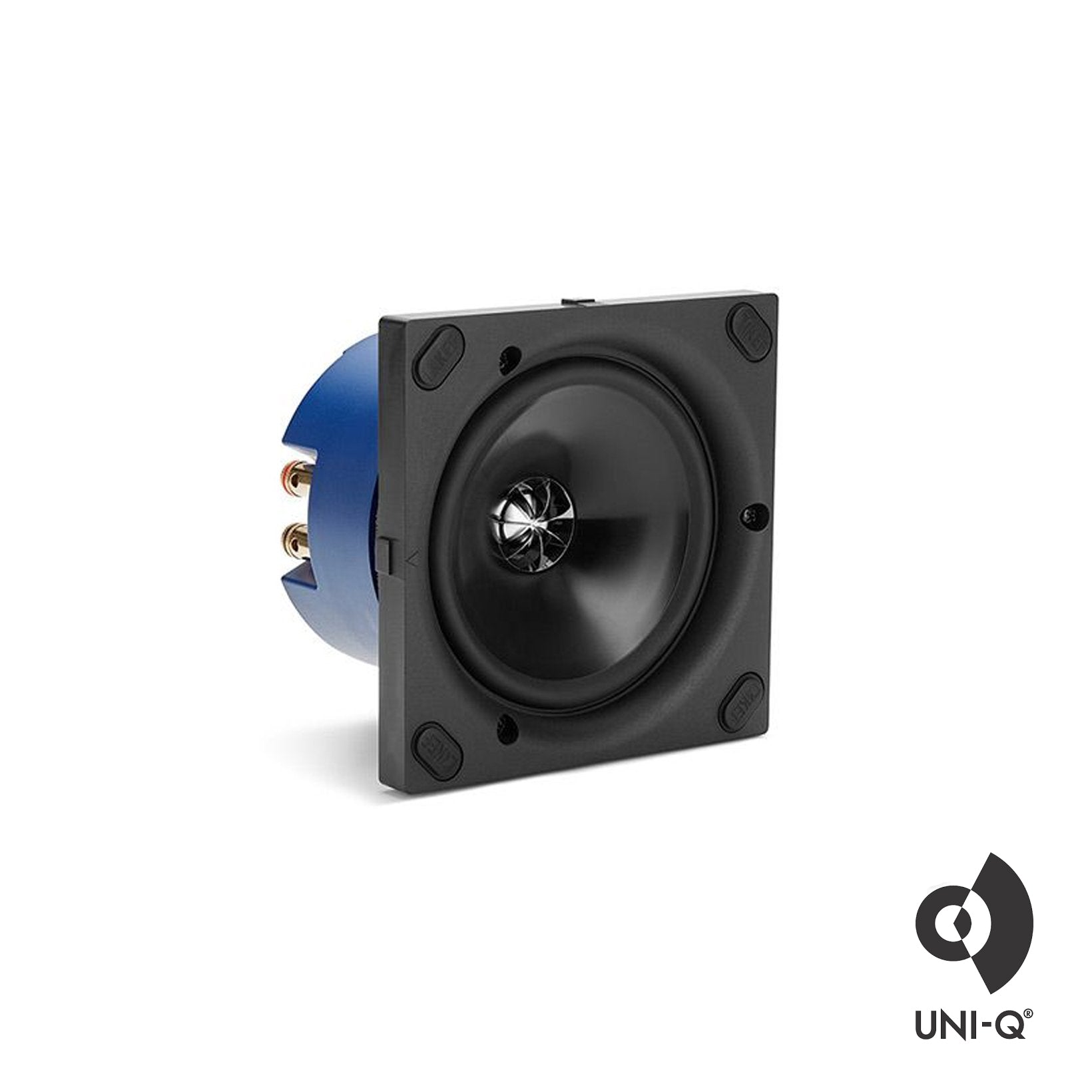

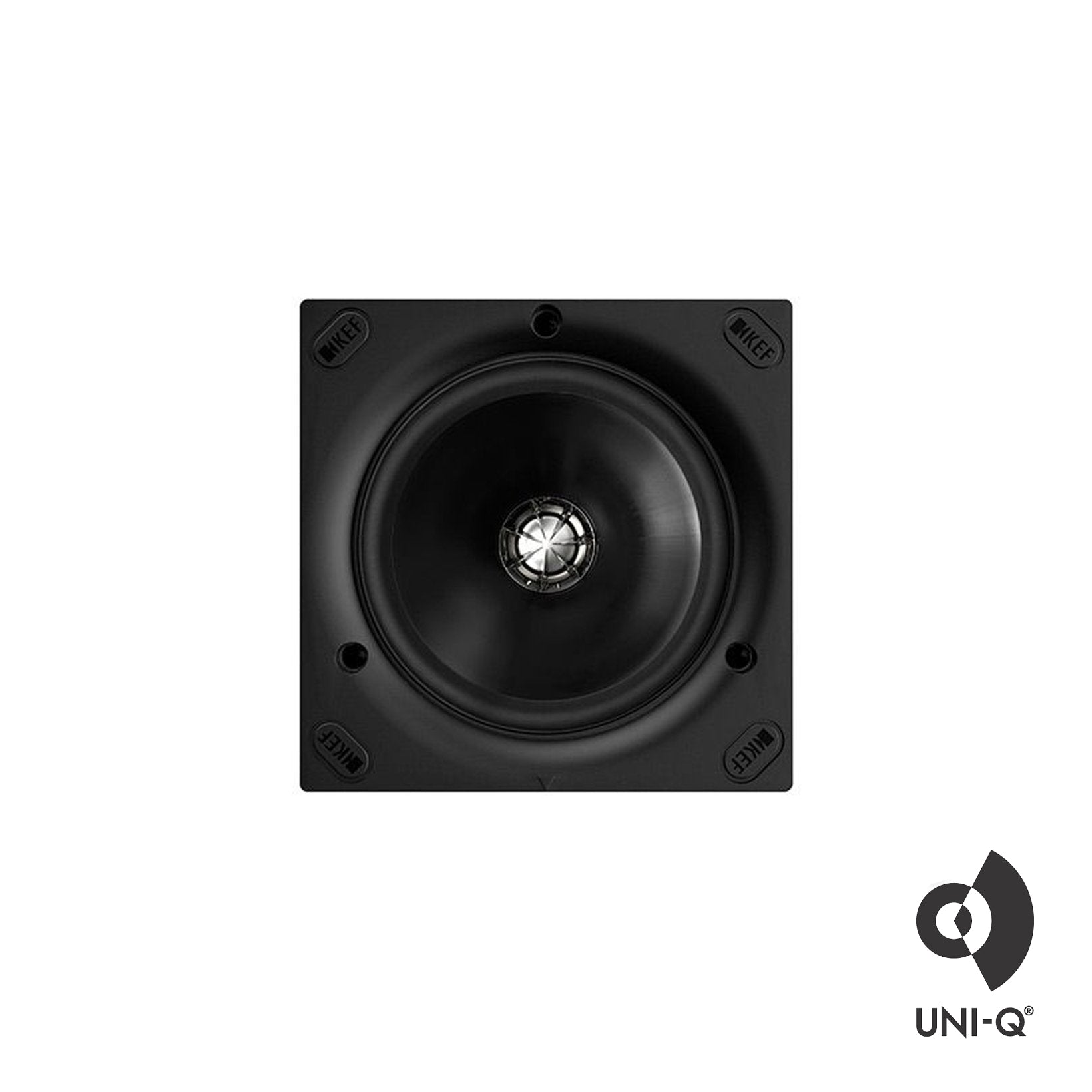

  • 130mm (5.25in.) Uni-Q driver
  • 19mm (0.75in.) Aluminium dome tweeter with tangerine waveguide
  • Magnetic grille
  • Paintable grille
  • Weather Resistant Construction
Model Ci130QSfl
Nominal Impedance 8 Ohms
Sensitivity 87dB (2.83V/ 1m)
Frequency Response (±6DB)Open-Backed 45Hz - 34kHz
Frequency Range (-10DB) 38Hz-30kHz
Max SPL (DB) 130
Crossover Frequency 3.8kHz
Drive Units LF: 130mm (5.25in.) Uni-Q
HF: 19mm (0.75in.)
External Dimensions Diameter Ø: 200.6mm (7.9in)
Depth: 104.6mm (4.12in)
Cut-out Dimensions Diameter Ø: 158mm (6.22in.)
Mounting Thickness Ceiling Thickness (Maximum): 31mm (1.220in.)
Ceiling Thickness (Minimum): 7mm (0.276in.)
Net Weight 1.45kg (3.19Ibs.)
Mounting Depth From Surface 101mm (3.98in.)
Minimum Rear Volume(L) 10
Ideal Rear Volume(L) 15
Mounting Thickness (Maximum) 35mm (1.38in.)
Mounting Thickness (Minimum)9mm (0.36in.)
