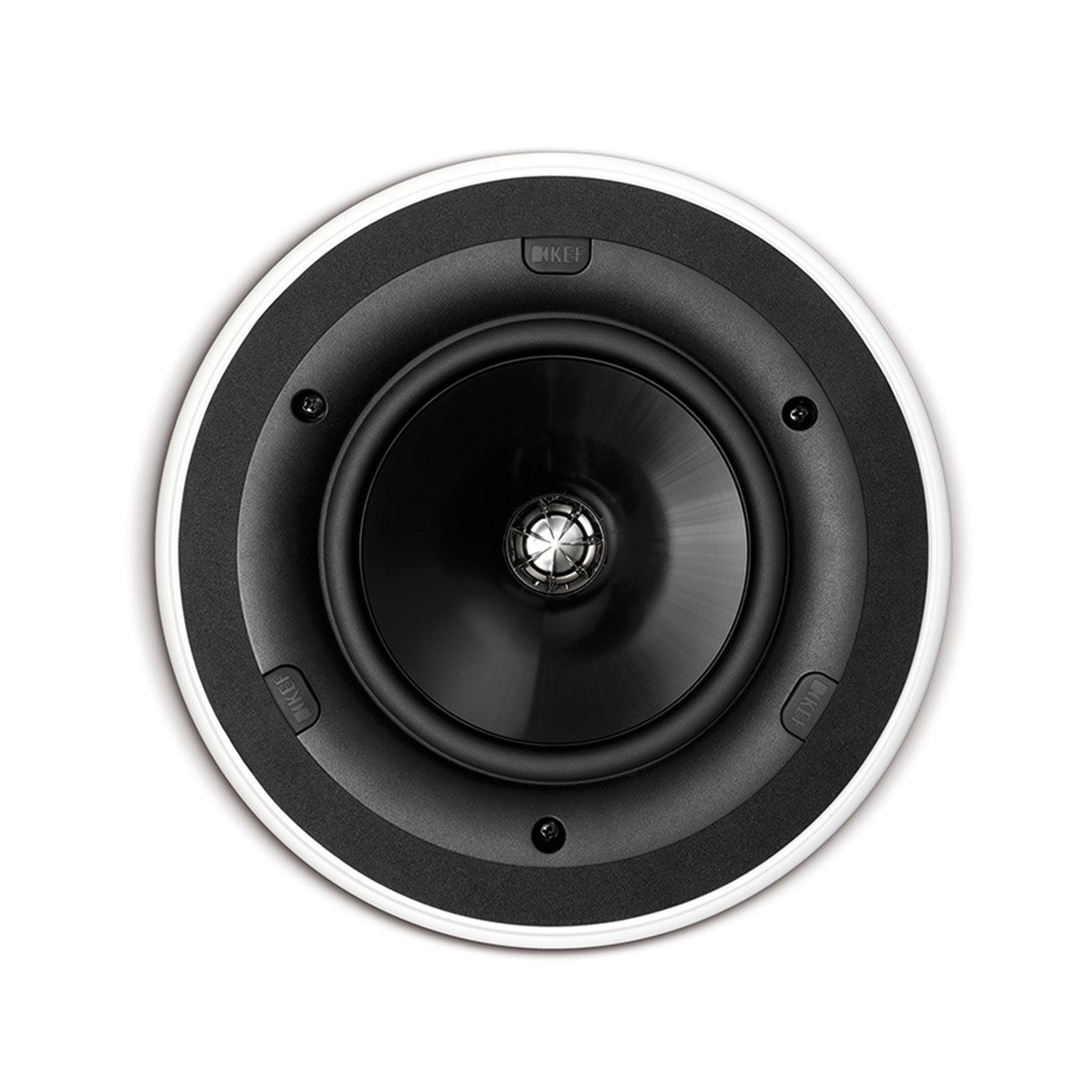

KEF CI160QR 6.5" In-Ceiling Speaker (Each)

by KEF
SKU KFCI160QR
ID: 12961300512840




This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Ci160QR Speaker

The stylish Ci160QR in-ceiling ultra thin bezel loudspeaker features a narrow rim allowing for flawless integration into your ceiling and KEF's patented Uni-Q driver, which spreads sound over a wider area - enabling you to use less speakers while optimizing the soundstage.

Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci Q Series range gives you tremendous freedom to position the speakers where you please.

Key Features

  • UTB™ Ultra Thin Bezel
  • 160mm (6.5in.) Uni-Q driver array
  • 19mm (0.75in.) Aluminium dome tweeter and 'tangerine' waveguide
  • Gold plated spring loaded binding posts
NOMINAL IMPEDANCE 8 Ohm
SENSITIVITY 89dB (2.83V/ 1m)
FREQUENCY RESPONSE 38Hz - 34kHz (±6dB) open backed
CROSSOVER FREQUENCIES 3.0kHz
DRIVE UNITS LF: 160mm (6.5in.)
HF: 19mm (0.75in.) Uni-Q
RECOMMENDED AMPLIFIER POWER 10-125W
PRODUCT EXTERNAL DIMENSIONS Diameter : 234.6mm (9.24in.)
Depth : 98mm (3.86in.)
CUT-OUT DIMENSIONS Diameter :196mm (7.71in.)
MOUNTING DEPTH FROM SURFACE 91mm (3.58in.)
NET WEIGHT (4.5 lbs.)
