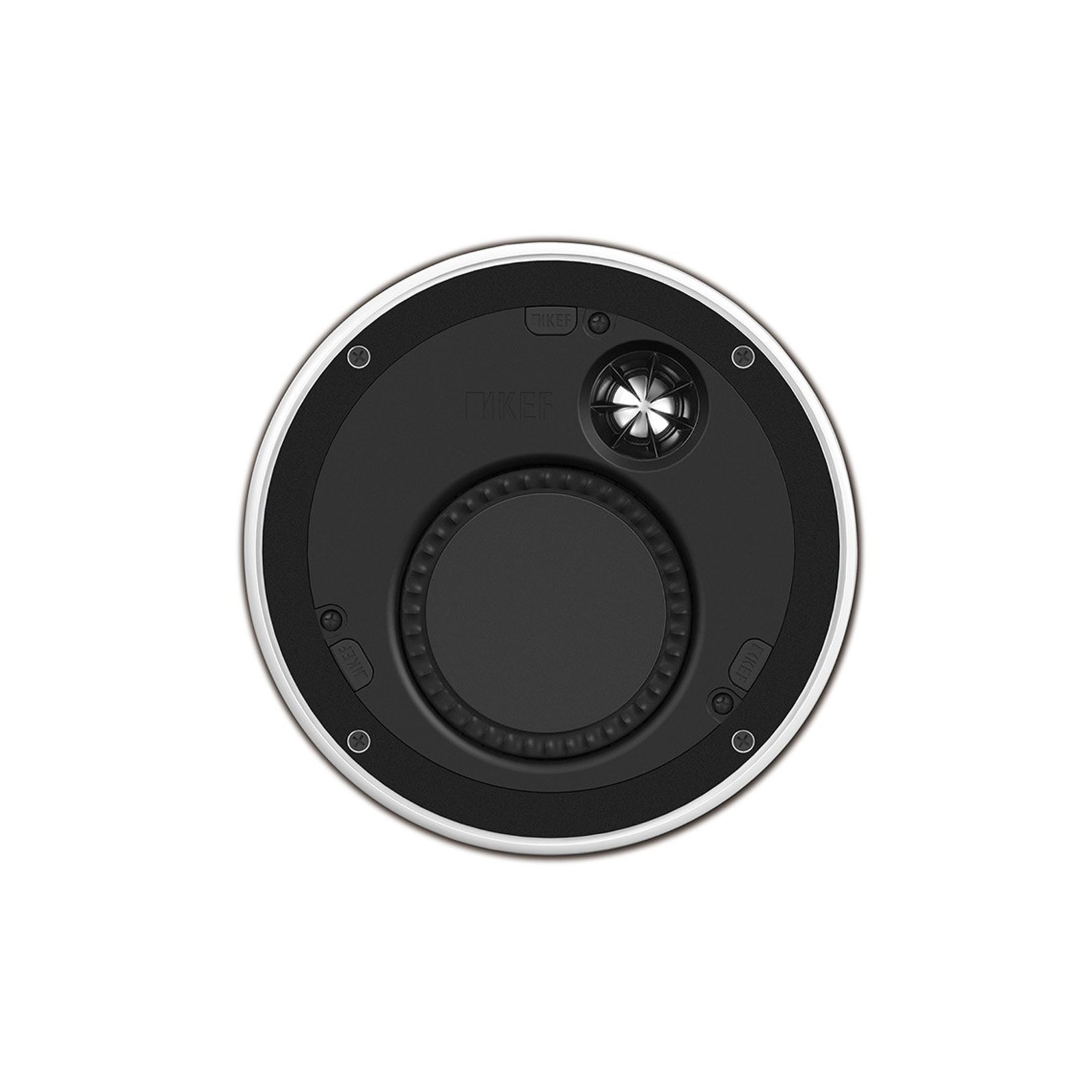

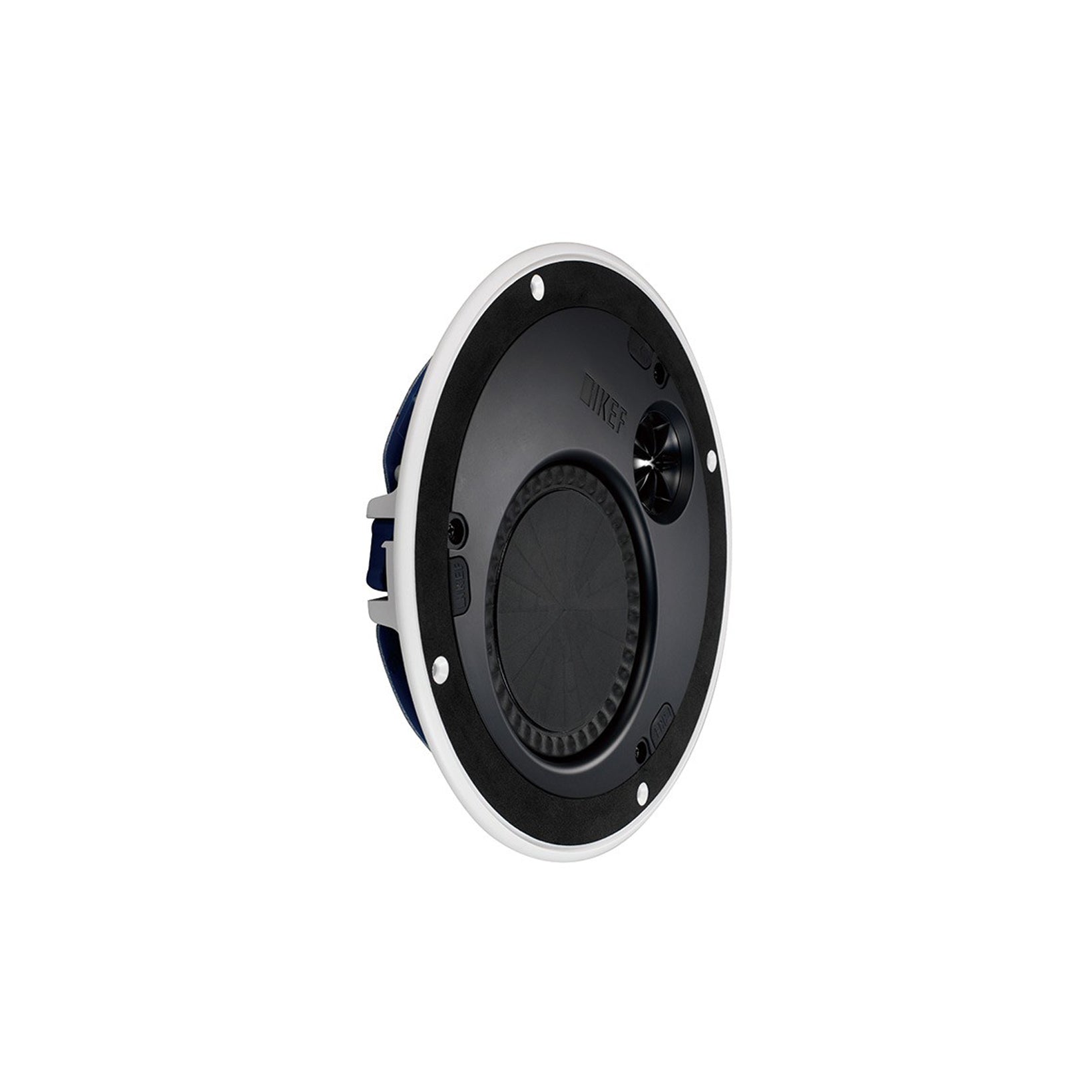

KEF CI160TR Ultra-Slim 1.61" 2-Way Round Speaker (Each)

by KEF
SKU KFCI160TR
ID: 12961300578376




This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Ci160TR Shallow Depth In-Ceiling Speaker

KEF's Ci160TR solves installation issues where cavity depth is a problem! Requiring a minuscule 36mm deep cavity for mounting and featuring KEF's formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim Ci160TR makes KEF’s uncompromised sound quality available even in applications where ceiling space is at a premium.

Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim new T Series Ci speakers open up new possibilities for enjoying KEF’s uncompromised sound quality where space above the ceiling is at a premium. Requiring less than 36mm of mounting depth, the Ci160TR fits snugly in very narrow ceiling spaces and is therefore specified for demanding applications such as today’s luxury high-rise apartments and super-premium motor yachts.

Key Features

  • 36mm mounting depth allows fitment to very restricted cavities
  • Ultra-low profile LF unit with excellent bass extension Vented tweeter with KEF’s unique ‘tangerine’ waveguide for natural HF response and wide, even dispersion
  • Rigid flat diaphragm assures clean upper bass and mid-range response Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
  • Fast, versatile installation on virtually any surface via dogleg or direct screw fastening
Series T Series
Nominal Impedance
Sensitivity (2.83V/ 1m) 87dB
Frequency response (±6dB)
open-backed
110Hz-24kHz
Crossover Frequency 1.7kHz
Drive Units LF: 115mm (4.5 in.) dual layer MF
HF: 25mm (1 in.) aluminium HF
Recommended Amplifier Power 10-100W
Product external dimensions Diameter: Φ234.6mm (Φ9.24 in.)
Depth: 40mm (1.57 in.)
Cut-out dimensions Φ196mm (Φ7.71 in.)
Mounting depth from surface (1.42 in.)
Weight (pounds) (2.2 lbs)
