KEF CI3160REF-THX Reference In-Wall THX Ultra2 Speaker (Each)

by KEF
SKU KFCI3160REFTHX
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Three-way 125mm Uni-Q / Two 160mm Bass Drivers The standards of architectural speakers have been reset forever.

We introduce the in-wall KEF Ci3160REF-THX - the newest addition to THE REFERENCE family, meeting KEF’s standards for Extreme Theatre as well as THX Ultra Certification.

Uni-Q driver array: At the heart of the Ci3160REF-THX is the 11th generation of the KEF’s signature innovation: the Uni-Q point source MF/HF driver array. With a 25mm vented aluminium dome tweeter at the exact acoustic centre of a 125mm mid-range driver, both act as a single source that floods the listening space evenly with a flawless natural sound field.

Bass drivers: Like everything else about THE REFERENCE, the bespoke 160mm LF driver optimised for use in-wall, is a class apart. With a massive vented magnet assembly and a large aluminium wire voice coil driving an exceptionally light, stiff and strong alloy cone, the dynamics and power handling are superb.

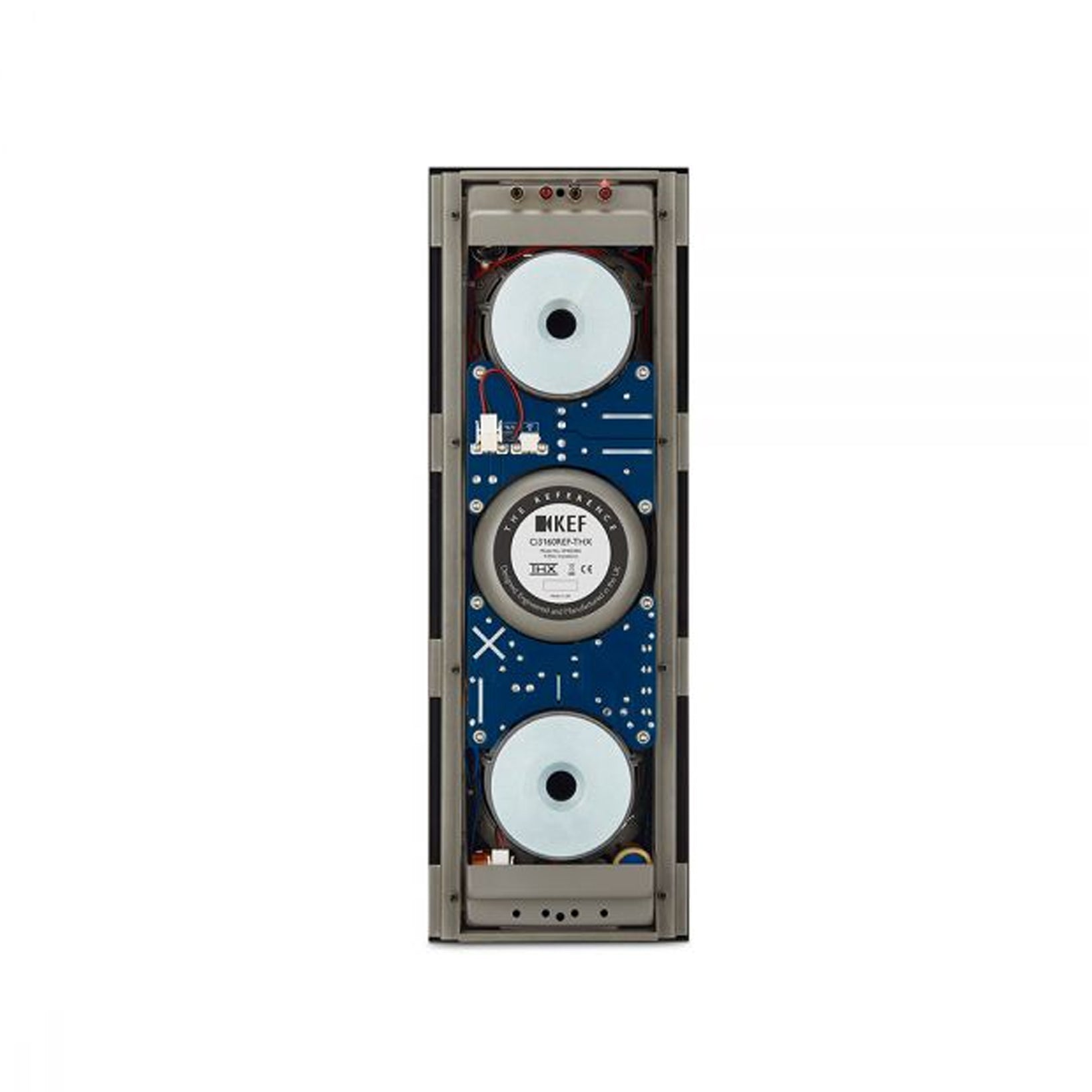

Crossover: KEF engineers computer-modelled the ideal crossover networks before exhaustively auditioning every high-grade component to select those with the lowest distortion and the smoothest response. Perfectionism takes time, but the difference is clear. Nothing is overlooked – the HF and LF crossovers are even mounted on separate boards to minimise crosstalk.

Ci3160REF-THX: The KEF Ci3160REF-THX is built to the same exacting standards as the REFERENCE speakers. And like all REFERENCE speakers, the Ci3160REF comes with the REFERENCE Build Certificate signed by the craftsman who built it.

Model Ci3160REF-THX
Nominal Impedance
Sensitivity (2.83V/ 1m) 90dB (2.83V/ 1m)
Frequency response (±6dB)
open-backed
40Hz - 28kHz
Frequency range (-10dB) 32Hz - 30kHz
Crossover frequency 350Hz, 2.7kHz
Drive units
LF
MF
HF
2 x 160mm (6.5 in.)
125mm (5.25 in.)
25mm (1 in.) Uni-Q
Recommended Amplifier Power 40 - 350W
Product external dimensions
(H x W x D)
680 x 230 x 105.7 mm
(26.77 x 9.06 x 4.16 in.)
Cut-out dimensions
(H x W)
660 x 209mm (25.98 x 8.23 in.)
Net Weight 13.4 kg (29.54 lbs)
Mounting depth from surface 99mm (3.9 in.)
