KEF CI3160RLTHX Extreme In-Wall THX Ultra2 Speaker

by KEF
SKU KFCI3160RLTHX
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

One Pair of White Cover Plates for C600 Ceiling Speaker Holes

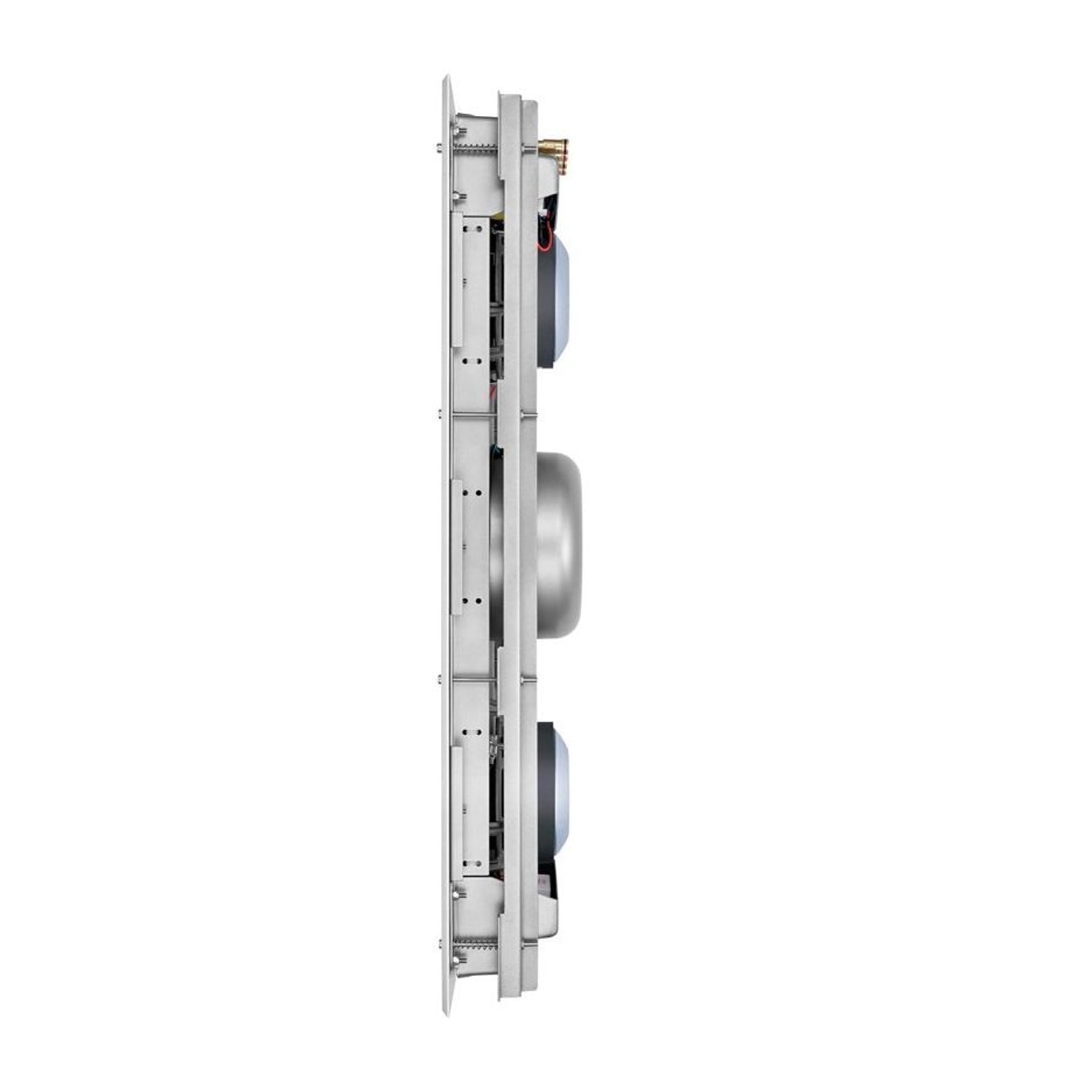

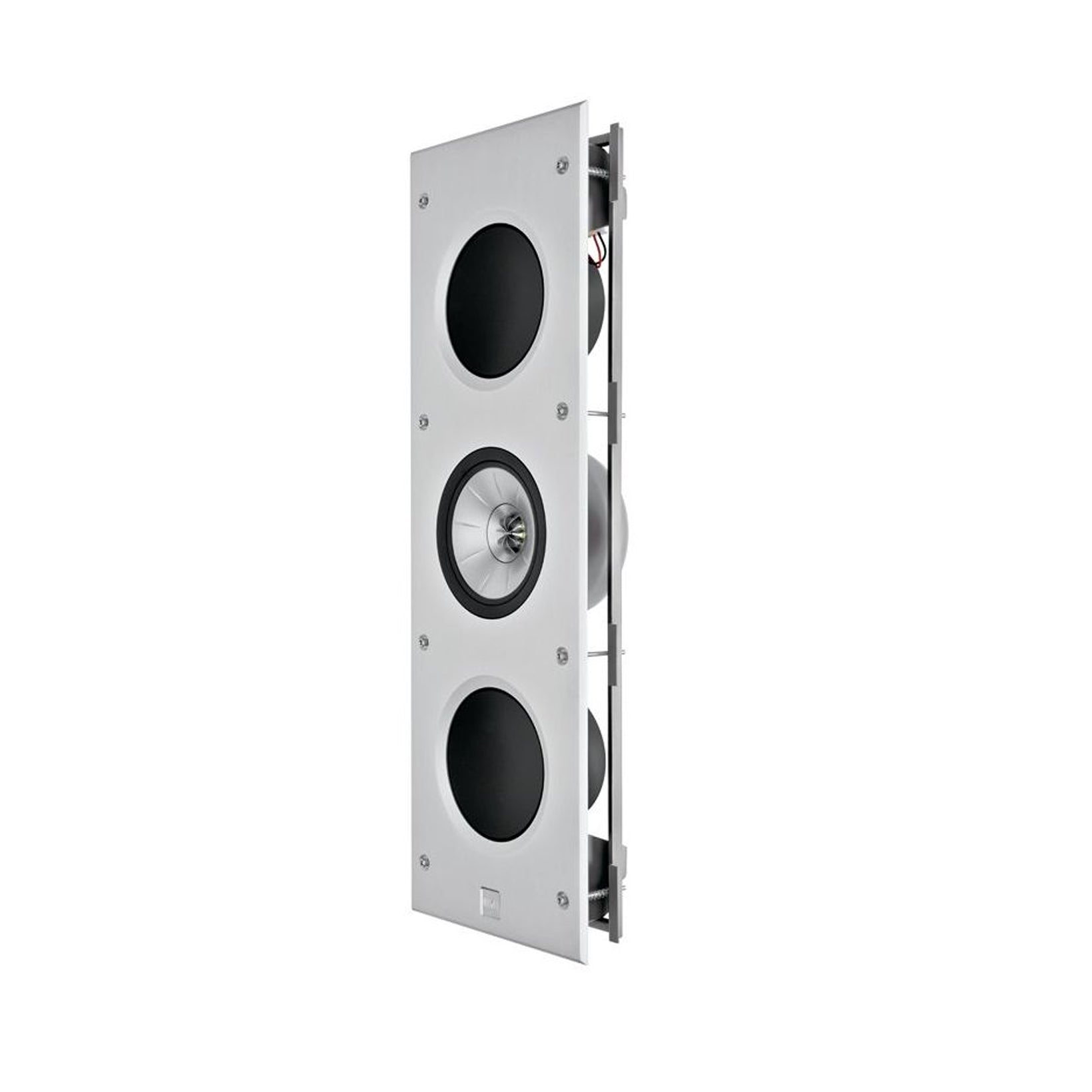

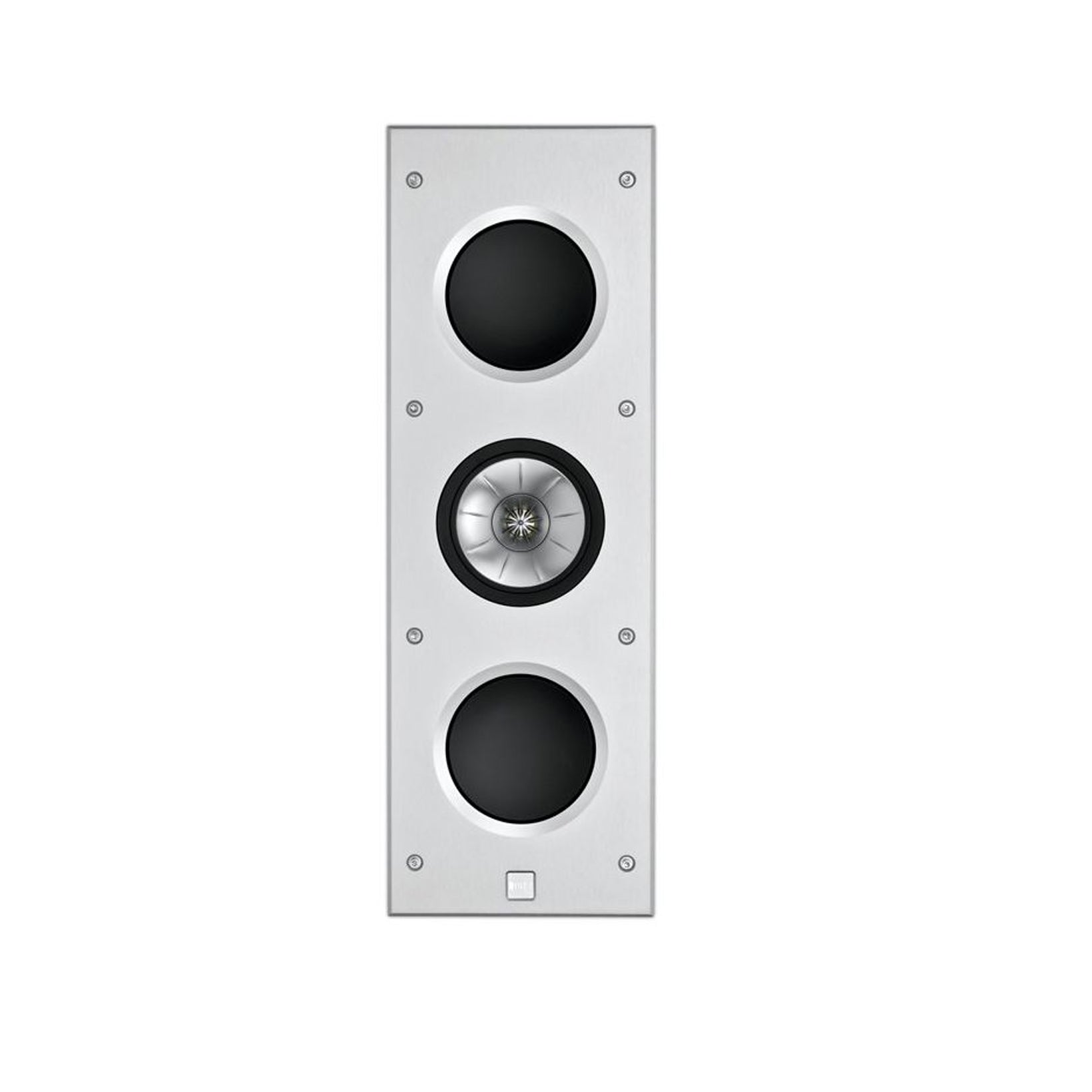

KEF’s Ci3160RL-THX is an in-wall speaker certified to THX ULTRA2 standard featuring a 6.5in. Uni-Q driver array with a pair of 6.5in. MF drivers.

You can position the Ci3160RL-THX as a front or rear side channel speakers, or position horizontally as a center channel.

For the ultimate in custom installed Extreme Home Theatre, the formidable new Ci R Series has the jaw-dropping acoustic capabilities of the classic KEF floorstander it’s named after, with all the drama and emotional intensity of full theatre sound quality.

The Ci R Series consists of an in-ceiling speaker that can be combined with one of two in-wall models, and a sensational new powered subwoofer. As you might expect, its towering performance sets a new standard for custom installed speakers.

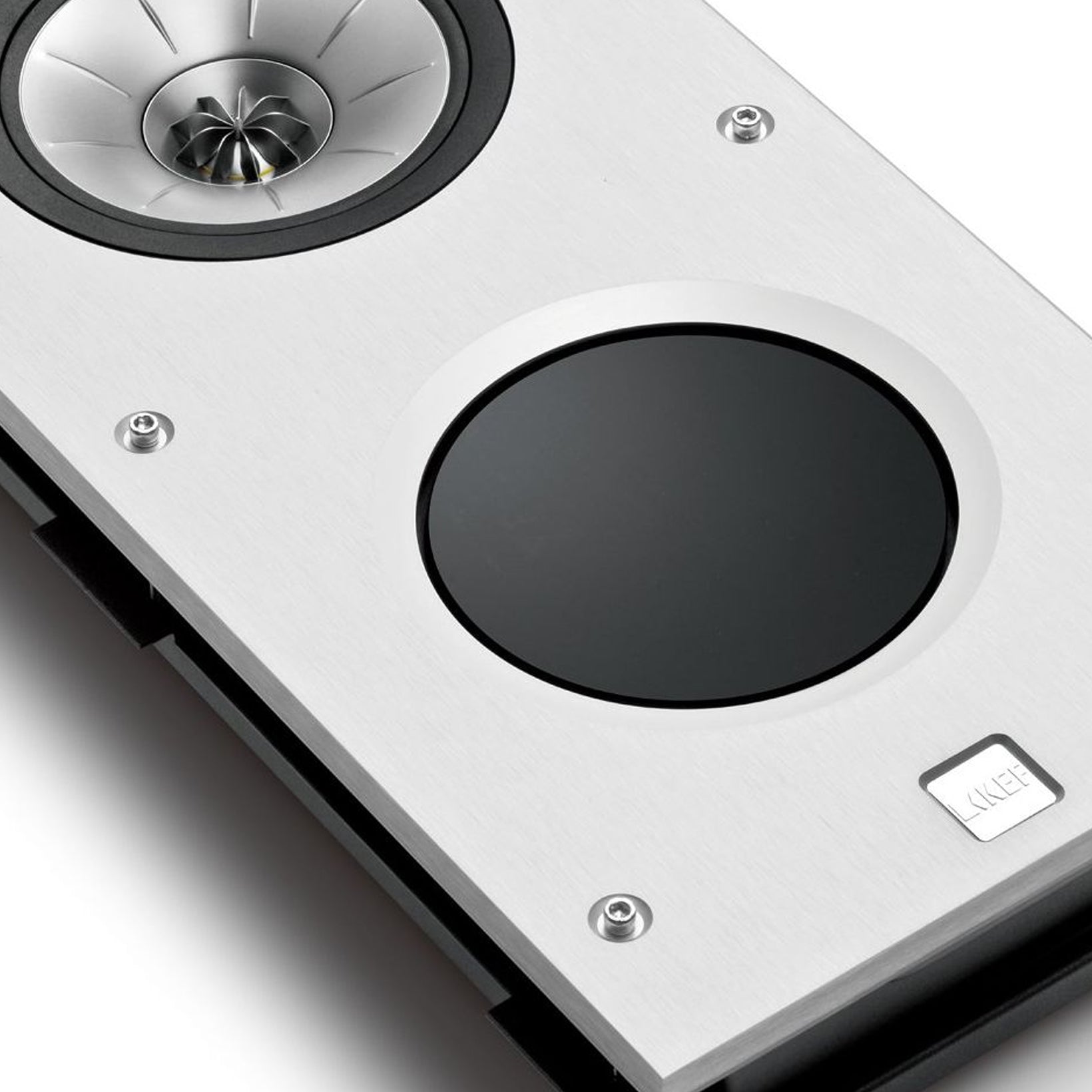

The Ci3160RL-THX is crafted with a massive aluminium baffle to eliminate vibration and is the perfect platform for the 160mm aluminium cone Uni-Q with tangerine waveguide, and four 160mm woofers. Capable of bi-wire and bi-amplifier connections the Ci3160RL-THX delivers on the performance promise of all KEF R Series speakers.

Nominal Impedance
Sensitivity (2.83V/ 1m) 90dB
Frequency response (±6dB)
open-backed
45Hz - 28kHz
Crossover frequency 340Hz, 2.5kHz
Drive units
LF
MF
HF
2 x 160mm (6.5 in.)
160mm (6.5 in.)
25mm (1 in.) Uni-Q
Recommended Amplifier Power 30-180W
Product external dimensions
(H x W x D)
680 x 230 x 105.7 mm
(26.77 x 9.06 x 4.16 in.)
Cut-out dimensions
(H x W)
660 x 209mm
(25.98 x 8.23 in.)
Net Weight 11.7 kg (25.79 lbs)
Mounting depth from surface 99mm (3.9 in.)
