Lutron RR-AUX-REP-WH, RadioRA2, Aux Repeater, White

by Lutron
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

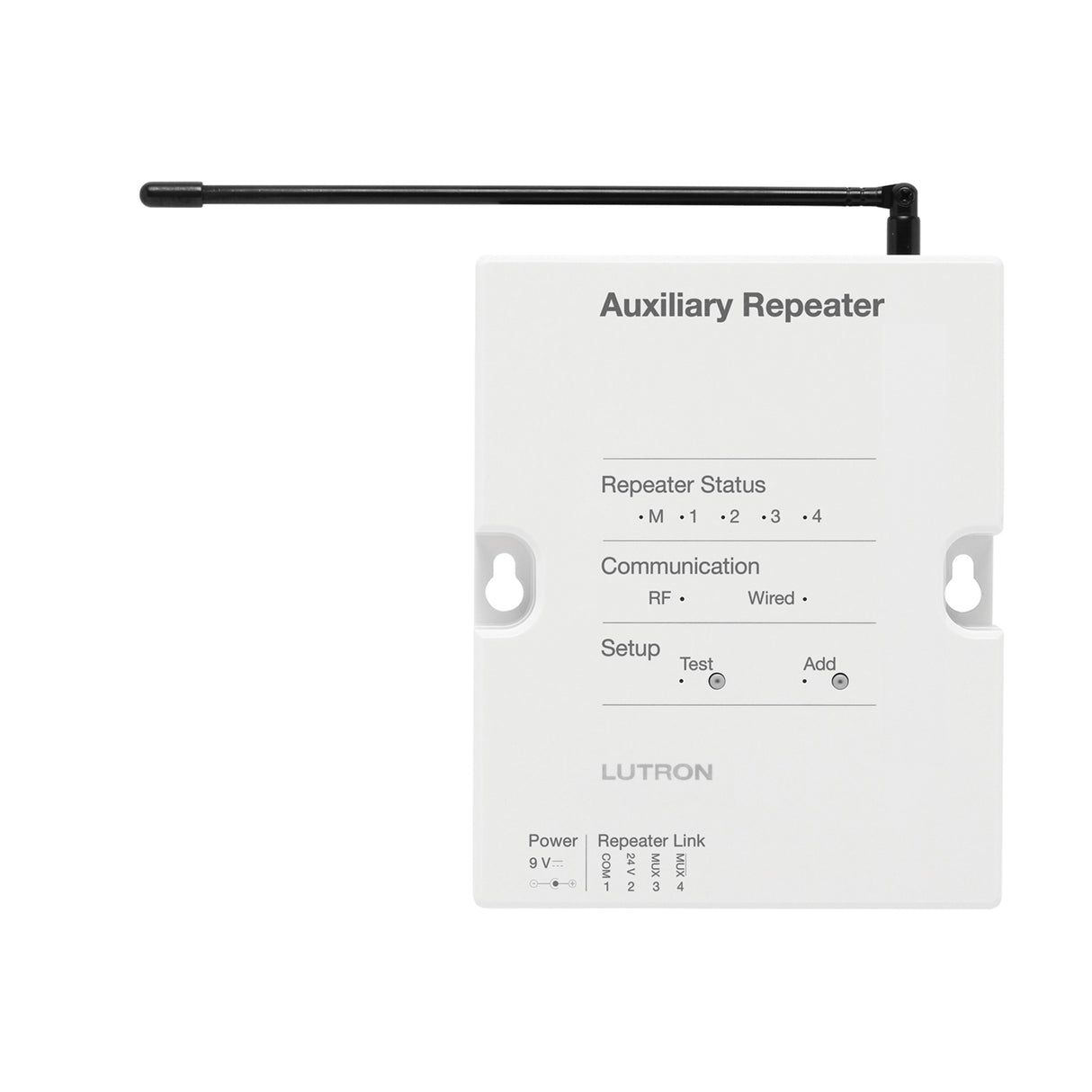

LUTRON RR-AUX-REP-WH Auxiliary White Repeater

RadioRA® 2 Repeaters extend the range of Radio Frequency (RF) signals that are sent between devices. Repeaters ensure error-free communication between system components and prevent interference from neighboring systems.

  • Test button: enters the system diagnostic mode.
  • Can be programmed from a PC.
  • RS485 port to connect to other Repeaters through a wired link (daisy-chain).
  • Main Repeaters allow configuration and integration to the system through Ethernet or RS232 ports
  • System with 2 Main Repeaters must be connected via Ethernet.
  • RadioRA 2 Repeaters extend the range of Radio Frequency (RF) signals that are sent between dimmers, switches, keypads, visor controls, shades / draperies, and other devices
  • Mount Receiver on a wall, ceiling, or level surface using the two #6 (M3) screws provided
  • Repeaters communicate with the system through RF
  • All devices (except remote dimmers / switches) must be located within 30 ft. (9 m) of a Repeater
  • All repeaters must be within 60 ft. (18 m) of another repeater
Repeater Type Auxiliary
Length 1.06"
Width 4.25"
Height 5.25"
Antenna 6.25"
Weight 1lb
Mounting Hole Placement: Width 3.75"
Mounting Hole Placement: Height 2.72"
Frequency 434 MHz
Approval cULus listed; FCC certified; Industry Canada certified; COFETELcertified; ASEP certified; Bermuda Department of Telecommunications type approval; CRCcertified; INDOTEL certified; SUTEL certified
Power  9 V- 300 mA
Ambient Temperature 32 to 104 Deg F
