MINUTEMAN PRO1000RT2U, 1000VA Line Interactive UPS with 8 Outlets

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • 1000VA 700W Simulated Sine Wave UPS
  • 8 x NEMA 5-15R Outlets
  • Surge & Battery Protection
  • Surge Protection Up to 960 Joules
  • 6-10 ms Transfer Time
  • Hot-Swappable Internal Batteries
  • Fax, Modem, Network & Coax Protection
  • 1 x USB Communication Port
  • 2RU Rackmount Compatibility
  • 10' Power Cord

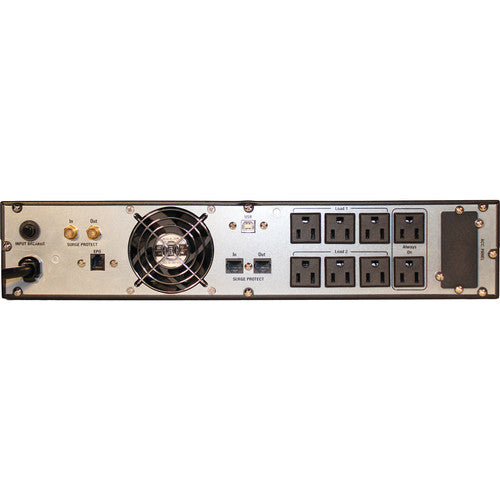

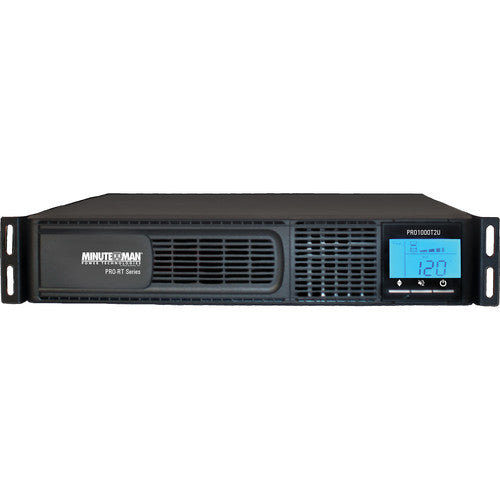

Protect your rackmount system with the PRO1000RT2U 1000VA 700W 8-Outlet Line-Interactive UPS from Minuteman. Designed to keep crucial systems in action, this uninterruptible power supply offers surge protection and back-up battery power via eight NEMA 5-15R outlets. Additionally, a coax input and output extend protection to satellite and cable equipment while RJ45 and RJ11 ports allow users to protect fax, modem, and network data lines. Protecting surges up to 960 joules, the PRO1000RT2U also features a 6-10 ms transfer time, ensuring your connected hardware stays up and running.

In addition to hot-swap support and independent battery bypass for more reliable backup power, the Minuteman PRO1000RT2U offers monitoring options via an integrated LCD panel, as well as via Minuteman SentryHD software, communicating via USB and incorporating a web-based interface for easy management. An optional SNMP card can also be installed, allowing the UPS to be controlled from a Network Management System. Featuring a rackmount design, this UPS fits 2RU server racks, but can also be used on a desktop in a standing tower orientation, or attached to a wall with the correct mounting hardware, available separately. A 10’ power cord provides plenty of reach for optimal placement in your work setup.

Minuteman SentryHD management software supports automatic saving and shutting down of unfinished applications, as well as properly powering down your computer during extended blackouts. This control software also offers monitoring capabilities via a convenient web interface. Monitor input and output voltage and frequencies, UPS and battery mode and status, load capacity, or estimated run times using the convenient LCD panel.

Total Outlets 8 x NEMA 5-15R
Protected Outlets 8 x NEMA 5-15R (Battery and Surge)
Plug Type NEMA 5-15P
USB Charging Ports None
Coax Protection 1-In
Data Line Protection RJ11, RJ45
Communications USB via Type-B
Topology Line Interactive
Transfer Time 6 to 10 ms
Surge Energy Rating 960 Joules
Maximum Wattage 700 W
Nominal Input Voltage 120 VAC
Input Voltage Range 90 to 150 VAC
Input Frequency 60 Hz ± 6 Hz
Nominal Output Voltage 120 VAC
Output Voltage Range 103 to 136 VAC
Output Frequency 60 Hz ± 6 Hz
Load Capacity 1000 VA
Maximum Efficiency 96%
Waveform Sine Wave
Battery Capacity 204 VAh
Chemistry Lead-Acid
Full-Load Runtime 4 Minutes
Half-Load Runtime 14 Minutes
User Replaceable Yes
Replacement Battery BM0073
Hot-Swap Support Yes
