MINUTEMAN PRO1500RT2U, 1500VA 1050W 8-Outlet Line-Interactive UPS

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

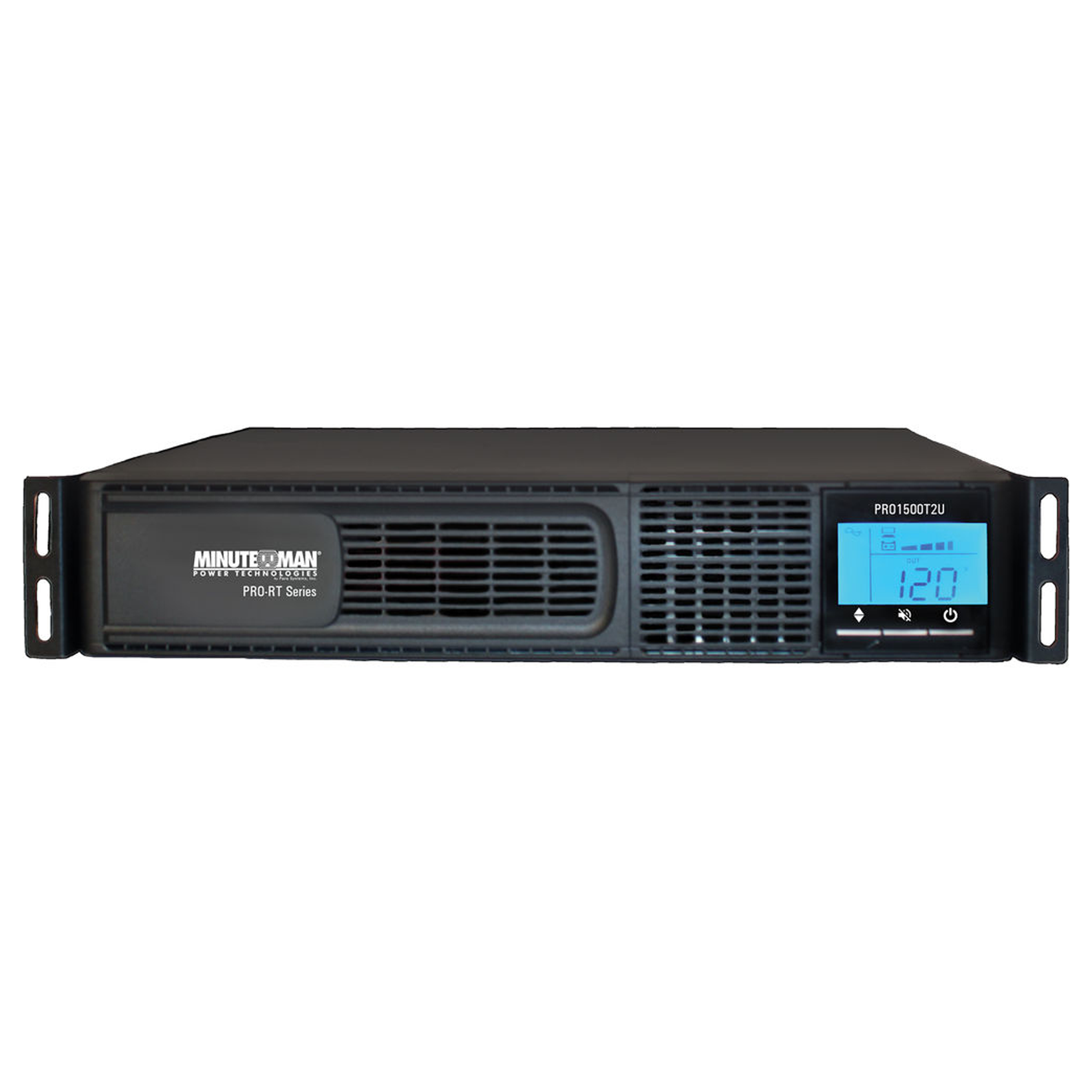

Protect your rackmount system with the PRO1500RT2U 1500VA 1050W 8-Outlet Line-Interactive UPS from Minuteman.

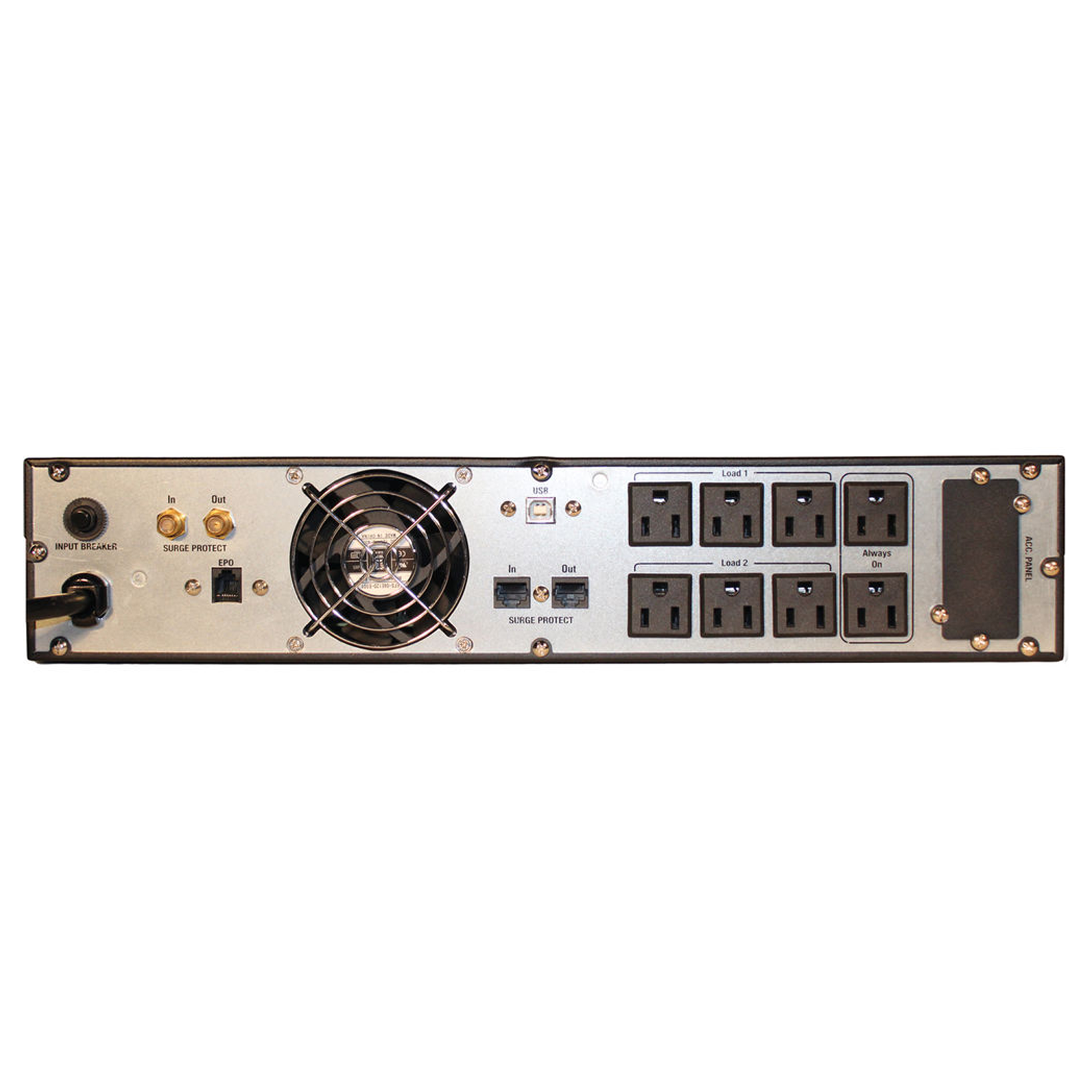

Designed to keep crucial systems in action, this uninterruptible power supply offers surge protection and back-up battery power via eight NEMA 5-15R outlets. Additionally, a coax input and output extend protection to satellite and cable equipment while RJ45 and RJ11 ports allow users to protect fax, modem, and network data lines. Protecting surges up to 960 joules, the PRO1500RT2U also features a 6-10 ms transfer time, ensuring your connected hardware stays up and running.

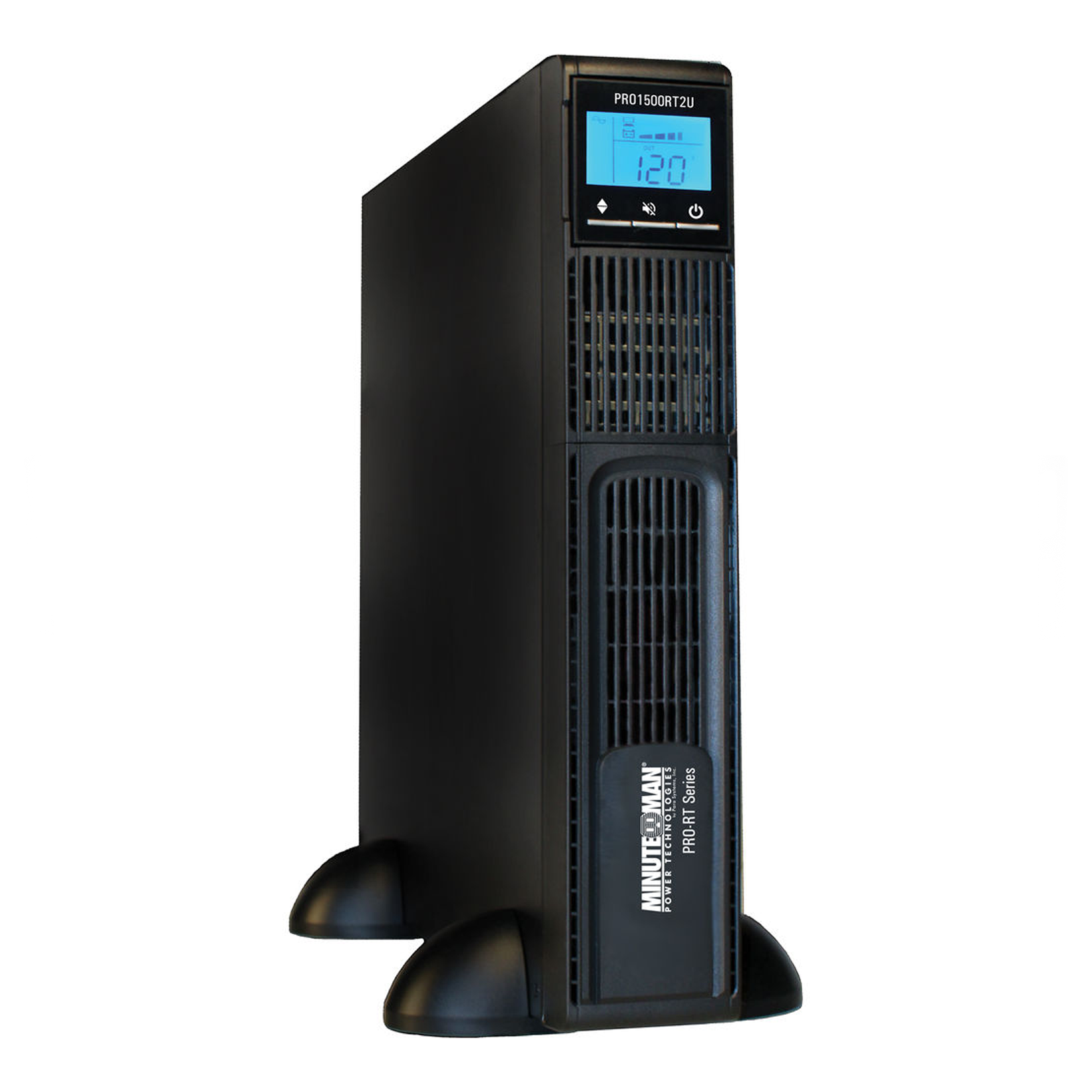

In addition to hot-swap support and independent battery bypass for more reliable backup power, the Minuteman PRO1500RT2U offers monitoring options via an integrated LCD panel, as well as via Minuteman SentryHD software, communicating via USB and incorporating a web-based interface for easy management. An optional SNMP card can also be installed, allowing the UPS to be controlled from a Network Management System. Featuring a rackmount design, this UPS fits 2RU server racks, but can also be used on a desktop in a standing tower orientation, or attached to a wall with the correct mounting hardware, available separately. A 10’ power cord provides plenty of reach for optimal placement in your work setup.

Minuteman SentryHD

Minuteman SentryHD management software supports automatic saving and shutting down of unfinished applications, as well as properly powering down your computer during extended blackouts. This control software also offers monitoring capabilities via a convenient web interface.

LCD Panel

Monitor input and output voltage and frequencies, UPS and battery mode and status, load capacity, or estimated run times using the convenient LCD panel.

  • 1500VA 1050W Simulated Sine Wave UPS
  • 8 x NEMA 5-15R Outlets
  • Surge & Battery Protection
  • Surge Protection Up to 960 Joules
  • 6-10 ms Transfer Time
  • Hot-Swappable Internal Batteries
  • Fax, Modem, Network & Coax Protection
  • 1 x USB Communication Port
  • 2RU Rackmount Compatibility
  • 10' Power Cord
Total Outlets 8 x NEMA 5-15R
Protected Outlets 8 x NEMA 5-15R (Battery and Surge)
Plug Type NEMA 5-15P
USB Charging Ports None
Coax Protection 1-In
Data Line Protection RJ11, RJ45
Communications USB via Type-B
Topology Line Interactive
Transfer Time 6 to 10 ms
Surge Energy Rating 960 Joules
Maximum Wattage 1050 W
Nominal Input Voltage 120 VAC
Input Voltage Range 90 to 150 VAC
Input Frequency 60 Hz ± 6 Hz
Nominal Output Voltage 120 VAC
Output Voltage Range 103 to 136 VAC
Output Frequency 60 Hz ± 6 Hz
Load Capacity 1500 VA
Maximum Efficiency 96%
Waveform Sine Wave
