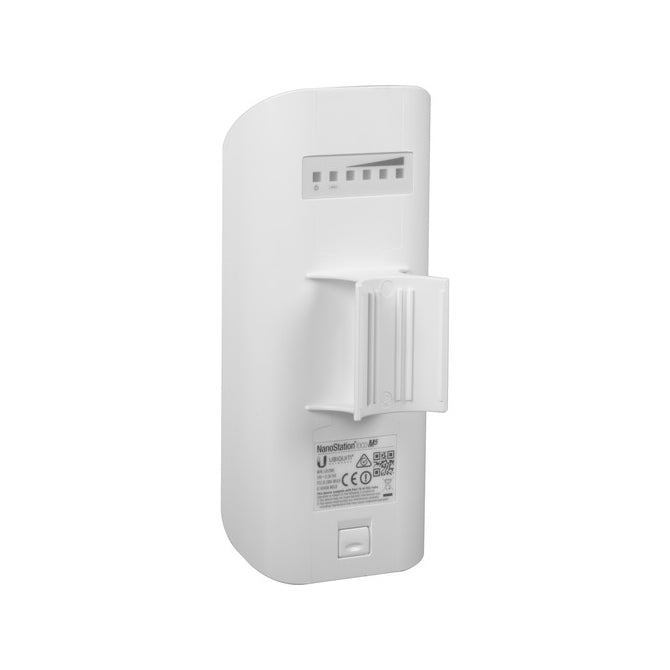

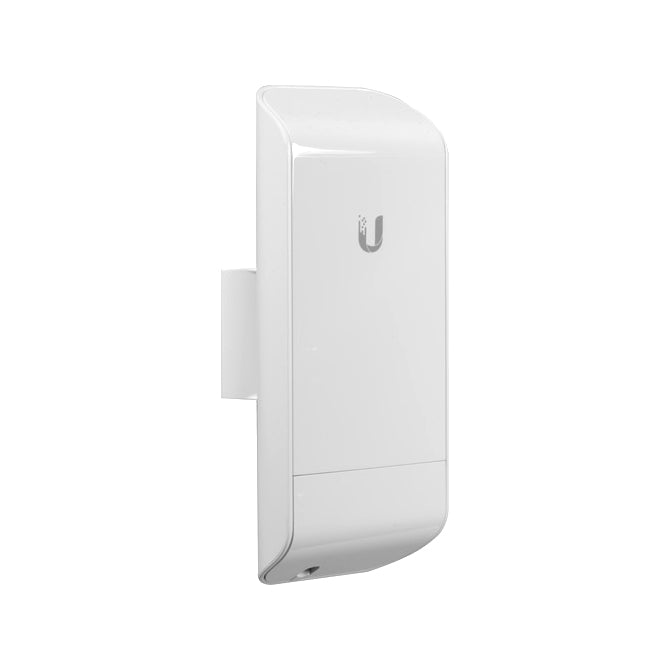

Ubiquiti LOCOM5 NanoStation Outdoor Access Point, White

SKU UBLOCOM5
ID: 12961393541192




This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

NanoStation locoM5 Indoor/Outdoor airMAX CPE

The NanoStation locoM5 Indoor/Outdoor airMAX CPE from Ubiquiti Networks is a cost-effective and reliable solution for high performance. It features up to 10km of range performance, 25+Mb/s of throughput performance, an intuitive AirOS by Ubiquiti. The NanoStation Loco also features broadband wireless CPE technology. NanoStation5 Loco exhibits optimal antenna performance. NanoStation5 Loco maintains 13dBi of dual-polarity antenna gain in a compact form-factor using an efficient and innovative patch array antenna design.

  • Atheros SOC, MIPS 4KC, 180 MHz Processor
  • 16MB SDRAM, 4MB Flash Memory
  • 1 x 10/100 BASE-TX Ethernet Interface
  • 13dBi Antenna
  • Over 16404' Range
  • AirOS Software
  • FCC Part 15.247, IC RS210 Approved
  • RoHS Compliant
Processor Atheros SOC, MIPS 4KC, 180 MHz Processor
Memory 16 MB SDRAM, 4 MB flash
Networking Interface 1 x 10/100 BASE-TX (Cat5, RJ-45) Ethernet interface
Range Outdoor (BaseStation Antenna Dependent): Over 16404' (5000 m)
Gain 13 dBi antenna
Polarization Multi-polarized
Polarization Selection Software controlled
3 dB Beamwidth Azimuth 45°
Survival Wind Speed 185 km/hour
VSWR 1.4:1.0
Front to Back Ratio 30 dB+
3 dB Beamwidth Elevation 18°
Power Supply 12 V, 1 A (12 W) (power supply and injector included)
Power Method Passive Power over Ethernet (pairs 4, 5+, 7, 8 return)
Operating Temperature -4 to +158°F (-20 to +70°C)
Operating Humidity 5 to 95% (condensing)
Compliance RoHS
Approvals FCC Part 15.247, IC RS210
Shock and Vibration ETSI300-019-1.4
Mounting Pole mounting kit (included)
Enclosure Material Outdoor UV stabilized plastic
Package Weight 1.45 lb
Box Dimensions (LxWxH) 6.4 x 3.1 x 1.2"
