Panamax  |  SKU: PNMD2C

Panamax MD-C, 2 OUTLET SURGE / COAX PROTECTOR(6)

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Panamax MD-C, 2 OUTLET SURGE / COAX PROTECTOR(6) is backordered and will ship as soon as it is back in stock.

Loading location-specific inventory...

Description

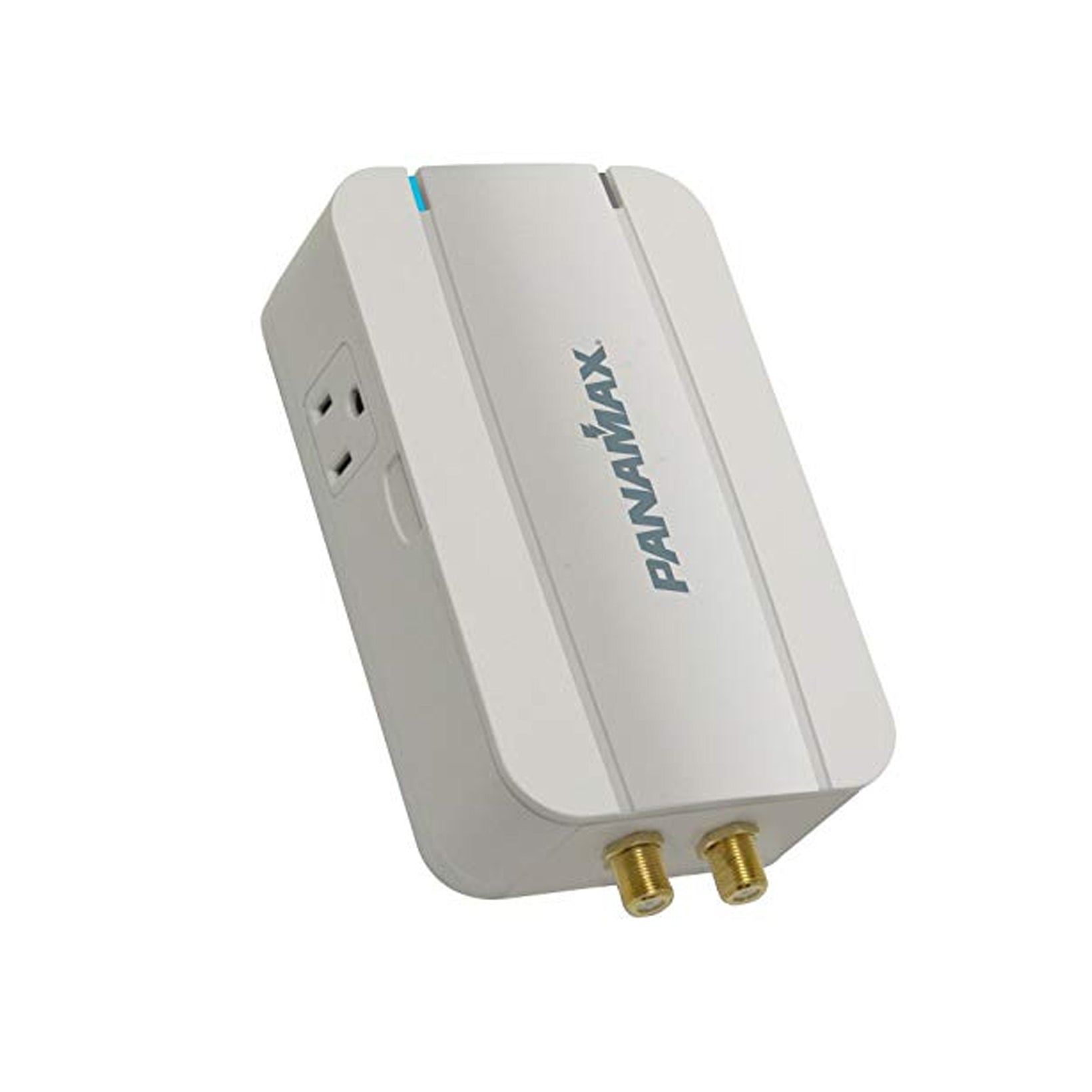

Panamax MD2-C - 2 Outlet Direct Plug-In Surge Protector

Exclusive Protect or Disconnect™ Circuitry

Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

Features
  • EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.
  • Protect-or-Disconnect™ Circuitry
  • Paintable cover ensures seamless fit with any décor.
  • Two Diagnostic Lights (LED) Power On/Protection OK and Line Fault.
  • Thin Profile - Only 1.5 inches deep.
  • Convenient display feature; turn cover around to hide diagnostic lights.
Specs
  • FamilyDirect Plug Ins
  • Line Voltage120 (Volts)
  • Number of Outlets2
  • Outlet DescriptionsBoth outlets filtered and surge protected
  • ComplianceC-UL (UL standard #1449)
  • USB ChargingN/A
  • Low Voltage TriggerN/A
  • AC Power CordN/A
  • Dimensions3.25" W X 1.625" D X 5.25" H
  • Weight0.65 lbs
AC Protection
  • AC Protection TechnologyProtect or Disconnect
    L-N, L-G, N-G Protection Modes
    Thermal Fusing
  • Undervoltage ShutoffN/A
  • Over-Voltage ShutoffN/A
  • Maximum Current Rating15 (Amps)
  • Initial Clamping Level200V Peak
Filtration
  • Filtration TechnologyRFI/EMI Filtration
  • Filtration Rating50 dB @ 100 kHz - 1 MHz
  • Signal Line ProtectionNo
Shipping Info
  • Length4.7 (Inches)
  • Width2.8 (Inches)
  • Height5.9 (Inches)
  • Weight1.04 (Lbs)
