Panamax  |  SKU: PNM4EX

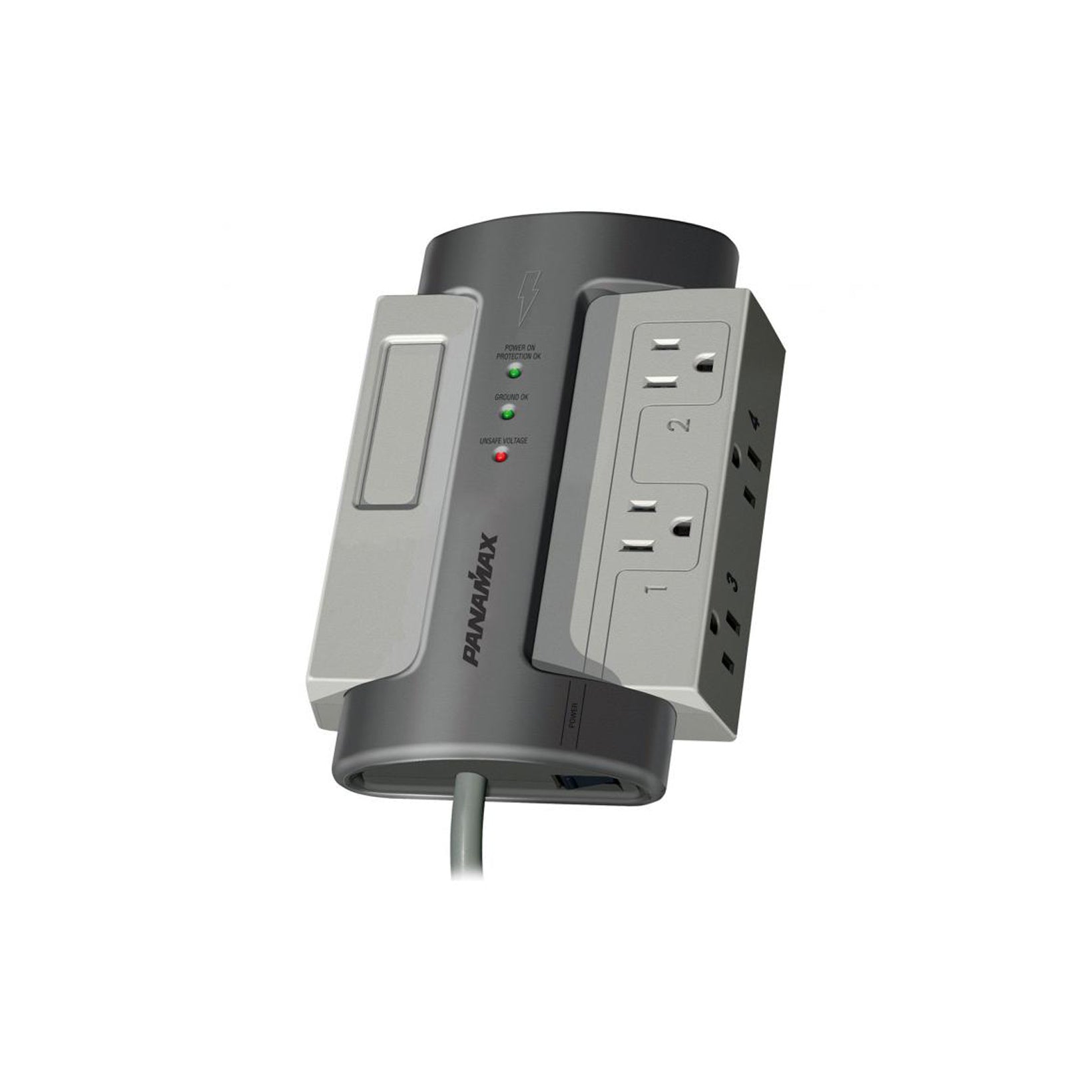

Panamax M4-EX, 8 Feet 4 Outlets AC Conditioned Surge Suppressor

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Loading location-specific inventory...

Description

Panamax M4-EX -4-Outlet Max with Surge Protection and RFI/EMI Noise Filtration

Noise Filtration/Surge Protection for All Home/Office Equipment

  • Four AC Outlets with Transformer Spacing
  • Accepts Add-on Signal Line Modules to Accommodate System Expansion
Features
  • Accepts add-on signal line modules to accommodate system expansion
  • Protect or Disconnectâ„¢ Circuitry safeguards equipment against all surges
  • EMI/RFI filtration reduces unwanted interference and noise
  • Features Protection OK, Ground OK, and Line Fault diagnostic lights
  • Plugs directly into the wall using a right-angle offset plug that has an 8ft cord
  • SurgeGate Plusâ„¢ circuitry protects against prolonged brownouts as well as over-voltage
  • Automatic Voltage Monitoringâ„¢
  • Catastrophic surge circuit opens automatically to prevent damage if the surge exceeds protection capability
  • Thermal fuse shuts off power in case of a period of over voltage occurs
  • UL 1449 Suppression Rating: 330V
  • Thermal Fusing: Yes
  • Single Pulse Energy Dissipation: 1650 Joules
  • Response Time: less than 1 nanosecond
  • Protection Modes: L-N, L-G, N-G
  • Protect or Disconnectâ„¢ Circuitry: Yes
  • Peak Impulse Current: 52,000 Amps
  • Patented Power Management Circuit: Yes
  • Maximum Current Rating: 15 A (1800W)
  • Line Voltage: 120VAC, 50/60Hz
  • Initial Clamping Level: 200V Peak, 141V RMS
  • EMI/RFI Noise Filtration: 50 dB (100 KHz - 1MHz)
  • Auto-resetting Under-voltage shutoff: 90V ± 6V
  • Auto-resetting Over-voltage shutoff: 144V ± 8V
Specs
Number of Power Outlets 4
Surge Energy Rating (Joules) 1650 joules
RJ45 Phone & Network Ports No
Coaxial Surge Protection No
Width (inches) 5
Height (inches) 1-3/4
Depth (inches) 8
Weight (pounds) 3
