Panamax M4315-PRO , 15A BlueBOLT Power Conditioner, 8 Individually Controlled Outlets, 8 Ft Cord

by Panamax
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

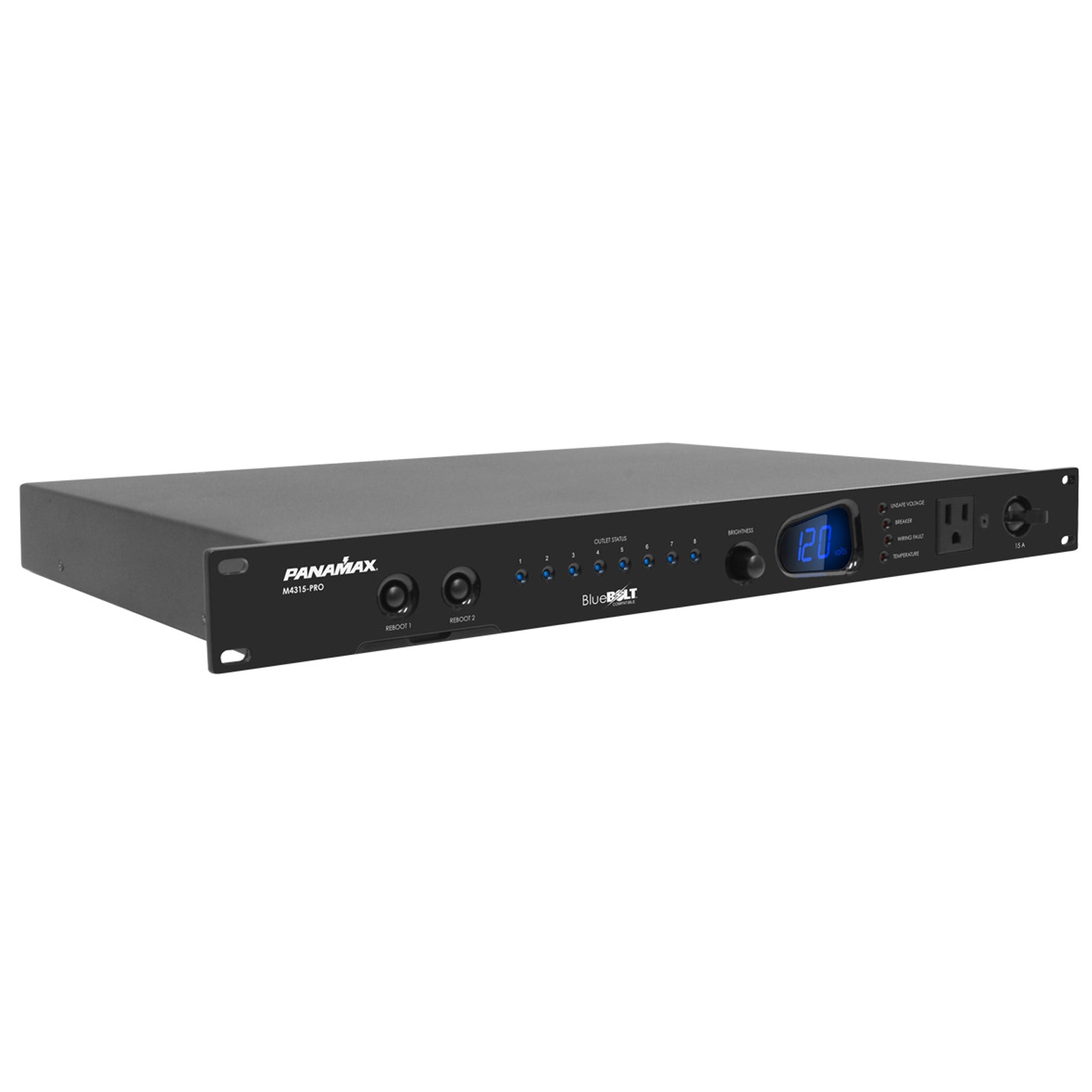

Panamax M4315-PRO Power Management with Control System

The M4315-PRO Power Management with Control System from Panamax is a rack-mountable, power management system that features Panamax's AVM (Automatic Voltage Monitoring) circuit and Linear Filtering Technology (LiFT) to provide AC protection and purification.

The included BlueBOLT-CV1 provides secure, hosted IP system control and monitoring for the M4315-PRO.

Power Management with Control System Interactive Functionality.

  • 15 Amp Capacity M4315-PRO

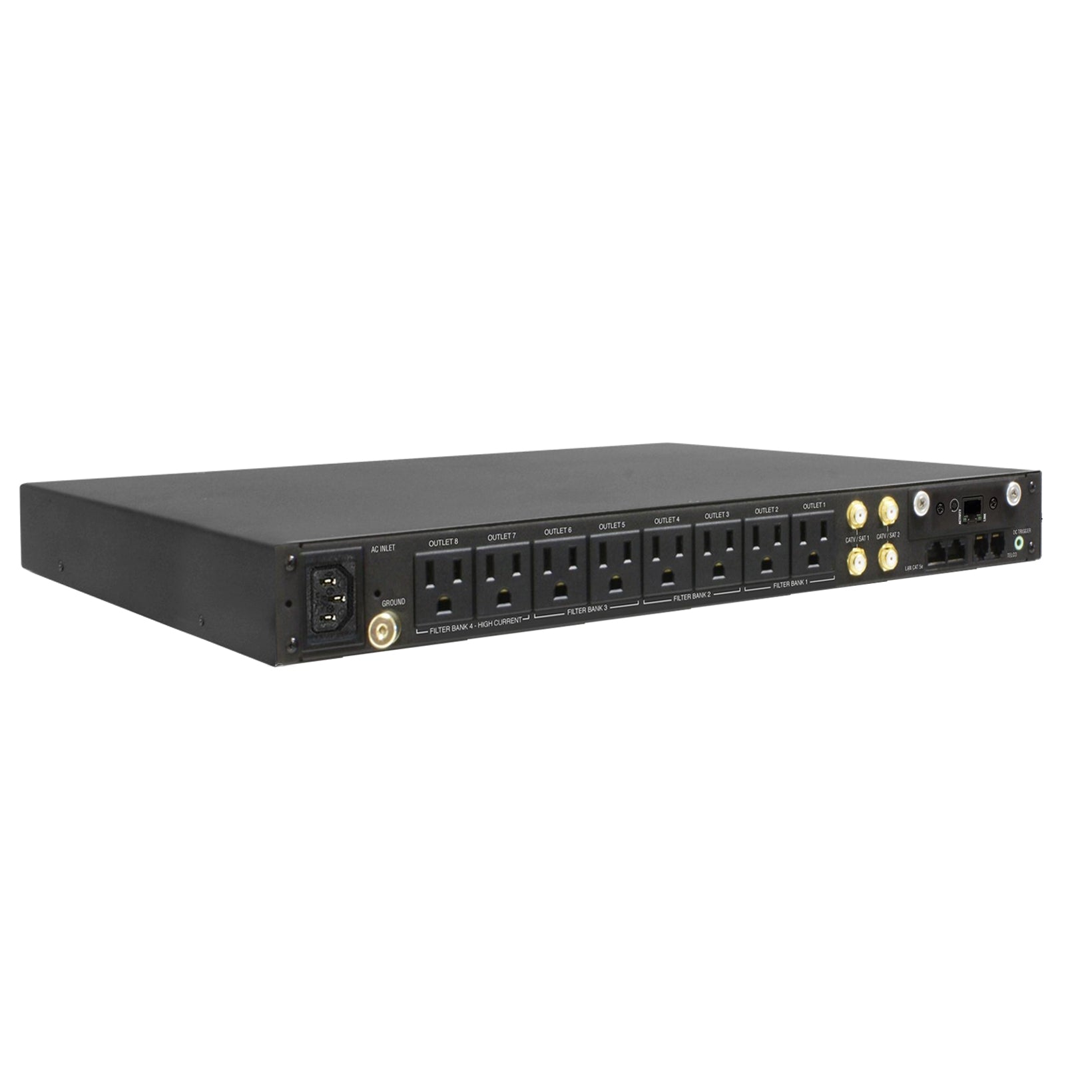

  • 8 Individually Controllable Rear Panel Outlets
  • Fully Programmable
  • TCP/IP (BlueBOLTâ„¢) Installed
  • RS-232 Card (Included, not installed)
  • Linear Filtration with 3 Isolated LiFT Filter Banks, 76db (5 kHz - 250 kHz), 46 db (250 kHz - 1 MHz)
  • One Isolated Filter Bank for High Current Devices, 60db (5 kHz - 450 kHz), 46 db (450 kHz - 1 MHz)
  • Front Panel Circuit Breaker
  • Removable Front Rack Ears
  • 12 Volt Input Triggering
  • Detachable 10 ft. Power Cord
  • AVM & Protect-or-Disconnect Circuitry
Isolated Filter Banks 2
Voltage Regulation No
Outlets 19
Max Total Current 15A, 1800W
Maximun energy Dissipation 2700J
Powerline Network Compatible Yes
Line Voltage 120VAC, 60 Hz
Width (inches) 17
Height (inches) 1-1/8
Depth (inches) 12-3/4
Weight (pounds) 16.8
